Eaton

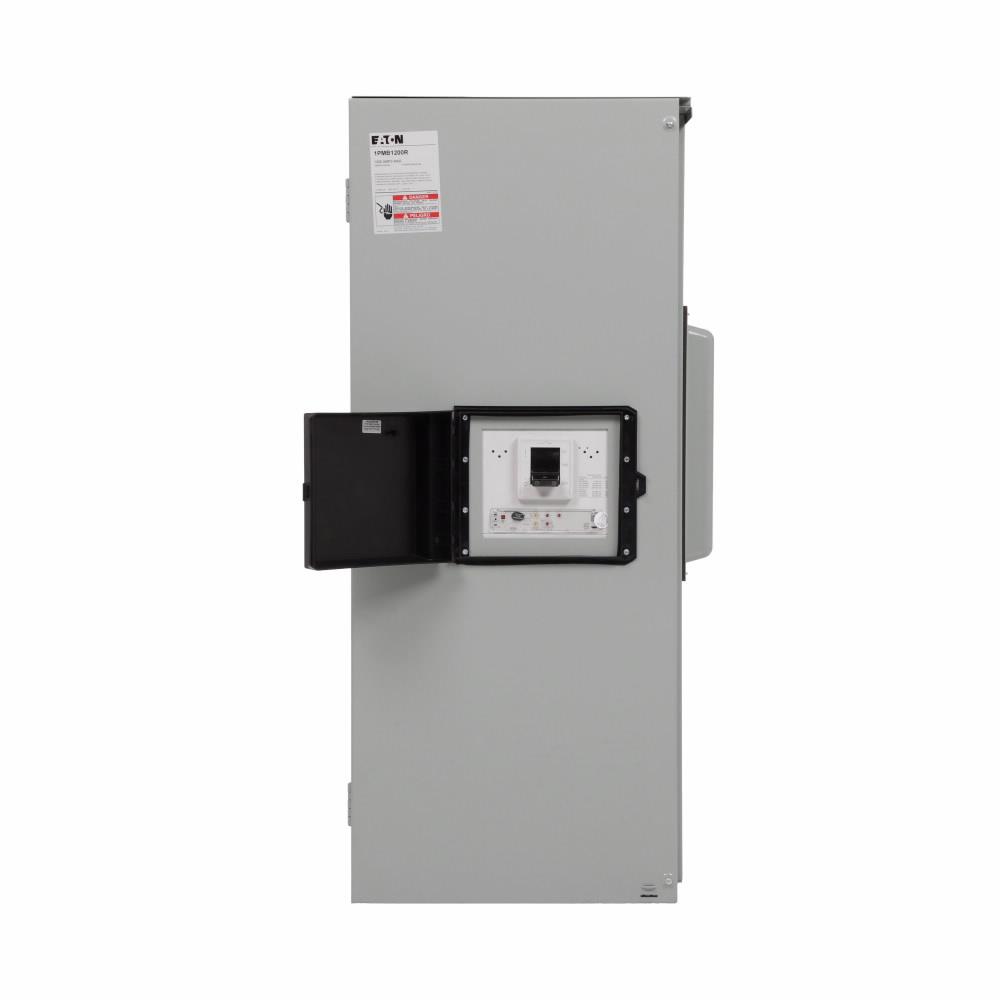

3PMB1200R CH 1200A MCB METERING MAIN INCLUDES ARMS

Mouse over image to zoom, click to enlarge

  • 3PMB1200R CH 1200A MCB METERING MAIN INCLUDES ARMS
  • 3PMB1200R CH 1200A MCB METERING MAIN INCLUDES ARMS

Description: EATON, 3PMB1200R, Main Circuit Breaker, Service Module, Series: PMB, 120 to 208 V, 1200 A, 3 ph, 4 Wire Terminal, NEMA 3R Enclosure, 15.25 in H x 22.54 in W x 14.01 in D Dimensions

Manufacturer PN: 3PMB1200R

UPC:  78668941293

Kendall Electric Inc PN: 4755167

Invoice Description:

3PMB1200R CH 1200A MCB METERING MAIN INCLUDES ARMS


SPEC SHEET

▸ See All in Meter Socket Circuit Breaker Combination


How Can We Make This Page Better?

EATON 3PMB1200R PMB Service Module Main Circuit Breaker, 120 to 208 V, 1200 A, 3 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's main service modules are part of Gangable Metering, which consists of a main service module used in conjunction with meter stacks to make a custom metering lineup. Gangable metering is used in large condominiums, strip malls or other applications where more than six units are metered.
EATON, 3PMB1200R, Main Circuit Breaker, Service Module, Series: PMB, 120 to 208 V, 1200 A, 3 ph, 4 Wire Terminal, NEMA 3R Enclosure, 15.25 in H x 22.54 in W x 14.01 in D Dimensions

Specifications

 Amperage Rating 1200 A
 Application For Electrical Assemblies, Panels and EOEMs
 Brand Name EATON
 Dimensions 15.25 in H x 22.54 in W x 14.01 in D
 Enclosure NEMA 3R
 Manufacturer Part Number 3PMB1200R
 Phase 3
 Series PMB
 Terminal Type 4 Wire
 Type Service Module
 Voltage Rating 120 to 208 V

Features

▪ Power Defense breaker with secondary injection testing capability provides savings
▪ Service entrance meter mains with surge provide ARMS as standard product offering for 1000 A and above
▪ Knockouts provided in bottom endwall of enclosures, which saves time and money on installation
▪ Metering modules may be bolted to one or both sides of the main device, which allows flexibility in installation
▪ Eaton's gangable metering provides flexibility and customization for light commercial applications

Resources

 Catalog Page
 Product Data Sheet
