Eaton
3MTB600R C-H Main Service Module, Main Terminal Box

Mouse over image to zoom, click to enlarge

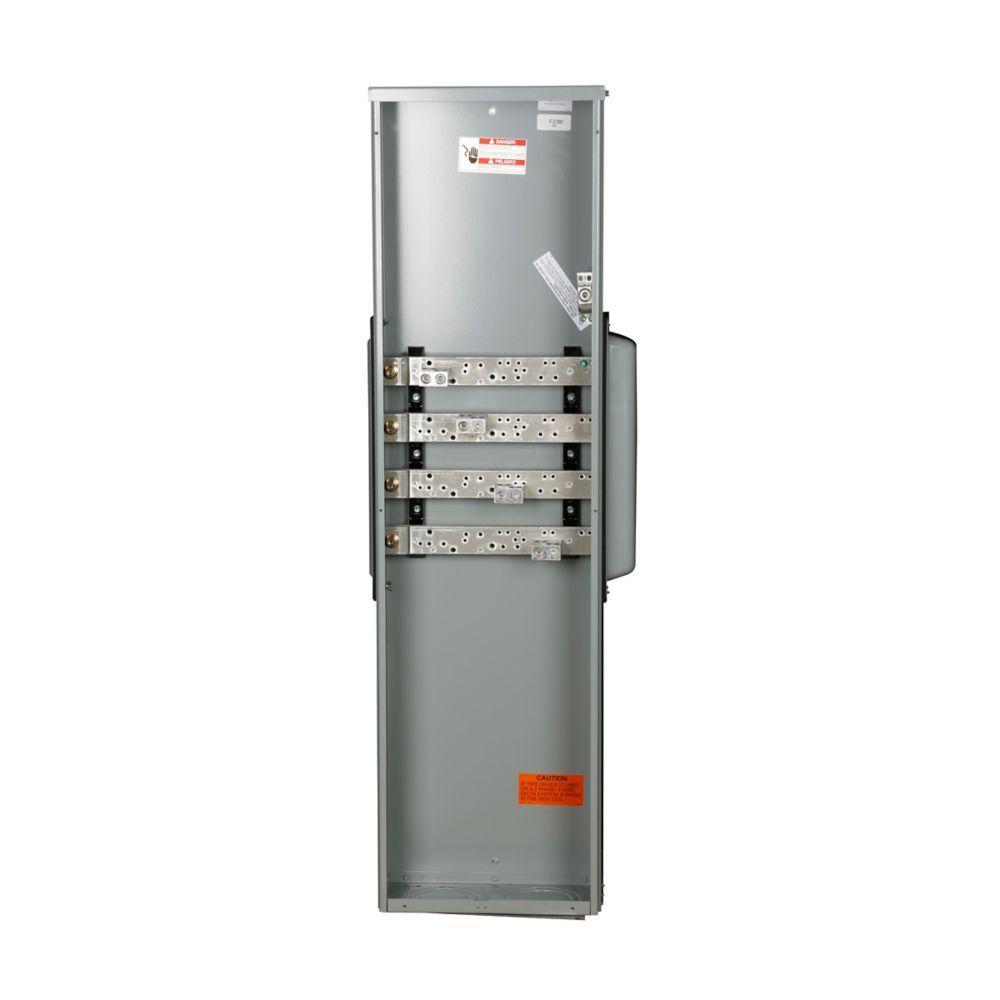

  • 3MTB600R C-H Main Service Module, Main Terminal Box
  • 3MTB600R C-H Main Service Module, Main Terminal Box

Description: EATON Main Terminal Box, 4-Wire Standard, 120/208 V AC, 600 A, 3 Phase , Bottom/Overhead/Top/Underground Feed, NEMA 3R, (2) 250 to 500 kcmil Wire, 100 kA Short Circuit Current, Line Side Lug, 6-1/2 in L x 13-1/2 in W x 53-15/16 in H

Manufacturer PN: 3MTB600R

UPC:  78684905309

Kendall Electric Inc PN: 2272691

Invoice Description:

3MTB600R C-H Main Service Module, Main Terminal Box


SPEC SHEET

▸ See All in Main Lug Terminal Box Modules


How Can We Make This Page Better?

EATON 3MTB600R 4-Wire Standard Main Terminal Box, 120/208 V AC, 600 A, 3 Phase , Bottom/Overhead/Top/Underground Feed, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's main service modules are part of Gangable Metering, which consists of a main service module used in conjunction with meter stacks to make a custom metering lineup. Gangable metering is used in large condominiums, strip malls or other applications where more than six units are metered.
EATON Main Terminal Box, 4-Wire Standard, 120/208 V AC, 600 A, 3 Phase , Bottom/Overhead/Top/Underground Feed, NEMA 3R, (2) 250 to 500 kcmil Wire, 100 kA Short Circuit Current, Line Side Lug, 6-1/2 in L x 13-1/2 in W x 53-15/16 in H

Specifications

 Amperage Rating 600 A
 Application Power Distribution, Indoor/Outdoor, Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Connection Type Line Side Lug
 Dimensions 6-1/2 in L x 13-1/2 in W x 53-15/16 in H
 Enclosure NEMA 3R
 Feed Type Bottom/Overhead/Top/Underground
 Includes Phase and Neutral Lug
 Manufacturer Part Number 3MTB600R
 PART NUMBER KEYWORDS 3MTB600R ; 7460134 ; 786849053093 ; 78684905309 ; 00786849053093
 Phase 3
 Short Circuit Current Rating 100 kA
 Standards/Approvals UL Listed
 Type 4-Wire Standard
 Voltage Rating 120/208 V AC

Features

▪ Short circuit rating is the least AIC rating of any installed main tenant breaker to a maximum of 100000 RMS symmetrical amperes
▪ Aluminum bus housing

Resources

 Catalog Page
 Product Data Sheet
