Eaton

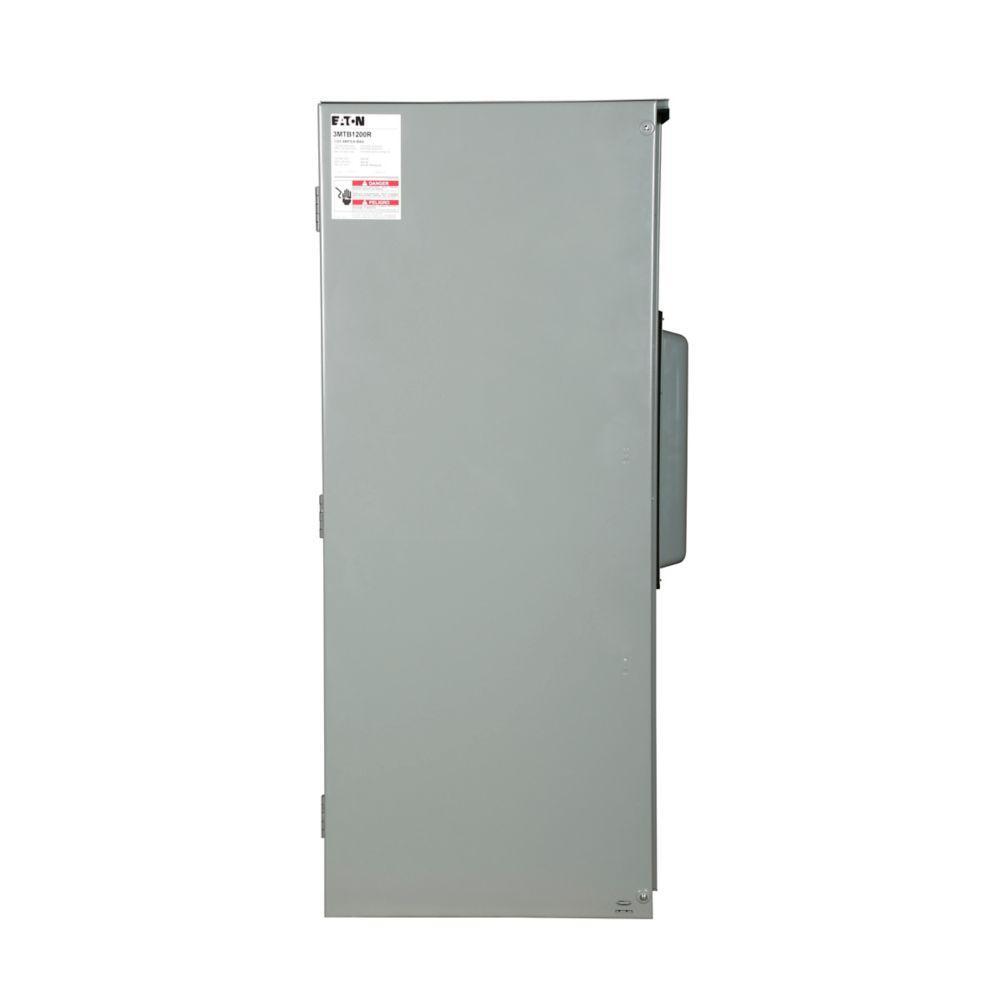

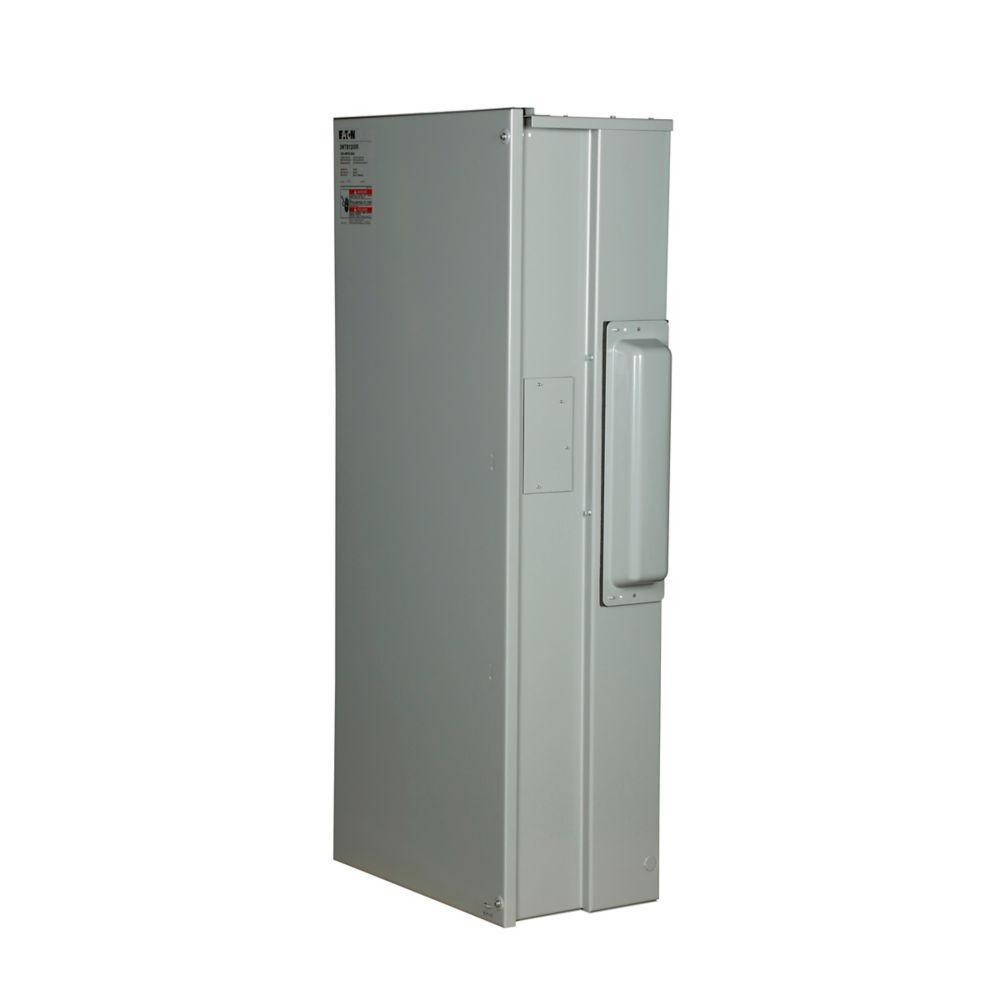

3MTB1200RCRIS CH 1200A MAIN TERMINAL BOX WITH FEED THROUGH LUGS / RISER BOX

Mouse over image to zoom, click to enlarge

Description: EATON Main Terminal Box, 4-Wire Riser Standard, 120/208 V AC, 1200 A, 3 Phase, Bottom/Overhead/Top/Underground Feed, NEMA 3R, 2 AWG to 750 kcmil Wire, 100 kA Short Circuit Current, Line/Load Side Lug, Copper, 24.48 in L x 11.646 in W x 60.575 in H

Manufacturer PN: 3MTB1200RCRIS

UPC: 78668563280

Kendall Electric Inc PN: 4348282

Invoice Description:

3MTB1200RCRIS CH 1200A MAIN TERMINAL BOX WITH FEED THROUGH LUGS / RISER BOX

SPEC SHEET

▸ See All in Main Lug Terminal Box Modules

How Can We Make This Page Better?

EATON 3MTB1200RCRIS 4-Wire Riser Standard Main Terminal Box With Offset Lug, 120/208 V AC, 1200 A, 3 Phase, Bottom/Overhead/Top/Underground Feed, NEMA 3R Enclosure

Note: Lead times are estimates only

Description Specifications Resources

Description

Eaton's main service modules are part of Gangable Metering, which consists of a main service module used in conjunction with meter stacks to make a custom metering lineup. Gangable metering is used in large condominiums, strip malls or other applications where more than six units are metered.

EATON Main Terminal Box, 4-Wire Riser Standard, 120/208 V AC, 1200 A, 3 Phase, Bottom/Overhead/Top/Underground Feed, NEMA 3R, 2 AWG to 750 kcmil Wire, 100 kA Short Circuit Current, Line/Load Side Lug, Copper, 24.48 in L x 11.646 in W x 60.575 in H

Specifications

Amperage Rating	1200 A
Application	Electrical Assemblies, Panels, EOEMs, Homes, Dormitories, Public Housing Complexes and Apartments, Residential and Light Commercial Applications
Brand Name	EATON
Connection Type	Line/Load Side Lug
Dimensions	24.48 in L x 11.646 in W x 60.575 in H
Enclosure	NEMA 3R
Feed Type	Bottom/Overhead/Top/Underground
Manufacturer Part Number	3MTB1200RCRIS
Material	Copper
PART NUMBER KEYWORDS	3MTB1200RCRIS ; 11963315 ; 786685632803 ; 78668563280 ; 00786685632803
Phase	3
Short Circuit Current Rating	100 kA
Standards/Approvals	UL Listed
Type	4-Wire Riser Standard
Voltage Rating	120/208 V AC
