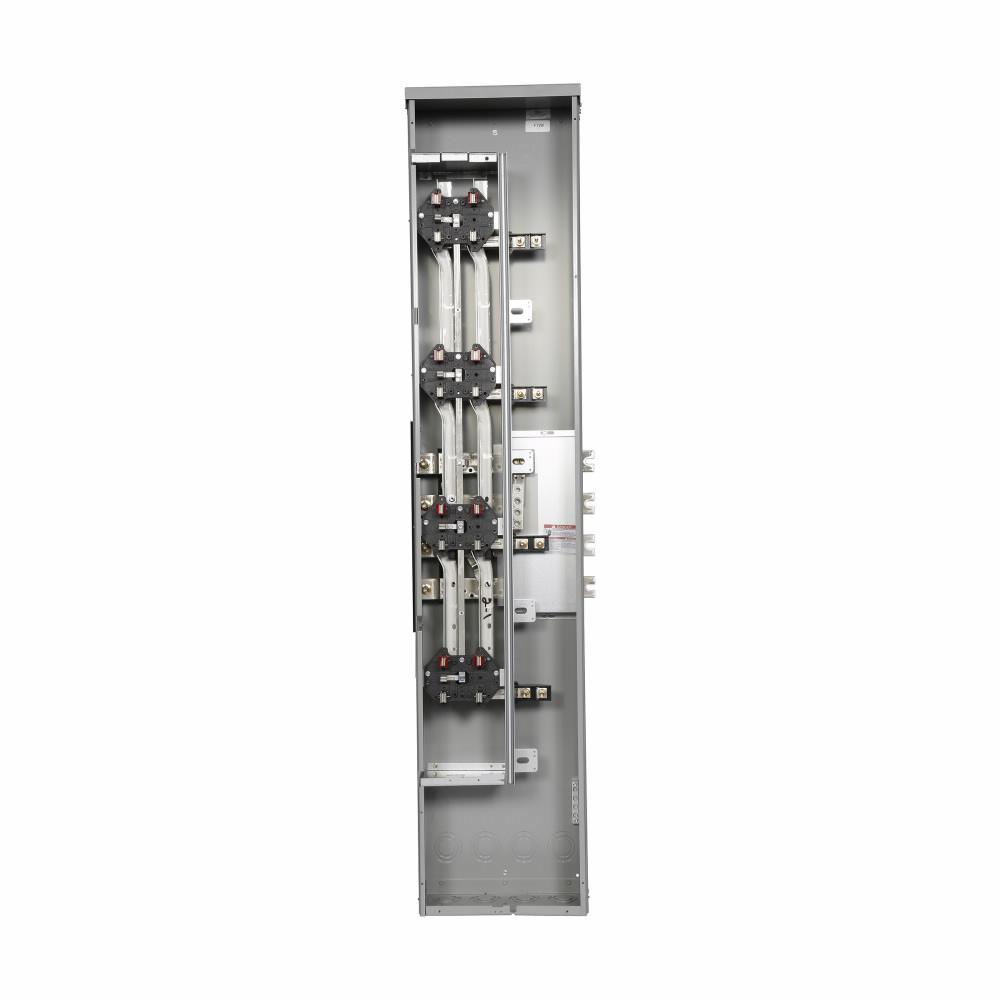

| ▪ Mechanically and electrically built to bolt up with main service modules and commercial modular metering stacks |
| ▪ All 3-phases horizontal bus modules have 4-wire cross bus, connected A-B phase to vertical bus, readily reconnectable for phase balance on installation |

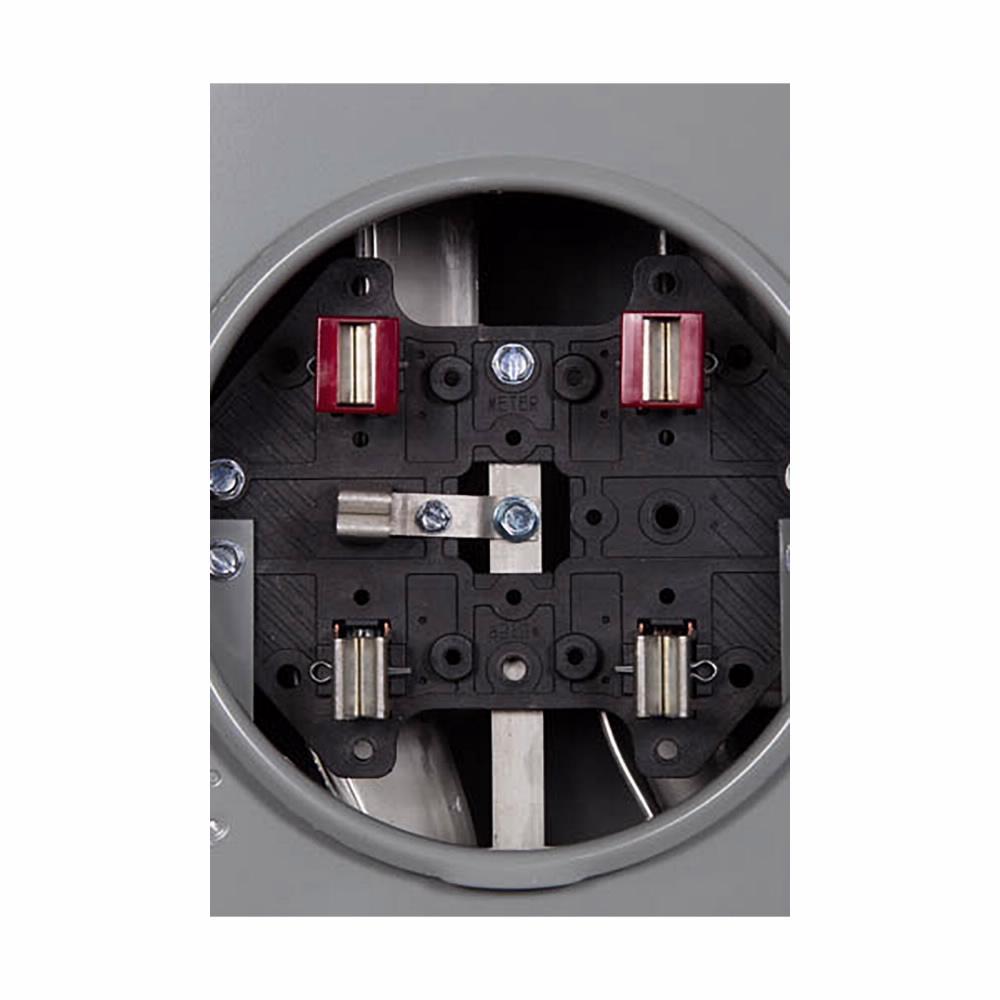

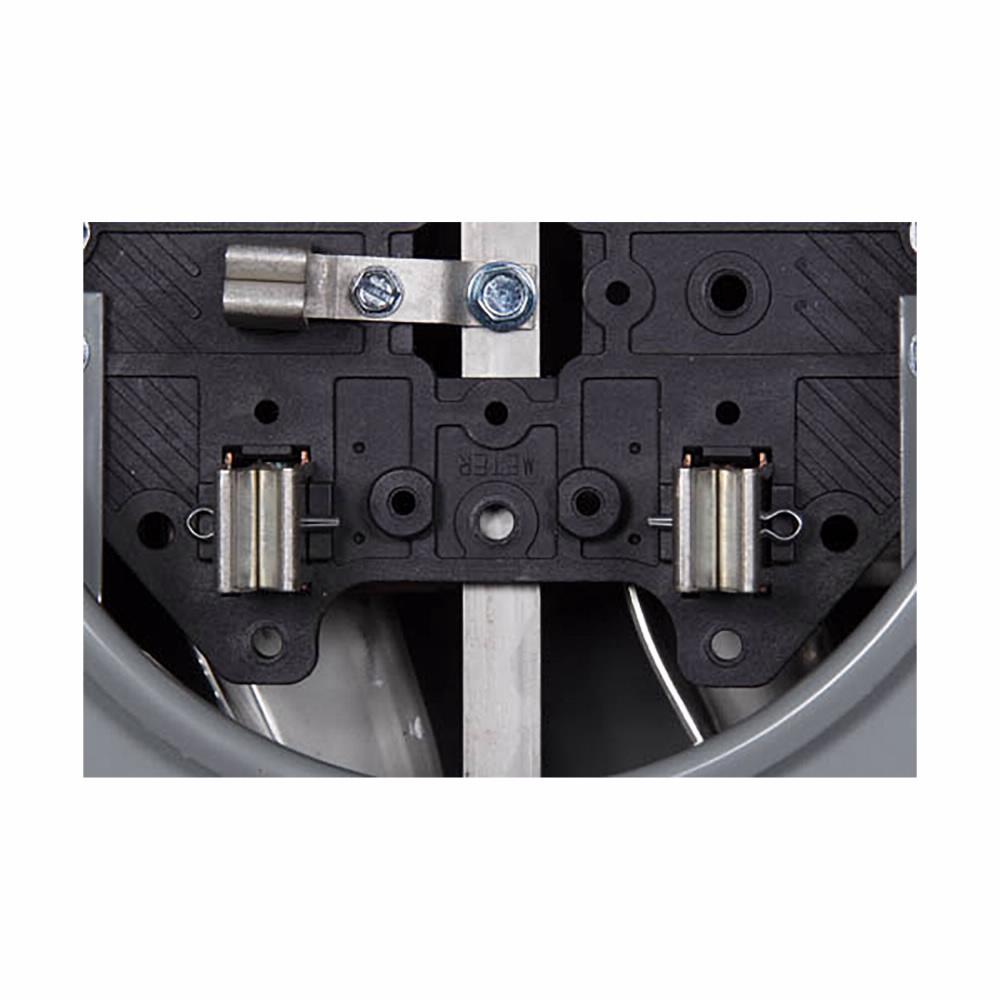

| ▪ All 3 mm stacks include 5-jaws at 9 o'clock position |
| ▪ Standard 800 A aluminum bus |
| ▪ 3-phases in and 1-phase OUT design |
| ▪ Meter socket and tenant main breaker or wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft |
| ▪ A convenient termination for neutral conductors is in the wireway of each module |
| ▪ Enclosures are made of galvanized steel construction and include rust inhibiting phosphate primer and gray baked enamel for long term durability |

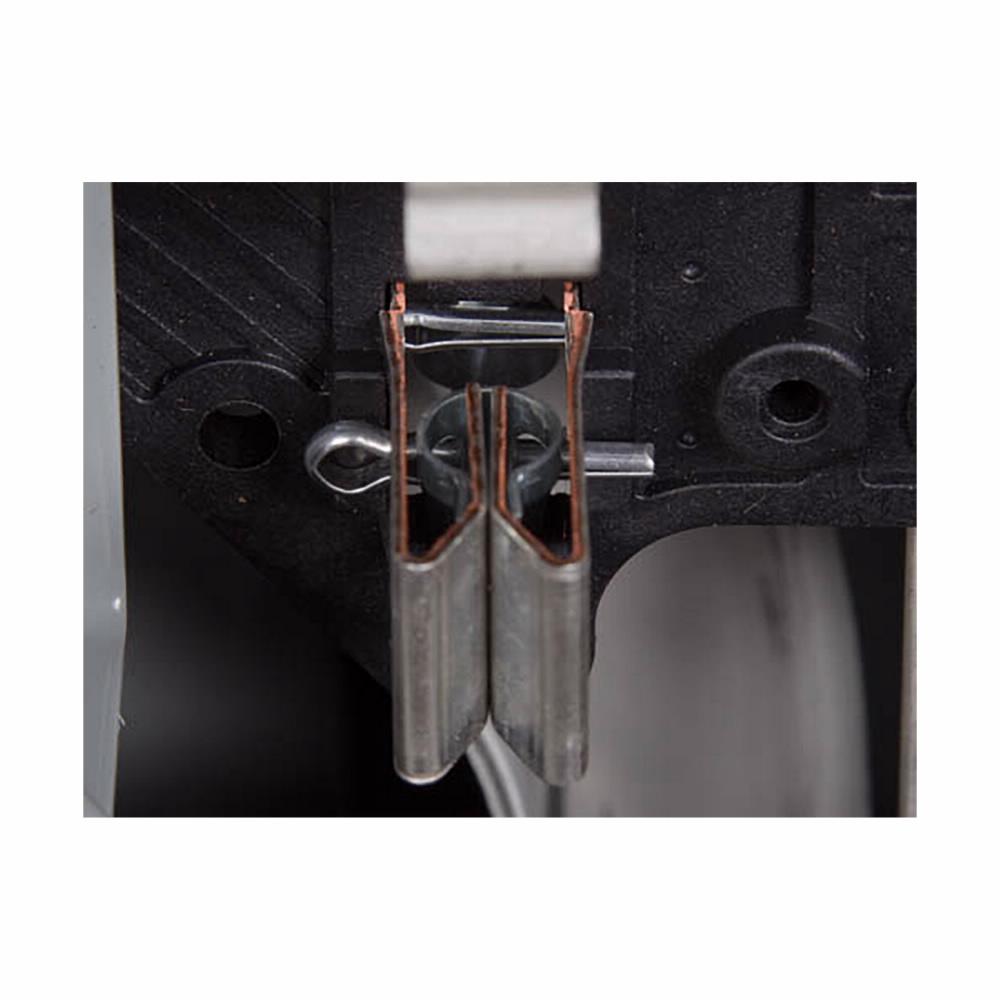

| ▪ Meter socket base is installed without any fasteners, reducing chances for hot spots |
| ▪ Separate covers allow easy access to tenant breaker and wireway section as well as permit work on breakers or in wireway without disturbing meters or meter covers |
| ▪ For use with CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM and CVH2_XMM bolt-on type main tenant breaker |
| ▪ Interrupt rating depends on selected main circuit breaker |
| ▪ 3 mm stacks are 3-phases in, 1-phase OUT design |
| ▪ Short circuit ratings up to 100000 A RMS symmetrical depending upon AIC rating of installed main tenant circuit breakers and main device |
