Eaton

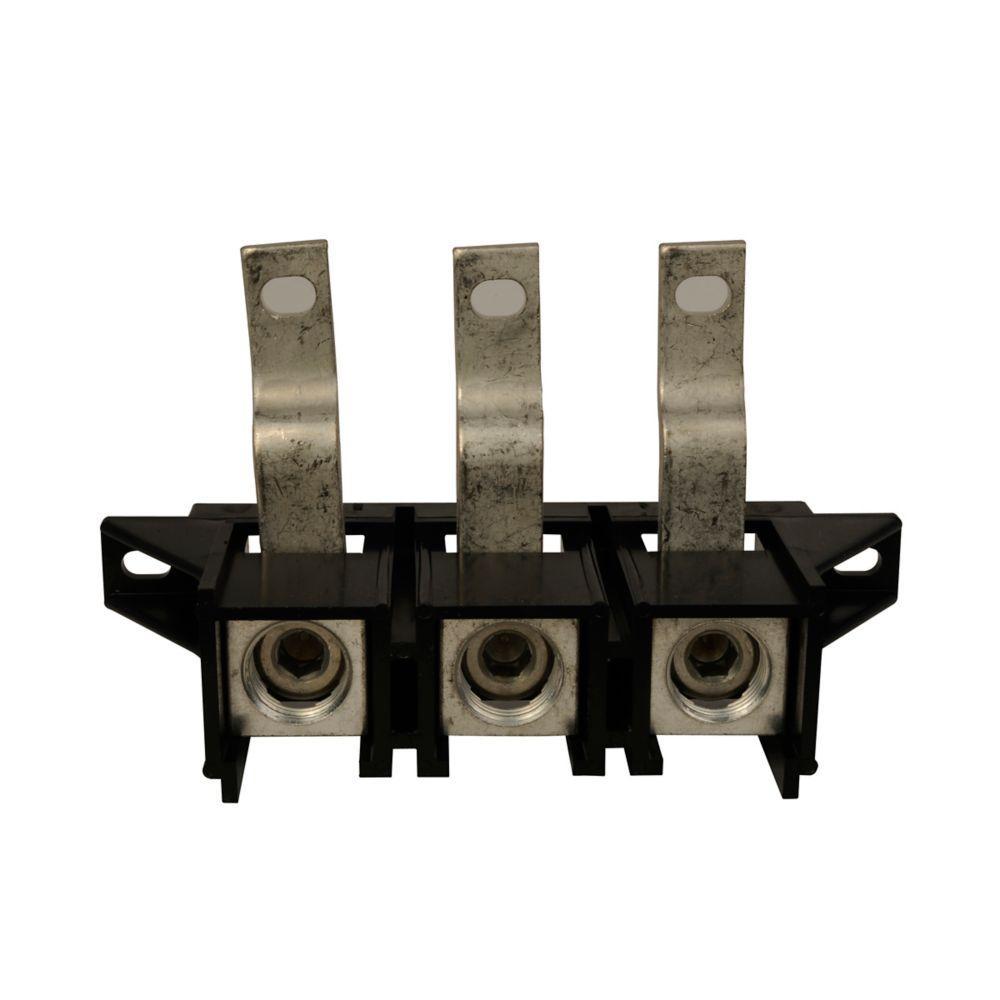

3BRL225 CH MAIN LUG BLOCK 225A 3 PHASE TYPE BR FOR CONVERTIBLE BR

Mouse over image to zoom, click to enlarge

  • 3BRL225 CH MAIN LUG BLOCK 225A 3 PHASE TYPE BR FOR CONVERTIBLE BR
  • 3BRL225 CH MAIN LUG BLOCK 225A 3 PHASE TYPE BR FOR CONVERTIBLE BR
  • 3BRL225 CH MAIN LUG BLOCK 225A 3 PHASE TYPE BR FOR CONVERTIBLE BR

Description: EATON Main Lug Kit, 3-Phase, 2/0 AWG to 300 kcmil Al/Cu Conductor, Panel Mounting, For Use With: Type BR, BD 1/2/3-Pole Circuit Breaker and Convertible Loadcenter

Manufacturer PN: 3BRL225

UPC:  78211479025

Kendall Electric Inc PN: 4694455

Invoice Description:

3BRL225 CH MAIN LUG BLOCK 225A 3 PHASE TYPE BR FOR CONVERTIBLE BR


SPEC SHEET

▸ See All in Load Center Lugs


How Can We Make This Page Better?

EATON 3BRL225 3-Phase Main Lug Kit With Neon Indicating Light, 2/0 AWG to 300 kcmil Al/Cu, Panel Mount, For Use With Type BR, BD 1/2/3-Pole Circuit Breaker and Convertible Loadcenter

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Kit, 3-Phase, 2/0 AWG to 300 kcmil Al/Cu Conductor, Panel Mounting, For Use With: Type BR, BD 1/2/3-Pole Circuit Breaker and Convertible Loadcenter

Specifications

 Brand Name EATON
 Conductor Range 2/0 AWG to 300 kcmil Al/Cu
 Manufacturer Part Number 3BRL225
 Mounting Type Panel
 Standards/Approvals UL Listed|CE Certified|CSA Certified
 Suitable For Use With Type BR, BD 1/2/3-Pole Circuit Breaker and Convertible Loadcenter
 Type 3-Phase

Features

▪ 225 a current rating
▪ 2/0 AWG to 300 kcmil aluminum/copper at 60 to 75 deg C wire range
