Eaton
3BR4242LC225R C-H MAIN LUG LOADCENTER

Mouse over image to zoom, click to enlarge

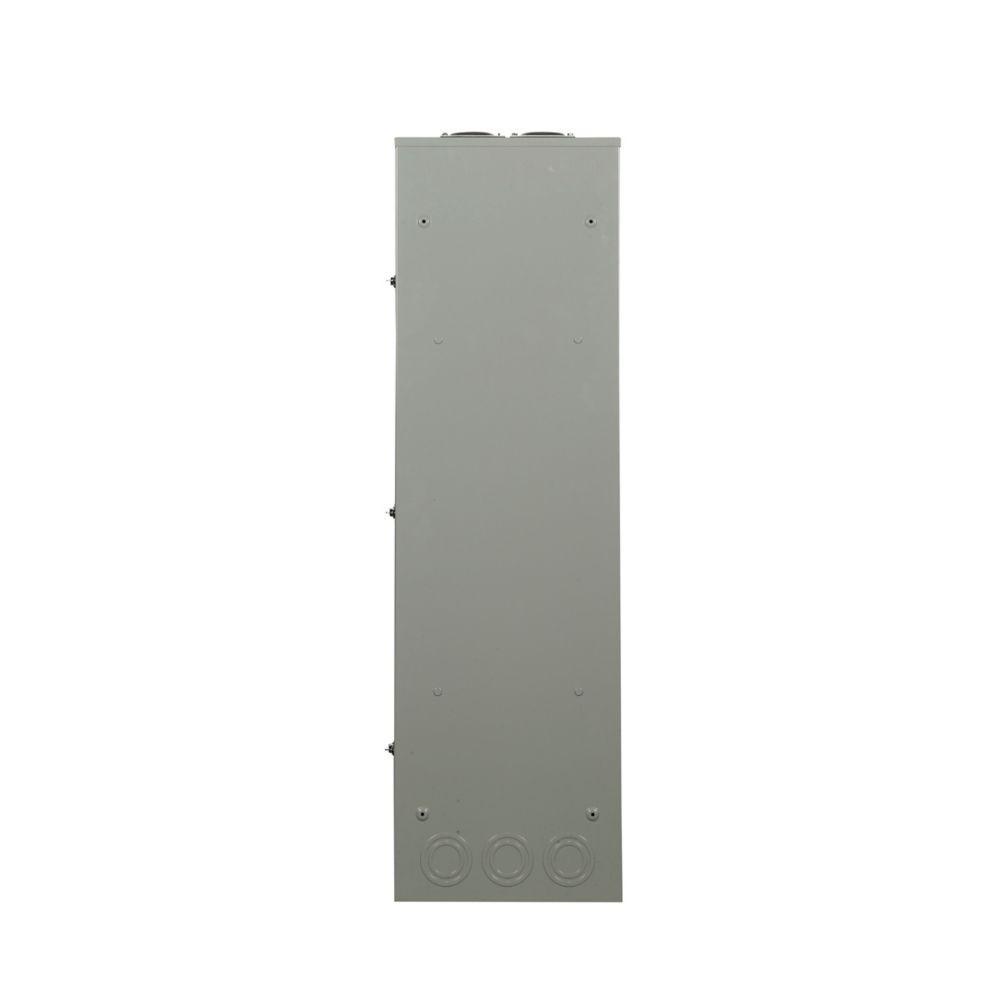

  • 3BR4242LC225R C-H MAIN LUG LOADCENTER

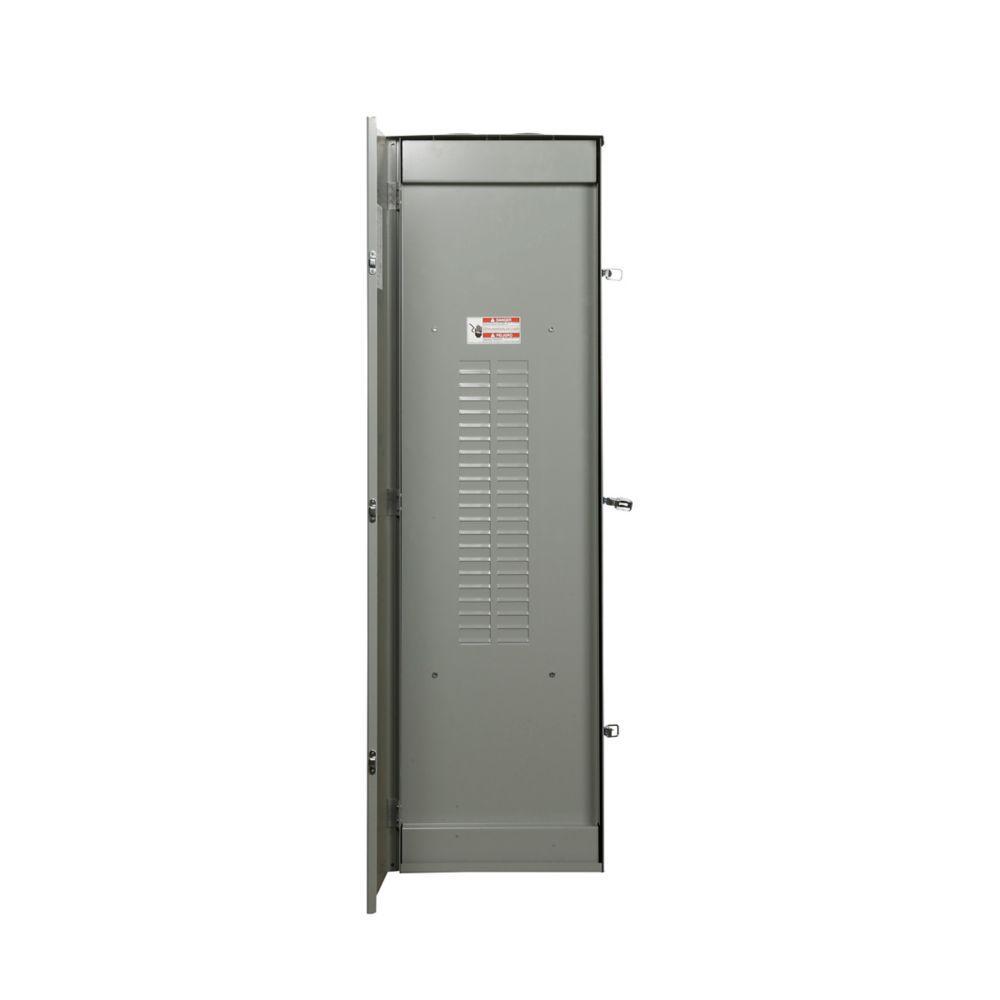

  • 3BR4242LC225R C-H MAIN LUG LOADCENTER
  • 3BR4242LC225R C-H MAIN LUG LOADCENTER

Description: EATON Main Lug Load Center, 3-Phase Rainproof, 120/208Y/240 V AC, 225 A, 42 Circuits, BR Breaker, 3/4-Wire Wiring Configuration, 42 Spaces, 2/0 AWG to 300 kcmil Wire, NEMA 3R, Galvanized Steel Housing, 39 in L x 14.31 in W x 5.19 in H

Manufacturer PN: 3BR4242LC225R

UPC:  78668588364

Kendall Electric Inc PN: 3612510

Invoice Description:

3BR4242LC225R C-H MAIN LUG LOADCENTER


SPEC SHEET

▸ See All in Three Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON 3BR4242LC225R 3-Phase Rainproof Main Lug Load Center, 120/208Y/240 V AC, 225 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Load Center, 3-Phase Rainproof, 120/208Y/240 V AC, 225 A, 42 Circuits, BR Breaker, 3/4-Wire Wiring Configuration, 42 Spaces, 2/0 AWG to 300 kcmil Wire, NEMA 3R, Galvanized Steel Housing, 39 in L x 14.31 in W x 5.19 in H

Specifications

 Amperage Rating 225 A
 Application Outdoor, Residential and Light Commercial Applications
 Brand Name EATON
 Breaker Type BR
 Dimensions 39 in L x 14.31 in W x 5.19 in H
 Enclosure NEMA 3R
 Housing Material Galvanized Steel
 Includes Cover
 Manufacturer Part Number 3BR4242LC225R
 Number of Circuits 42
 Number of Spaces 42
 Standards/Approvals UL Listed
 Type 3-Phase Rainproof
 Voltage Rating 120/208Y/240 V AC
 Wiring Configuration 3/4-Wire

Features

▪ Bonding Z-strap, provides easy field conversion for service entrance applications
▪ Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
▪ 2/0 AWG to 300 kcmil copper/aluminum wire size
▪ Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings
▪ Straight-in wiring saves labor and material
▪ 1-panel for either top or bottom applications
▪ 2/0 AWG lug, easily removable and can be installed in any location on the neutral bar
▪ Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
▪ Standard tin plated aluminum bus, excellent conductivity and corrosion resistance
▪ Tangential center knockout, easier installation for conduit applications
▪ Commercial grade main breaker, 25 kAIC series rated main breaker for superior protection
▪ Neutral bus, easily removable for sub-panel applications
