Eaton

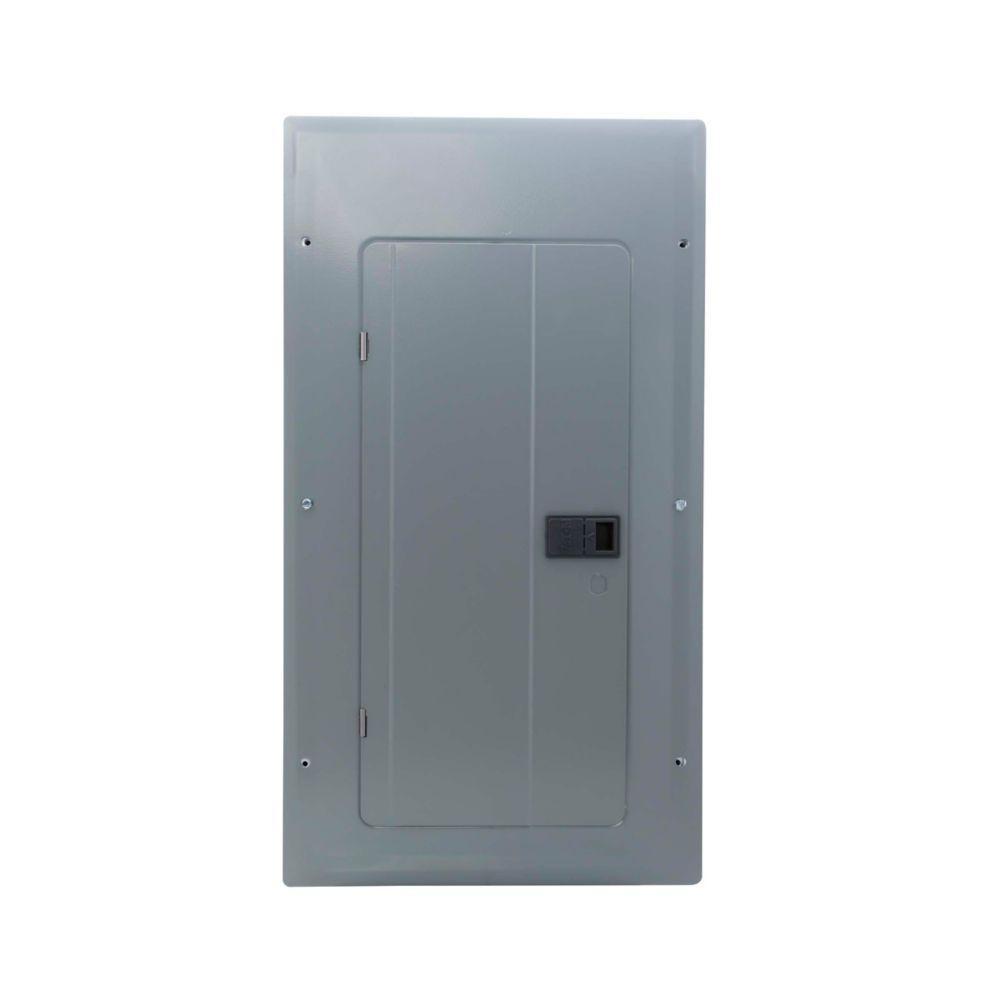

3BR1224LC125R C-H LOADCENTER

Mouse over image to zoom, click to enlarge

  • 3BR1224LC125R C-H LOADCENTER
  • 3BR1224LC125R C-H LOADCENTER

Description: EATON Main Lug Loadcenter, 3-Phase, 208Y/120/240 V AC, 125 A, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, 6 to 3/0 AWG Wire, Surface Mount, NEMA 3R, NEMA C1R Enclosure Box, 21 in L x 14.31 in W x 5.19 in H

Manufacturer PN: 3BR1224LC125R

UPC:  78668588360

Kendall Electric Inc PN: 3612502

Invoice Description:

3BR1224LC125R C-H LOADCENTER


SPEC SHEET

▸ See All in Three Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON 3BR1224LC125R 3-Phase Main Lug Loadcenter, 208Y/120/240 V AC, 125 A, 10 kA Interrupt

Log In for Pricing and Availability




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Loadcenter, 3-Phase, 208Y/120/240 V AC, 125 A, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, 6 to 3/0 AWG Wire, Surface Mount, NEMA 3R, NEMA C1R Enclosure Box, 21 in L x 14.31 in W x 5.19 in H

Specifications

 Amperage Rating 125 A
 Application Electrical Assemblies, Panels and EOEM, Power Distribution and Outdoor Applications
 Brand Name EATON
 Breaker Type BR
 Dimensions 21 in L x 14.31 in W x 5.19 in H
 Enclosure NEMA 3R
 Enclosure Box Size NEMA C1R
 Includes Cover
 Manufacturer Part Number 3BR1224LC125R
 Mounting Type Surface
 Number of Circuits 24
 Number of Spaces 12
 Standards/Approvals UL Listed
 Type 3-Phase
 Voltage Rating 208Y/120/240 V AC
 Wiring Configuration 4-Wire

Features

▪ BR loadcenters have standard tin plated aluminum bus with a limited availability of copper bus
▪ Raintight boxes are manufactured from galvanized steel, then finished using an electrostatic powder coated, baked urethane paint process
▪ Tangential main knockout
▪ Single key hole mounting
▪ Factory pre-attached neutral bonding strap
