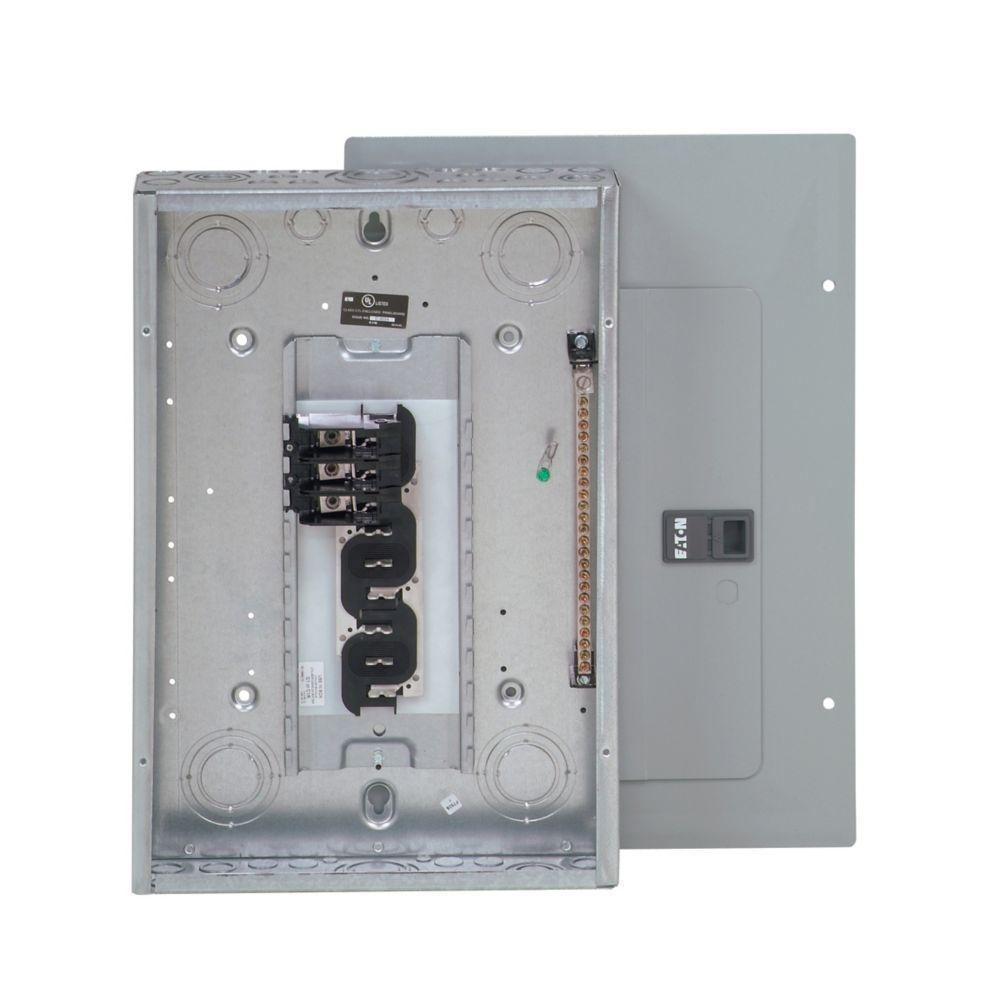

3BR1224L125 CH 24 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER

Mouse over image to zoom, click to enlarge

  • 3BR1224L125 CH 24 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER
  • 3BR1224L125 CH 24 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER
  • 3BR1224L125 CH 24 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER
  • 3BR1224L125 CH 24 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER

Description: EATON Main Lug Loadcenter, 3-Phase Metallic, 120/208Y/240 V AC, 125 A, 24 Pole, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Flush Mount, NEMA 1, NEMA C1 Enclosure Box, 3.88 in L x 14.31 in W x 21 in H

Manufacturer PN: 3BR1224L125

UPC:  78667644140

Kendall Electric Inc PN: 2243779

Invoice Description:

3BR1224L125 CH 24 CIRCUIT ML 3P 125 AMP NEMA 1 LOADCENTER


SPEC SHEET

▸ See All in Three Phase Main Lug Load Centers


How Can We Make This Page Better?

EATON 3BR1224L125 3-Phase Metallic Main Lug Loadcenter, 120/208Y/240 V AC, 125 A, 24 Poles, 10 kA Interrupt

Log In for Pricing and Availability




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Loadcenter, 3-Phase Metallic, 120/208Y/240 V AC, 125 A, 24 Pole, 10 kA Interrupt, 24 Circuits, BR Breaker, 4-Wire Wiring Configuration, 12 Spaces, 6 to 2/0 AWG Wire, Flush Mount, NEMA 1, NEMA C1 Enclosure Box, 3.88 in L x 14.31 in W x 21 in H

Specifications

 Amperage Rating 125 A
 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Breaker Type BR
 Dimensions 3.88 in L x 14.31 in W x 21 in H
 Enclosure NEMA 1
 Enclosure Box Size NEMA C1
 Includes BREQS125 Hold Down Screw and Cover
 Manufacturer Part Number 3BR1224L125
 Mounting Type Flush
 Number of Circuits 24
 Number of Poles 24
 Number of Spaces 12
 Standards/Approvals UL 50,UL 67
 Type 3-Phase Metallic
 Voltage Rating 120/208Y/240 V AC
 Wiring Configuration 4-Wire

Features

▪ Advanced electronics effectively reduce nuisance tripping
▪ For use with type BR 1 in breakers
▪ Indoor enclosure
▪ Copper aluminum wire at 60 to 75 deg C for main lugs
▪ Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
▪ No feed through lugs
▪ Combination mounting
▪ Flexible neutral design
▪ Tangential main knockout
▪ Single key hole mounting
▪ Factory pre-attached neutral bonding strap
▪ Bottom or top feed location
▪ Straight in wiring saves labor and material
▪ Easily removable lugs and can be installed in any location on the neutral bar
▪ Drywall marking on enclosure indicates proper mounting depth for flush applications
▪ Steel backpan provides solid and reliable breaker mounting single-piece design for stability and durability
