FLIR Systems

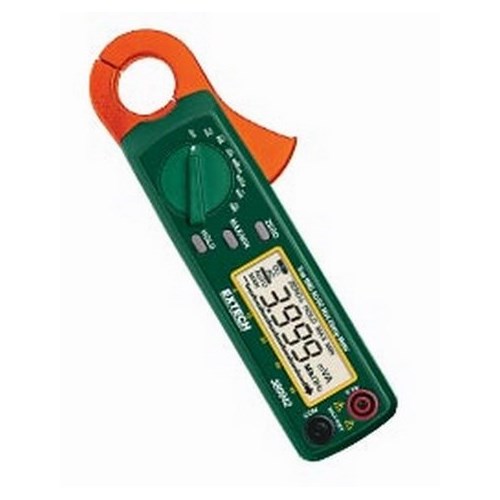

380942 EXTECH CLAMP METER

Mouse over image to zoom, click to enlarge

  • 380942 EXTECH CLAMP METER
  • 380942 EXTECH CLAMP METER

Description: Extech® AC/DC Clamp Meter, Mini True RMS, 30 A AC/DC, 400 V AC/DC Electrical Rating, 10 kHz Frequency, 0.9 in Jaw, 4000 Count, LCD Display, +/-2% + 5 Digits AC Current Accuracy, +/-2% + 5 Digits AC, +/-1% + 2 Digits DC Voltage Accuracy, Safety Rating: CAT II 600 VAC, CAT III 300 VAC, (2) 1.5 VDC AA Batteries Power Source, 4 to 122 deg F Operating, 7.2 in H x 2.5 in W x 1.4 in D Dimensions, Plastic

Manufacturer PN: 380942

UPC:  79395038942

Kendall Electric Inc PN: 2545715

Invoice Description:

380942 EXTECH CLAMP METER


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

Extech® 380942 Mini True RMS AC/DC Clamp Meter, 30 A AC/DC, 400 V AC/DC, 10 kHz, 0.9 in Jaw, LCD Display

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The compact Extech® 380942 is a 30 A mini AC/DC clamp meter. The clamp meter has a remarkable 0.1 mA resolution AC, very low-current sensitivity and a small diameter jaw designed to reach into small areas. The 30 A range with 0.1 mA AC and 1 mA DC resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC and telecom work, as well as residential electrical, fleet maintenance, marine and motorcycle repairs. This CAT III-rated True RMS mini clamp meter comes with test leads, 2 AAA battery, soft carrying case and user manual.
Extech® AC/DC Clamp Meter, Mini True RMS, 30 A AC/DC, 400 V AC/DC Electrical Rating, 10 kHz Frequency, 0.9 in Jaw, 4000 Count, LCD Display, +/-2% + 5 Digits AC Current Accuracy, +/-2% + 5 Digits AC, +/-1% + 2 Digits DC Voltage Accuracy, Safety Rating: CAT II 600 VAC, CAT III 300 VAC, (2) 1.5 VDC AA Batteries Power Source, 4 to 122 deg F Operating, 7.2 in H x 2.5 in W x 1.4 in D Dimensions, Plastic

Specifications

 AC Current Accuracy +/-2% + 5 Digits
 Brand Name Extech®
 Counts 4000
 Dimensions 7.2 in H x 2.5 in W x 1.4 in D
 Electrical Ratings 30 A AC/DC, 400 V AC/DC
 Frequency Rating 10 kHz
 Jaw Capacity 0.9 in
 Manufacturer Part Number 380942
 Material Plastic
 Operating Temperature 4 to 122 deg F
 PART NUMBER KEYWORDS 380942 ; 793950389423 ; 79395038942 ; 00793950389423
 Power Source (2) 1.5 V DC AA Batteries
 Type Mini True RMS
 Voltage Accuracy +/-2% + 5 Digits AC, +/-1% + 2 Digits DC

Features

▪ True RMS models recommended for measurement where distortion may otherwise cause inaccuracies
▪ Provide high accuracy and resolution
▪ Highest resolution 0.1 mA and accuracy at low currents
▪ Low AC/DC current measurement with high resolution to 0.1 mA AC and 1 mA DC
▪ Voltage measurement using test leads
▪ Fast 40-segment barograph
▪ One touch auto zero for DCA measurement eliminates the need to turn a knob to zero adjust
▪ Minimum/maximum, data hold and auto power off
▪ Large 4000 count LCD display with full function indication
▪ Measure current draw when conducting energy usage audits
▪ Data hold, minimum/maximum recall display
▪ Overload protection to 400 A DC
