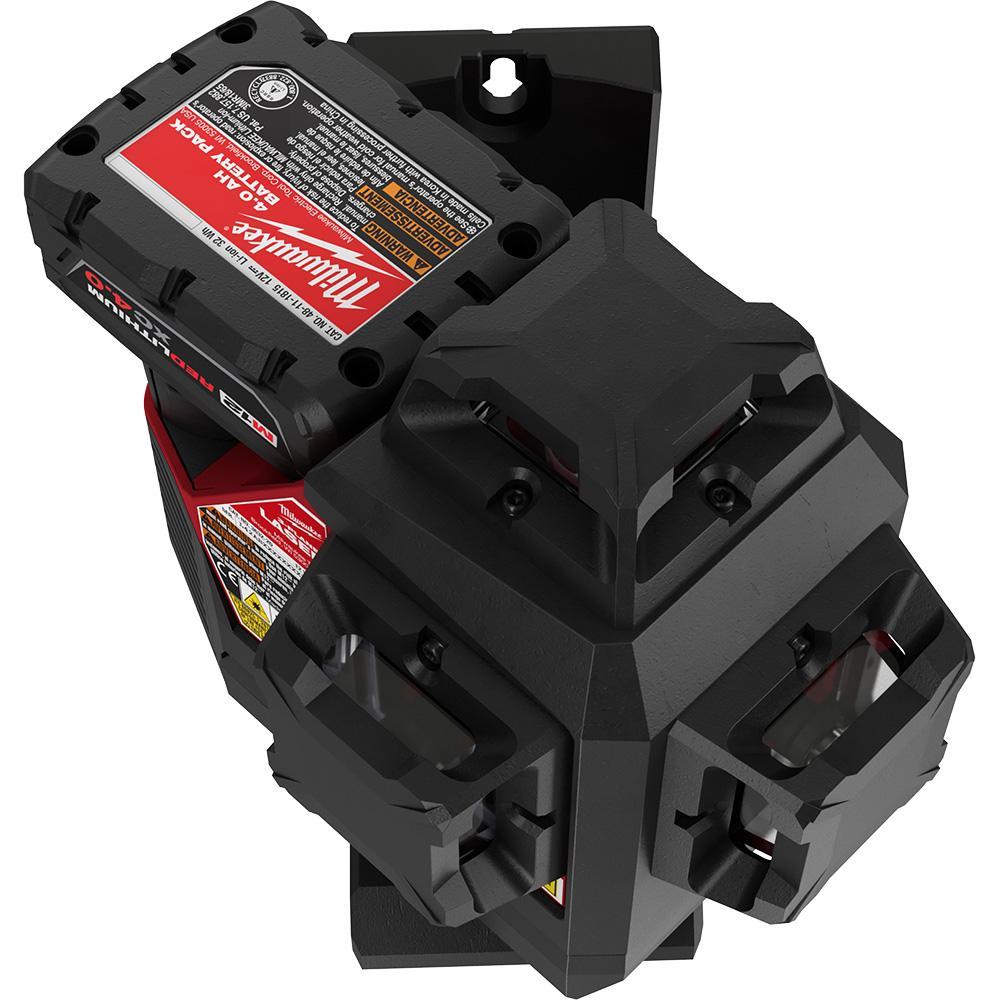

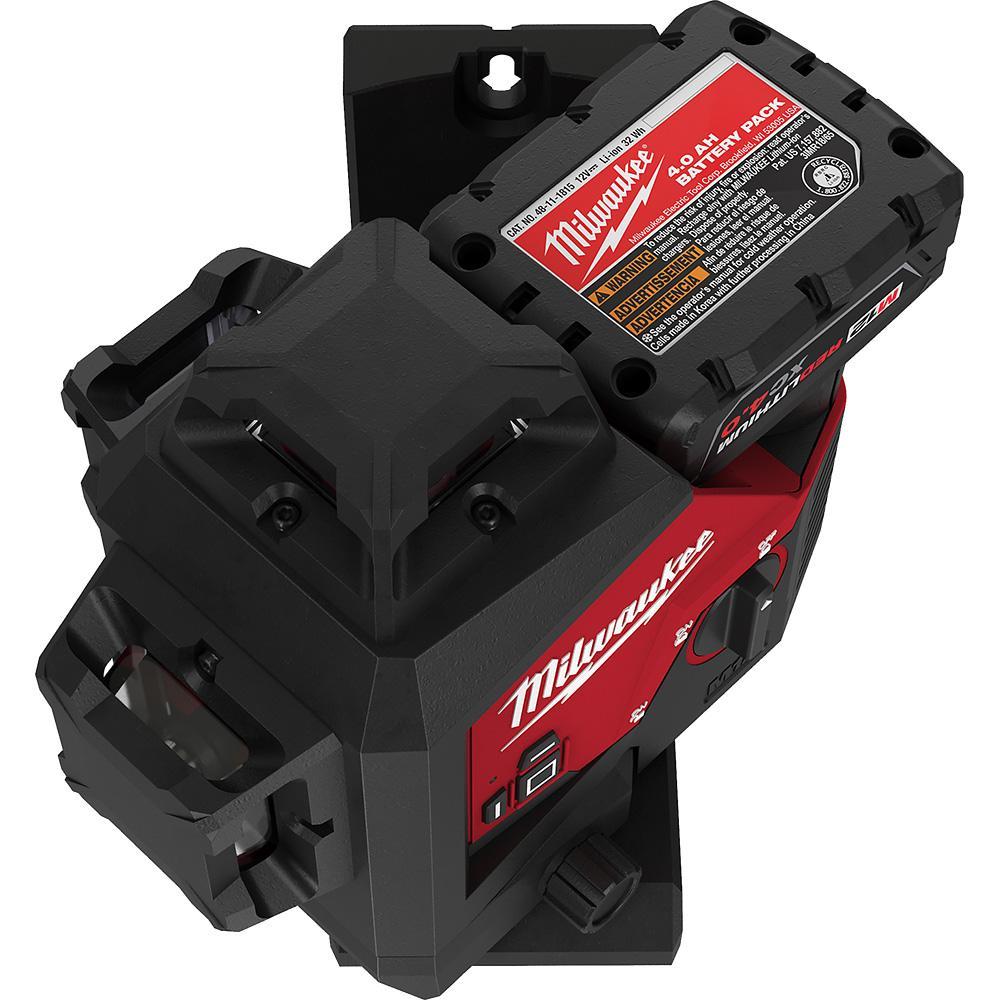

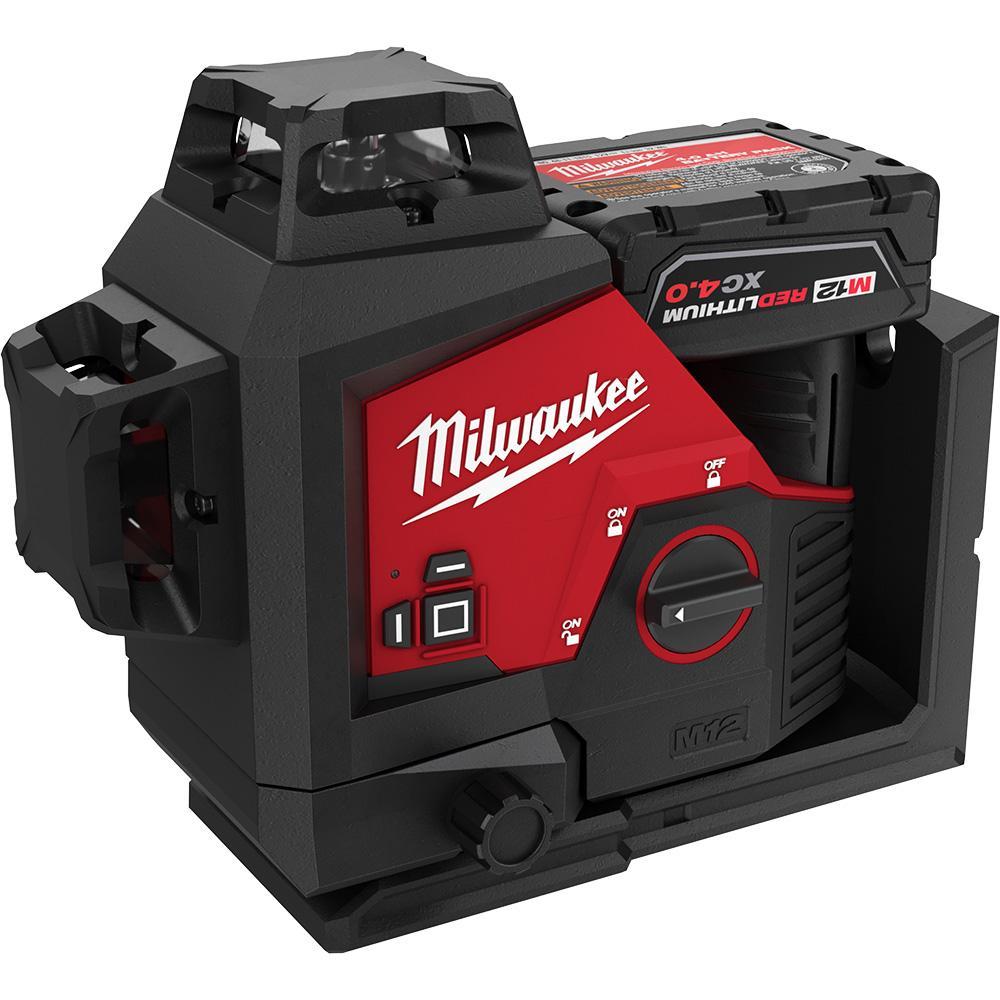

363221 MILWAUKE GREEN LASER KIT

Mouse over image to zoom, click to enlarge

  • 363221 MILWAUKE GREEN LASER KIT
  • 363221 MILWAUKE GREEN LASER KIT
  • 363221 MILWAUKE GREEN LASER KIT
  • 363221 MILWAUKE GREEN LASER KIT
  • 363221 MILWAUKE GREEN LASER KIT

Description: Milwaukee® 3-Plane Laser, 360 deg Automatic Cordless Self Leveling, Bare Tool/Kit: Kit, Series: M12™, +/- 1/8 in at 33 ft Accuracy, 125 ft Measuring, +/- 4 deg Auto Leveling, Green Beam, Laser Class: Class FDA llA, ll/IEC 2, 2M, 14 to 104 deg F, 12 V, M12™ REDLITHIUM™ 4.0 XC Battery, 4 Ah Battery, Reinforced Nylon Housing Material, 7.8 in L x 4.1 in W x 6.5 in H

Manufacturer PN: 3632-21

UPC:  04524259314

Kendall Electric Inc PN: 4244643

Invoice Description:

363221 MILWAUKE GREEN LASER KIT

▸ See All in Rotary & Straight Line Laser Levels


How Can We Make This Page Better?

Milwaukee® 3632-21 M12™ 360 deg Automatic Cordless Self Leveling 3-Plane Laser, 125 ft Measuring, +/- 1/8 in at 33 ft Accuracy, 12 V, M12™ REDLITHIUM™ 4.0 XC Battery, Reinforced Nylon Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The MILWAUKEE® M12™ Green 360 deg 3 Plane Laser Kit provides all day runtime and best visibility in its class. Get 15+ hours of continuous runtime when paired with an M12™ REDLITHIUM™ 4.0 XC Battery for ultimate productivity. The high-intensity green laser offers superior visibility up to 250' (diameter) for long-range applications. The three 360 deg planes include horizontal and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing to easily layout large spaces with one tool. The integrated bracket features a micro control and pivots on plumb point for easy and fast alignment. The amplified rare earth magnets provide a strong hold and will not slide on steel studs, while an integrated hang hole makes setup easy and efficient in any environment. As a part of the industry-leading M12™ System, this 360 deg laser level is compatible with all M12™ Batteries.
Milwaukee® 3-Plane Laser, 360 deg Automatic Cordless Self Leveling, Bare Tool/Kit: Kit, Series: M12™, +/- 1/8 in at 33 ft Accuracy, 125 ft Measuring, +/- 4 deg Auto Leveling, Green Beam, Laser Class: Class FDA llA, ll/IEC 2, 2M, 14 to 104 deg F, 12 V, M12™ REDLITHIUM™ 4.0 XC Battery, 4 Ah Battery, Reinforced Nylon Housing Material, 7.8 in L x 4.1 in W x 6.5 in H

Specifications

 Accuracy +/- 1/8 in at 33 ft
 Application Indoor Applications
 Auto Leveling Range +/- 4 deg
 Bare Tool Kit Kit
 Battery Capacity 4 Ah
 Battery Type Li-Ion
 Beam Color Green
 Brand Name Milwaukee®
 Dimensions 7.8 in L x 4.1 in W x 6.5 in H
 Housing Material Reinforced Nylon
 Includes (1) M12™ REDLITHIUM™ 48-11-2440 XC 4.0 Extended Capacity Battery Pack (1) M12™ 48-59-2401 Lithium-Ion Battery Charger, (1) 48-35-1111 Responsive Laser Alignmet Target and (1) Plastic Carrying Case
 Laser Class Class FDA llA, ll/IEC 2, 2M
 Manufacturer Part Number 3632-21
 Measuring Range 125 ft
 Series M12™
 Temperature Rating 14 to 104 deg F
 Type 360 deg Automatic Cordless Self Leveling
 Voltage Rating 12 V

Features

▪ 165 Ft range with detector
▪ Micro control - pivots on point
▪ IP54 rated - water and dust resistant
▪ All Day Runtime - 15+ hrs
▪ Amplified Rare Earth Magnets - Will Not Slide on Steel Studs
▪ 1m Impact Resistance
