Eaton

Mouse over image to zoom, click to enlarge

Description: Bussmann Fuse, Type D0 Time Delay, Indicating/Non-Indicating: Non-Indicating, 35 A, 400 V AC, 100 kA Interrupt, Class: GL/GG/C, Holder Mount, Cartridge Body, Ceramic, Black, 15 mm Dia x 36 mm L Body Size

Manufacturer PN: 35NZ02

UPC: 05171283427

Kendall Electric Inc PN: 23505

Invoice Description:

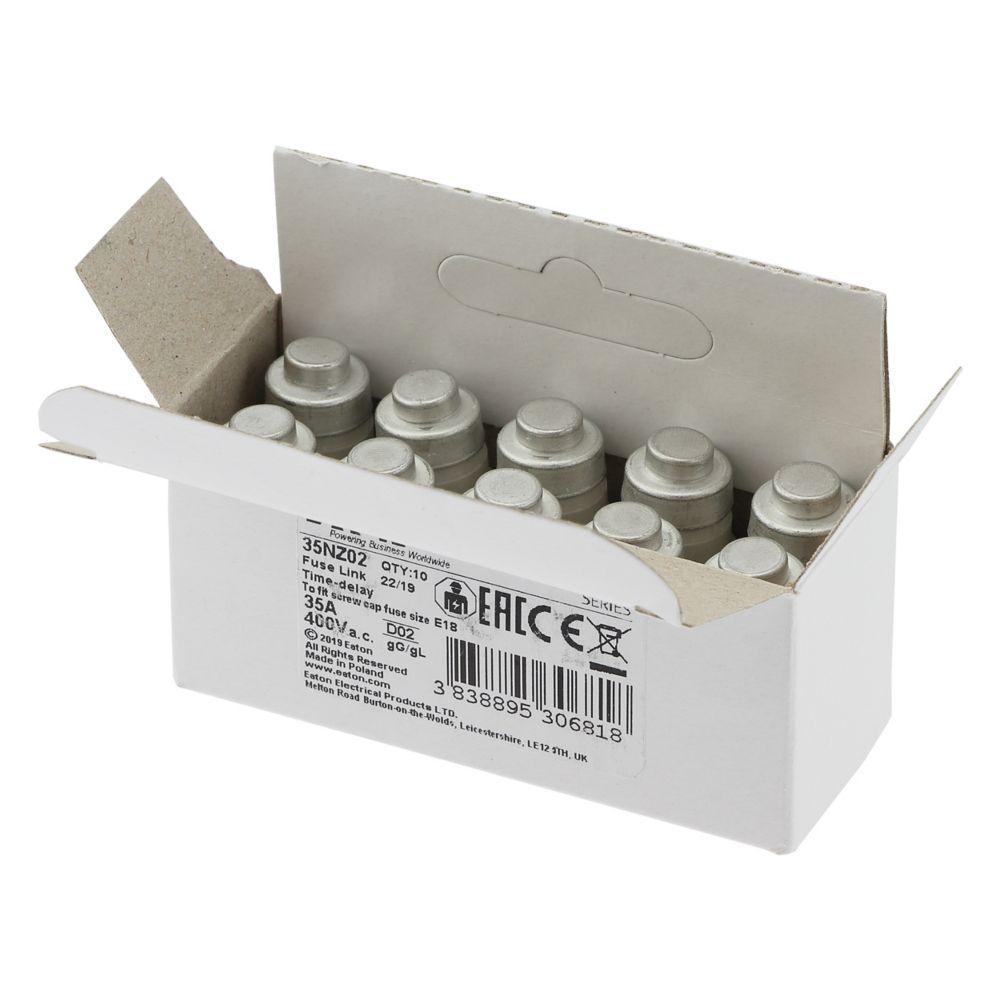

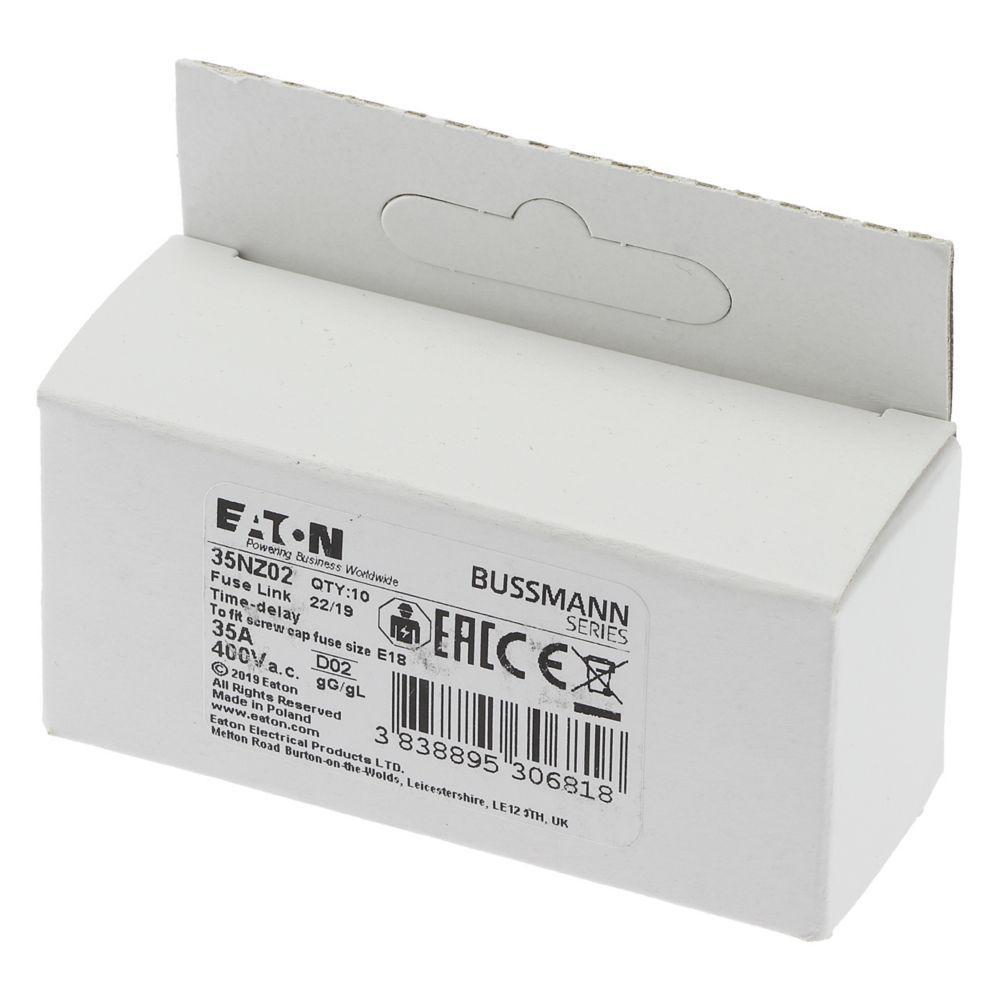

35NZ02 BUSS 440V NEOZED FUSE LINK (10)

SPEC SHEET

▸ See All in Fuse Links

How Can We Make This Page Better?

Bussmann 35NZ02 Type D0 Time Delay Fuse, 35 A, 400 V AC, 100 kA Interrupt, Class: GL/GG/C, Cartridge Body

Note: Lead times are estimates only

Description Specifications Resources

Description

Eaton's Bussmann series low voltage D and D0 bottle fuses are specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both D and D0 fuse types are available in three operating characteristics: time delay, fast acting and ultra rapid versions that can fit into screw cap fuse carriers for mounting on 1 or 3 pole DIN-Rail or panel mount.

Bussmann Fuse, Type D0 Time Delay, Indicating/Non-Indicating: Non-Indicating, 35 A, 400 V AC, 100 kA Interrupt, Class: GL/GG/C, Holder Mount, Cartridge Body, Ceramic, Black, 15 mm Dia x 36 mm L Body Size

Specifications

Amperage Rating	35 A
Application	Power Distribution and Control, Electrical Assemblies, Panels and EOEMs, Aftermarket, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories Facility, Stationary Machine Equipment In Factory - Robotics and Industrial Applications
Body Size	15 mm Dia x 36 mm L
Body Type	Cartridge
Brand Name	Bussmann
Class	GL/GG/C
Color	Black
Indicating Non Indicating	Non-Indicating
Manufacturer Part Number	35NZ02
Material	Ceramic
Mounting Type	Holder
PART NUMBER KEYWORDS	35NZ02 ; 7649838 ; 051712834278 ; 51712834278 ; 05171283427 ; 00051712834278 ; 5027590478038
Standards/Approvals	CE Marking\|DIN 49515\|GoST-R Compliant\|IEC 60269\|VDE Certified
Type	Type D0 Time Delay
Video Links
Voltage Rating	400 V AC
