Eaton

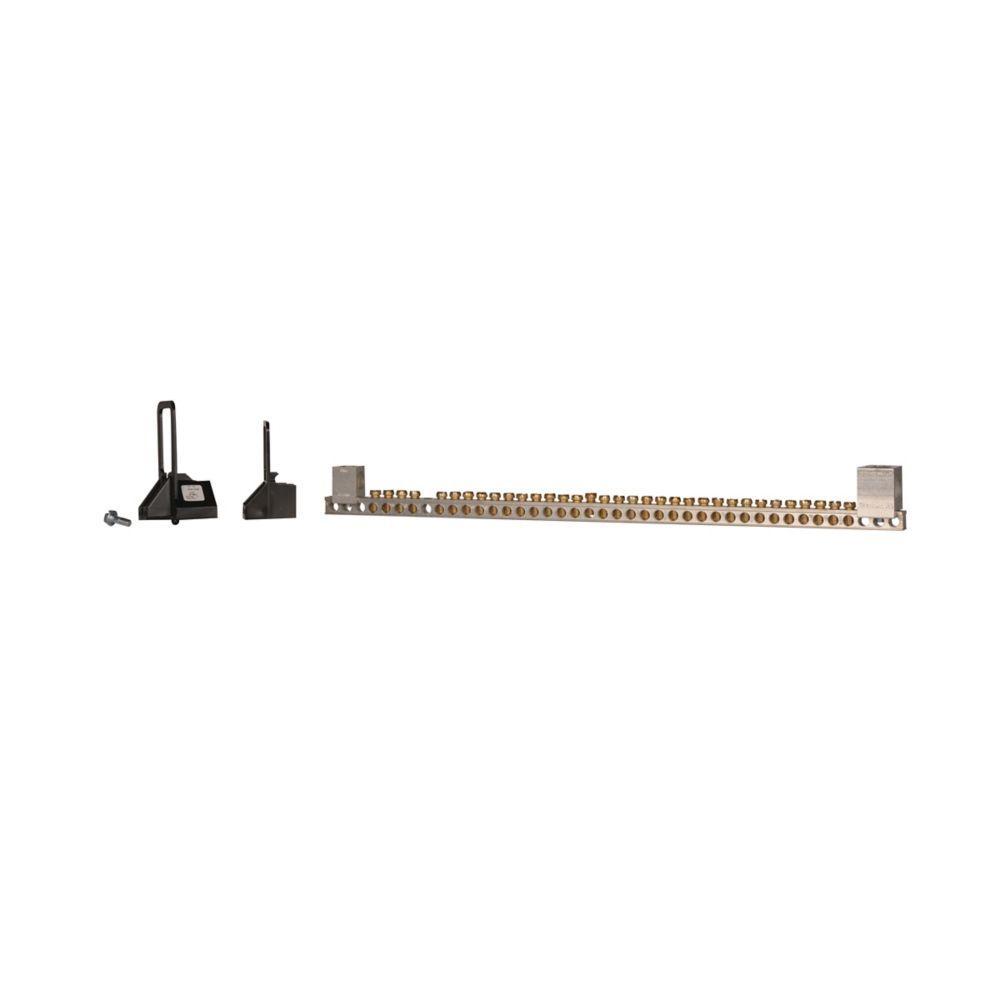

35NEU225B-1 C-H 225A MAX #1-300 KCMIL CU/AL MAIN TERMINAL, (35) #14-4 CU/AL 78211488469

Mouse over image to zoom, click to enlarge

  • 35NEU225B-1 C-H 225A MAX #1-300 KCMIL CU/AL MAIN TERMINAL, (35) #14-4 CU/AL 78211488469
  • 35NEU225B-1 C-H 225A MAX #1-300 KCMIL CU/AL MAIN TERMINAL, (35) #14-4 CU/AL 78211488469

Description: EATON Neutral Assembly, 20 in Length, 14-1/4 in W, 1 in Height, For Use With: Type BR 1 in Loadcenter Interior, Panel Mount, Aluminum/Copper

Manufacturer PN: 35NEU225B-1

UPC:  78211488469

Kendall Electric Inc PN: 3275634

Invoice Description:

35NEU225B-1 C-H 225A MAX #1-300 KCMIL CU/AL MAIN TERMINAL, (35) #14-4 CU/AL 78211488469


SPEC SHEET

▸ See All in Load Center Isolated Neutral Assembly


How Can We Make This Page Better?

EATON 35NEU225B-1 Neutral Assembly, 20 in L x 14-1/4 in W x 1 in H, For Use With Type BR 1 in Loadcenter Interior, Aluminum/Copper

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Neutral Assembly, 20 in Length, 14-1/4 in W, 1 in Height, For Use With: Type BR 1 in Loadcenter Interior, Panel Mount, Aluminum/Copper

Specifications

 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Height 1 in
 Length 20 in
 Manufacturer Part Number 35NEU225B-1
 Material Aluminum/Copper
 Mounting Type Panel
 Standards/Approvals CE Certified|CSA Certified|Federal Specification W-P-115B, Type 1, Class 2|UL Listed
 Suitable For Use With Type BR 1 in Loadcenter Interior
 Width 14-1/4 in

Features

▪ 1 to 300 kcmil copper/aluminum main incoming terminal at 60 or 75 deg C wire
▪ (35) 14 to 4 AWG copper/aluminum wire

Resources

 Catalog Page
 Product Data Sheet
