Eaton

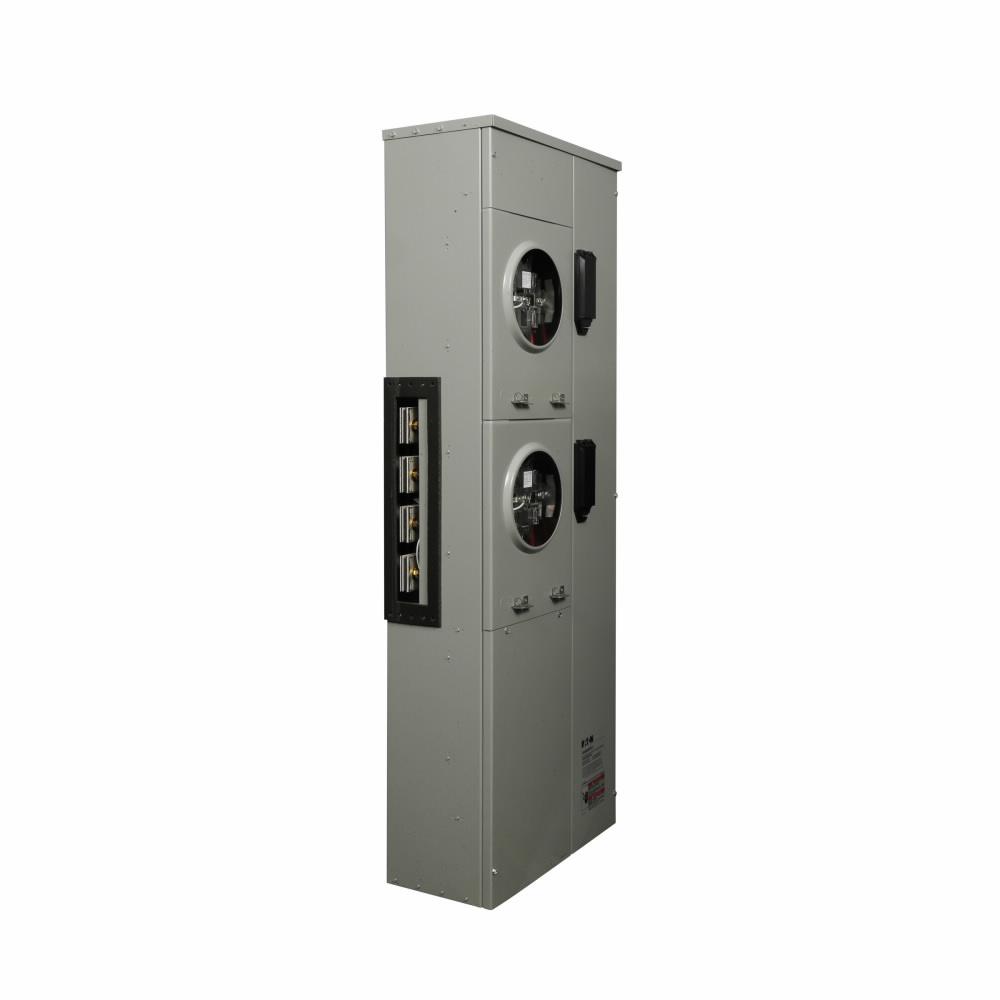

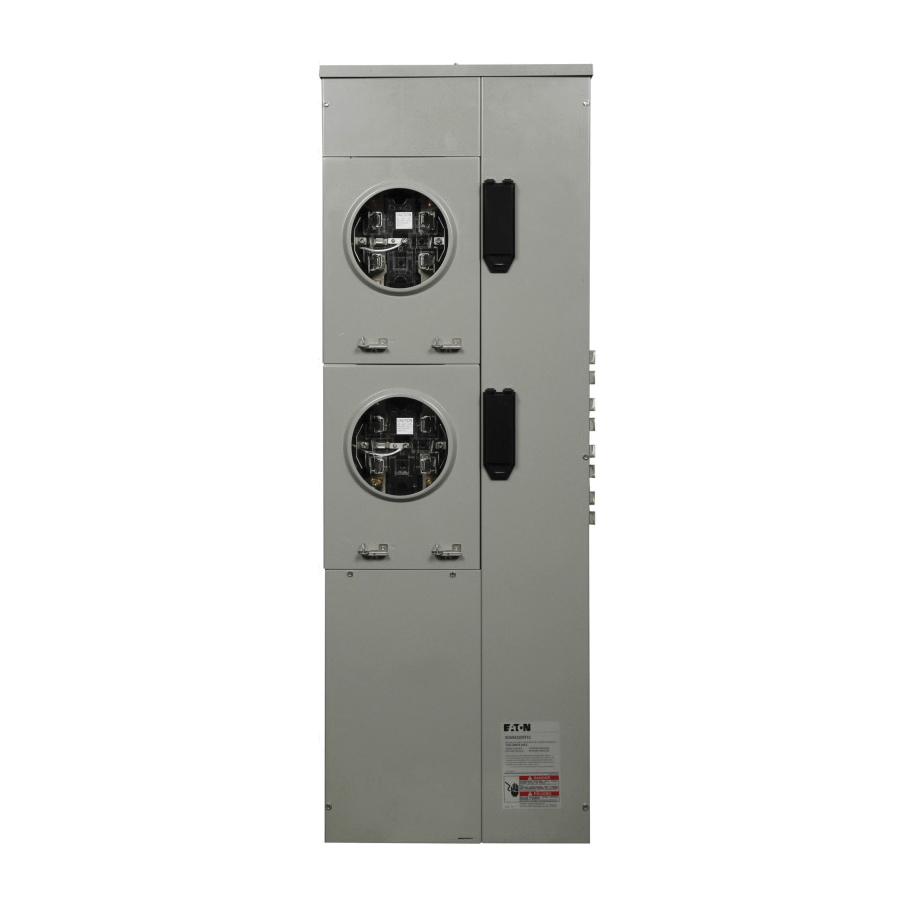

35MM240R124099 CH 2 HIGH COMM METER STACK W BREAKERS 200A, 200A

Mouse over image to zoom, click to enlarge

  • 35MM240R124099 CH 2 HIGH COMM METER STACK W BREAKERS 200A, 200A
  • 35MM240R124099 CH 2 HIGH COMM METER STACK W BREAKERS 200A, 200A
  • 35MM240R124099 CH 2 HIGH COMM METER STACK W BREAKERS 200A, 200A
  • 35MM240R124099 CH 2 HIGH COMM METER STACK W BREAKERS 200A, 200A

Description: EATON Meter Stack, Series: 35MM, Plug-In Socket, Bottom/Back/Top Feed, 208Y/120 V, 1200 A Bus, 400 A Socket, 2 Meter Sockets, 3 ph, Ringless Socket Cover Style, 5 Socket Jaws, Tenant Main Circuit Breaker, NEMA 3R Enclosure, 66-5/8 in L x 19-3/8 in W x 8-3/4 in H Dimensions

Manufacturer PN: 35MM240R124099

UPC:  78668921281

Kendall Electric Inc PN: 4101067

Invoice Description:

35MM240R124099 CH 2 HIGH COMM METER STACK W BREAKERS 200A, 200A


SPEC SHEET

▸ See All in Meter Stacks


How Can We Make This Page Better?

EATON 35MM240R124099 Meter Stack, 400 A Plug-In Socket, Bottom/Back/Top Feed, 208Y/120 V, 1200 A Bus

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Commercial Meter Stacks provide users with quick, flexible, and easy installation. The combination indoor / outdoor durable enclosures make them ideal for applications such as strip malls, office complexes, and industrial parks. These unique meter stacks can also be mounted with 1MM/3MM modules to allow for numerous different arrangements in how they are bolted together. Eaton’s Commercial Meter Stacks are UL listed, meet EUSERC electrical requirements, and are suitable for use as service entrance equipment, meaning there is no need to purchase more equipment or use add-ons.
EATON Meter Stack, Series: 35MM, Plug-In Socket, Bottom/Back/Top Feed, 208Y/120 V, 1200 A Bus, 400 A Socket, 2 Meter Sockets, 3 ph, Ringless Socket Cover Style, 5 Socket Jaws, Tenant Main Circuit Breaker, NEMA 3R Enclosure, 66-5/8 in L x 19-3/8 in W x 8-3/4 in H Dimensions

Specifications

 Application Commercial Applications
 Brand Name EATON
 Breaker Type Tenant Main Circuit
 Bus Amps 1200 A
 Dimensions 66-5/8 in L x 19-3/8 in W x 8-3/4 in H
 Enclosure NEMA 3R
 Feed Type Bottom/Back/Top
 Includes 400 A Tenant Breaker and K-Frame, Secondary Breaker and (2) 200 A Breakers
 Manufacturer Part Number 35MM240R124099
 Number Of Meter Sockets 2
 Phase 3
 Series 35MM
 Socket Amps 400 A
 Socket Cover Style Ringless
 Socket Jaws 5
 Standards/Approvals UL Listed
 Voltage Rating 208Y/120 V

Features

▪ Each socket is a 5 terminal block with lever bypass and jaw release
▪ Provision for 2-pole main tenant breakers (circuit breakers not included)
▪ Each individual socket can be phase balanced in the field to the desired lines (A-B, B-C or A-C)
▪ Indoor/outdoor construction
▪ Main tenant feeders can exit top, bottom or back
▪ If being used in outdoor application and exiting the top, mount Myer type hubs on rainproof cap
▪ Short circuit ratings up to 100 A rms symmetrical depending upon the kAIC rating of installed main tenant circuit breakers and main device
▪ Non-EUSERC areas
