Eaton

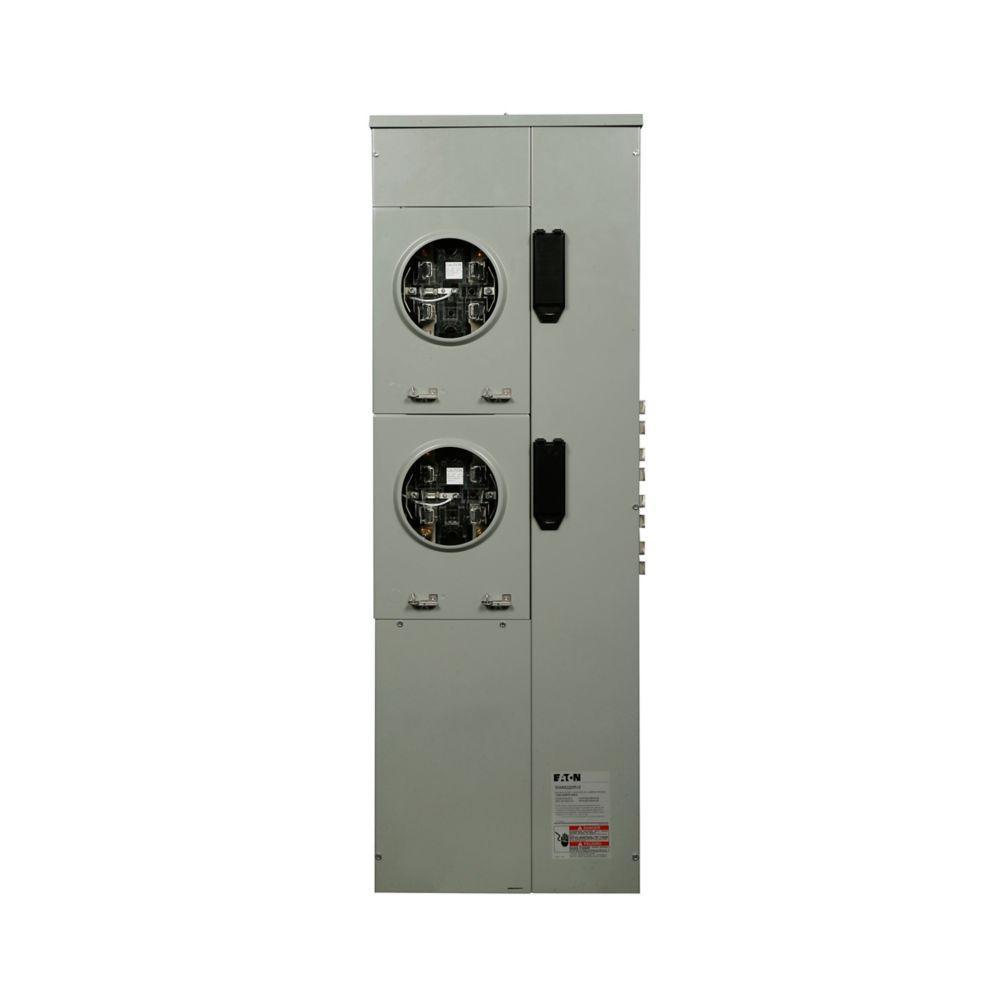

35MM240R1240 C-H COMMERCIAL METER STACK MODULE 78211610785

Mouse over image to zoom, click to enlarge

  • 35MM240R1240 C-H COMMERCIAL METER STACK MODULE 78211610785
  • 35MM240R1240 C-H COMMERCIAL METER STACK MODULE 78211610785

Description: EATON Meter Stack Module, 5-Jaw 2-Socket Multiple Metering, 120/240 V AC, 400 A, 3 ph, 100 kA Short Circuit, Bus Bar Connection, Plug-In Mounting, NEMA 3R Enclosure, 18.25 in L x 8.75 in W x 52.63 in D Dimensions

Manufacturer PN: 35MM240R1240

UPC:  78211610785

Kendall Electric Inc PN: 2700042

Invoice Description:

35MM240R1240 C-H COMMERCIAL METER STACK MODULE 78211610785


SPEC SHEET

▸ See All in Meter Stack Modules


How Can We Make This Page Better?

EATON 35MM240R1240 5-Jaw 2-Socket Multiple Metering Meter Stack Module With Ring Style Cover and Test Bypass, 120/240 V AC, 400 A, 3 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Commercial Meter Stacks provide users with quick, flexible, and easy installation. The combination indoor / outdoor durable enclosures make them ideal for applications such as strip malls, office complexes, and industrial parks. These unique meter stacks can also be mounted with 1MM/3MM modules to allow for numerous different arrangements in how they are bolted together. Eaton’s Commercial Meter Stacks are UL listed, meet EUSERC electrical requirements, and are suitable for use as service entrance equipment, meaning there is no need to purchase more equipment or use add-ons.
EATON Meter Stack Module, 5-Jaw 2-Socket Multiple Metering, 120/240 V AC, 400 A, 3 ph, 100 kA Short Circuit, Bus Bar Connection, Plug-In Mounting, NEMA 3R Enclosure, 18.25 in L x 8.75 in W x 52.63 in D Dimensions

Specifications

 Amperage Rating 400 A
 Application Commercial, Indoor/Outdoor, Residential and Facilities Applications
 Brand Name EATON
 Connection Type Bus Bar
 Dimensions 18.25 in L x 8.75 in W x 52.63 in D
 Enclosure NEMA 3R
 Includes 400 A Tenant Breakers
 Manufacturer Part Number 35MM240R1240
 Mounting Type Plug-In
 Phase 3
 Short Circuit Current Rating 100 kA
 Standards/Approvals UL Listed
 Type 5-Jaw 2-Socket Multiple Metering
 Voltage Rating 120/240 V AC

Features

▪ 35 mm stacks are 3-phases in, 1-phase OUT design
▪ 1200 a main aluminum bus ampacity
▪ Meter socket and tenant main breaker or wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft
▪ Two designs can be interconnected with all other commercial metering as well as with residential devices which makes installation faster and more flexible
▪ Suitable for use as service entrance equipment, which means no need to purchase more equipment or use add-ons
▪ Able to be mounted with 1 mm/3 mm modules and thus will bolt together in many different arrangements, giving greater flexibility
▪ Separate covers allow easy access to tenant breaker and wireway section, permit work on breakers or in wireway without disturbing meters or meter covers
▪ Combination indoor outdoor enclosures with removable top cap, bottom plate and backplate for field installed knockouts (all blank plates) allow for flexible and easy installation
▪ Interrupt rating depends on selected main circuit breaker
▪ Each socket is a 5-terminal block with lever bypass and jaw release
▪ Short circuit ratings up to 100 A RMS symmetrical depending upon the kAIC rating of installed main tenant circuit breakers and main device

Resources

 Catalog Page
 Product Data Sheet
