Eaton

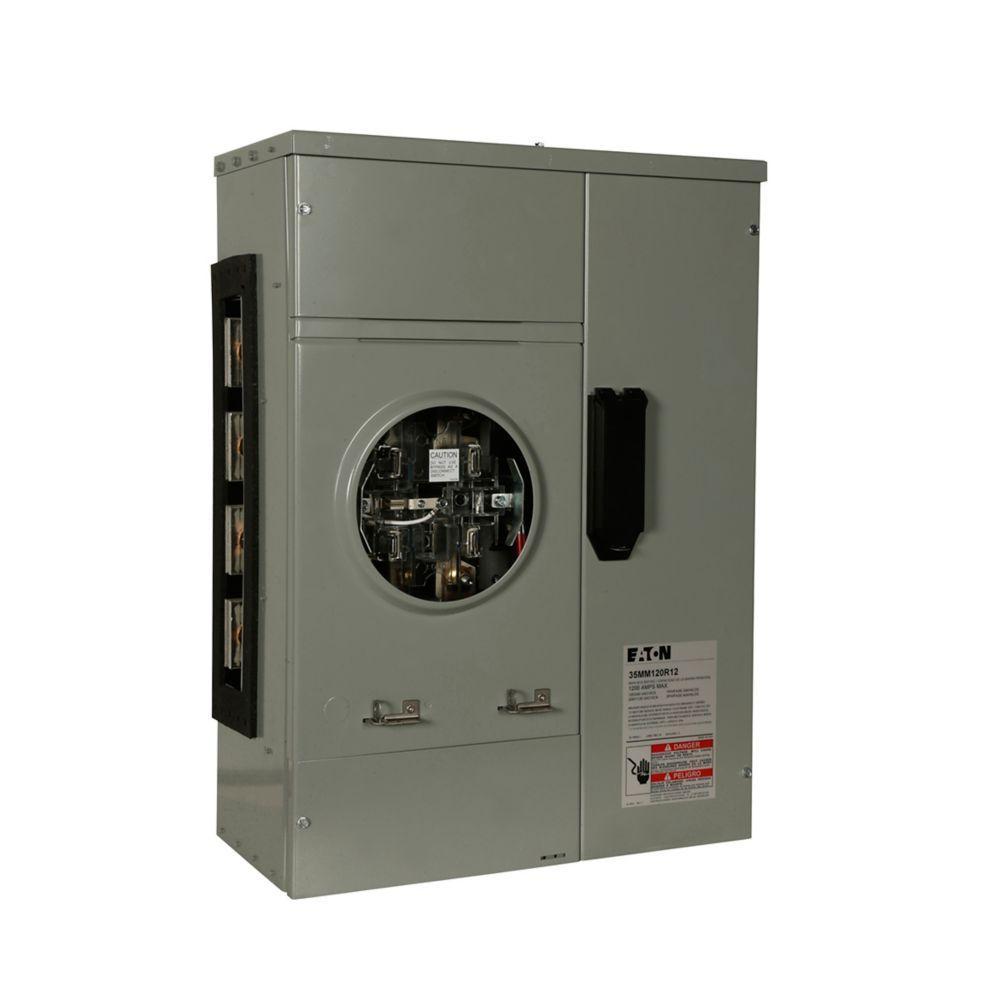

35MM140R1240300 CH 1 PHASE, 5 JAW COMM METER MODULE, 1 SOCKET, 300A TENANT

Mouse over image to zoom, click to enlarge

  • 35MM140R1240300 CH 1 PHASE, 5 JAW COMM METER MODULE, 1 SOCKET, 300A TENANT
  • 35MM140R1240300 CH 1 PHASE, 5 JAW COMM METER MODULE, 1 SOCKET, 300A TENANT

Description: EATON Meter Stack Module, 1-Meter 5-Jaw Plug-In, 120/240 VAC, 400 A, 3 ph, 4 Wires, 100 A Short Circuit, Bus Bar Connection, Galvanized Steel, Rail Mounting, NEMA 3R Enclosure, 25.38 in H x 18.25 in W x 8.75 in D Dimensions

Manufacturer PN: 35MM140R1240300

UPC:  78211699542

Kendall Electric Inc PN: 4347851

Invoice Description:

35MM140R1240300 CH 1 PHASE, 5 JAW COMM METER MODULE, 1 SOCKET, 300A TENANT


SPEC SHEET

▸ See All in Meter Stack Modules


How Can We Make This Page Better?

EATON 35MM140R1240300 1-Meter 5-Jaw Plug-In Meter Stack Module With Ringless Style Cover and Lever Bypass, 120/240 VAC, 400 A, 3 Phase, 4 Wires, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Commercial Meter Stacks provide users with quick, flexible, and easy installation. The combination indoor / outdoor durable enclosures make them ideal for applications such as strip malls, office complexes, and industrial parks. These unique meter stacks can also be mounted with 1MM/3MM modules to allow for numerous different arrangements in how they are bolted together. Eaton’s Commercial Meter Stacks are UL listed, meet EUSERC electrical requirements, and are suitable for use as service entrance equipment, meaning there is no need to purchase more equipment or use add-ons.
EATON Meter Stack Module, 1-Meter 5-Jaw Plug-In, 120/240 VAC, 400 A, 3 ph, 4 Wires, 100 A Short Circuit, Bus Bar Connection, Galvanized Steel, Rail Mounting, NEMA 3R Enclosure, 25.38 in H x 18.25 in W x 8.75 in D Dimensions

Specifications

 Amperage Rating 400 A
 Application Outdoor and Commercial Applications
 Brand Name EATON
 Connection Type Bus Bar
 Dimensions 25.38 in H x 18.25 in W x 8.75 in D
 Enclosure NEMA 3R
 Includes (1) 300 A Breaker
 Manufacturer Part Number 35MM140R1240300
 Material Galvanized Steel
 Mounting Type Rail
 Number of Wires 4
 Phase 3
 Short Circuit Current Rating 100 A
 Standards/Approvals UL Listed
 Type 1-Meter 5-Jaw Plug-In
 Voltage Rating 120/240 VAC

Features

▪ Mechanically and electrically built to bolt up with main service modules and residential modular metering stacks
▪ 3-phase in and 1-phase out design
▪ End walls the top cap is removable and does not contain knockouts, so contractors can position and punch holes where they need them, there are numerous knockouts in the back and bottom for flexibility
▪ The factory installed equipment ground bars are provided in both top and bottom gutters
▪ If work on the breakers or cables is necessary, it can be accomplished without disturbing the meters or meter covers, thanks to a separate cover that allows easy access to the module's main tenant breaker and wireway section
▪ A solid metal barrier separates the meter socket section from the tenant breaker in the wireway section and the unmetered vertical bus is enclosed to guard against power theft
▪ Neutral assembly is located in the wireway of each module, the assembly permits convenient termination of the neutral conductors
▪ Non-removable metal barrier encloses 1200 A horizontal aluminum bus when passing through the tenant breaker section for added security
▪ Raintight caps, meter covers and lockable raintight tenant breaker cover
▪ Rear mounting rail and wall hanger speed and simplify installation
▪ Mains and modules slip together quickly and smoothly with front accessible captive bolts securing the juncture without removing socket interiors or bus access plate

Resources

 Catalog Page
 Product Data Sheet
