Meltric Corporation

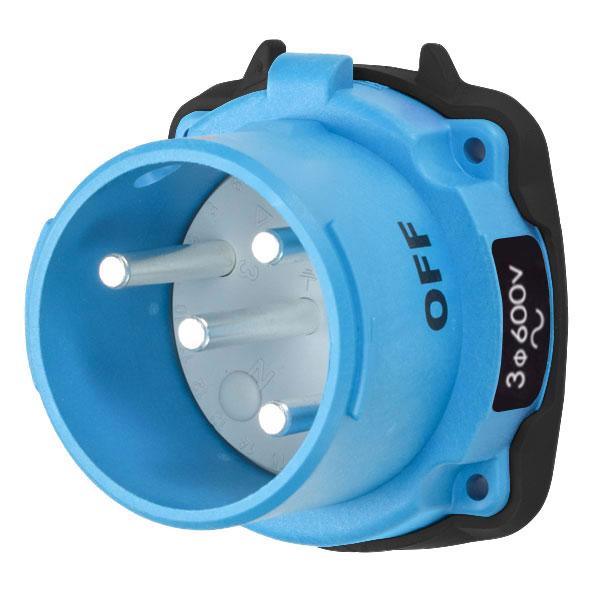

33-38143-4X MELTRIC DS30 INLET

Mouse over image to zoom, click to enlarge

  • 33-38143-4X MELTRIC DS30 INLET
  • 33-38143-4X MELTRIC DS30 INLET

Description: MELTRIC DECONTACTOR™ Switch Rated Inlet, Male Watertight, Series: DS30, 347/600 V AC, 30 A, 15 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X, IP54 Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 3.23 in H x 2.8 in D Dimensions

Manufacturer PN: 33-38143-4X

UPC:  78447464402

Kendall Electric Inc PN: 3954074

Invoice Description:

33-38143-4X MELTRIC DS30 INLET

▸ See All in Pin & Sleeve Inlets


How Can We Make This Page Better?

MELTRIC DECONTACTOR™ 33-38143-4X DS30 Male Watertight Switch Rated Inlet, 347/600 V AC, 30 A, 3 Poles, 4 Wires, Blue

Log In for Pricing and Availability




Description

DS Series DECONTACTOR™ provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
MELTRIC DECONTACTOR™ Switch Rated Inlet, Male Watertight, Series: DS30, 347/600 V AC, 30 A, 15 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 4X, IP54 Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 3.23 in H x 2.8 in D Dimensions

Specifications

 Amperage Rating 30 A
 Application Industrial and High hp Motor Applications
 Brand Name MELTRIC
 Color Blue
 Dimensions 3.23 in H x 2.8 in D
 Enclosure IP54
 Frequency Rating 60 Hz
 Horsepower 15 hp
 Manufacturer Part Number 33-38143-4X
 Material PBT
 NEMA Rating NEMA 4X
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS 33-38143-4X ; 33381434X ; 784474644020 ; 78447464402 ; 00784474644020
 Series DS30
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|CSA C22.2 No. 182.1|IEC 60309-1
 Temperature Rating -40 to 140 deg F
 Terminal Type Screw
 Type Male Watertight
 Voltage Rating 347/600 V AC

Features

▪ Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
▪ Lockout tagout provisions allows plug to be easily locked out and tagged
▪ Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
▪ 15 hp at 600 VAC 3-phase horsepower rating
