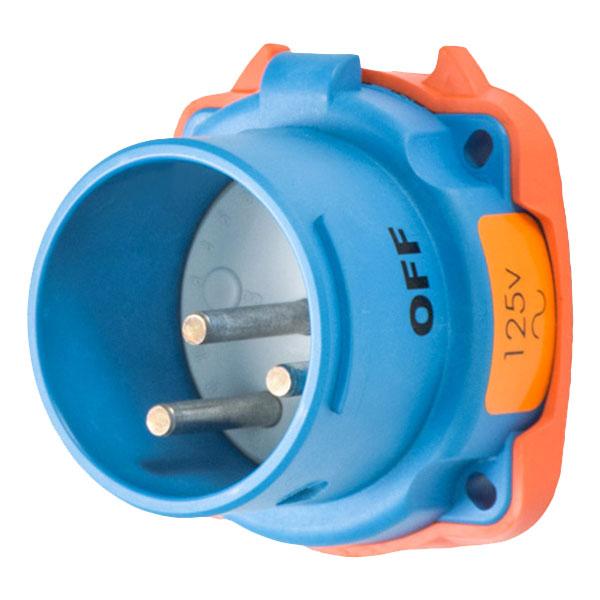

33-18075-4X MELTRIC DS20 INLET

Mouse over image to zoom, click to enlarge

  • 33-18075-4X MELTRIC DS20 INLET
  • 33-18075-4X MELTRIC DS20 INLET

Description: MELTRIC DECONTACTOR™ Switch Rated Inlet, Male Watertight, Series: DS20, 110/125/220/250 V AC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 4X, IP54 Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 2.79 in H x 2.55 in D Dimensions

Manufacturer PN: 33-18075-4X

UPC:  78447464475

Kendall Electric Inc PN: 3473191

Invoice Description:

33-18075-4X MELTRIC DS20 INLET

▸ See All in Pin & Sleeve Inlets


How Can We Make This Page Better?

MELTRIC DECONTACTOR™ 33-18075-4X DS20 Male Watertight Switch Rated Inlet, 110/125/220/250 V AC, 20 A, 2 Poles, 3 Wires, Blue

Log In for Pricing and Availability




Description

DS Series DECONTACTOR™ provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
MELTRIC DECONTACTOR™ Switch Rated Inlet, Male Watertight, Series: DS20, 110/125/220/250 V AC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 4X, IP54 Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 2.79 in H x 2.55 in D Dimensions

Specifications

 Amperage Rating 20 A
 Application Industrial and High hp Motor Applications
 Brand Name MELTRIC
 Color Blue
 Dimensions 2.79 in H x 2.55 in D
 Enclosure IP54
 Frequency Rating 60 Hz
 Manufacturer Part Number 33-18075-4X
 Material PBT
 NEMA Rating NEMA 4X
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 33-18075-4X ; 33180754X ; 784474644754 ; 78447464475 ; 00784474644754
 Series DS20
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|CSA C22.2 No. 182.1|IEC 60309-1
 Temperature Rating -40 to 140 deg F
 Terminal Type Screw
 Type Male Watertight
 Voltage Rating 110/125/220/250 V AC

Features

▪ Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
▪ Lockout tagout provisions allows plug to be easily locked out and tagged
▪ Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
