Southwire Company

32522106 GENESIS-CABLE 22/1 PR STR CMP 1M RLBX BLU

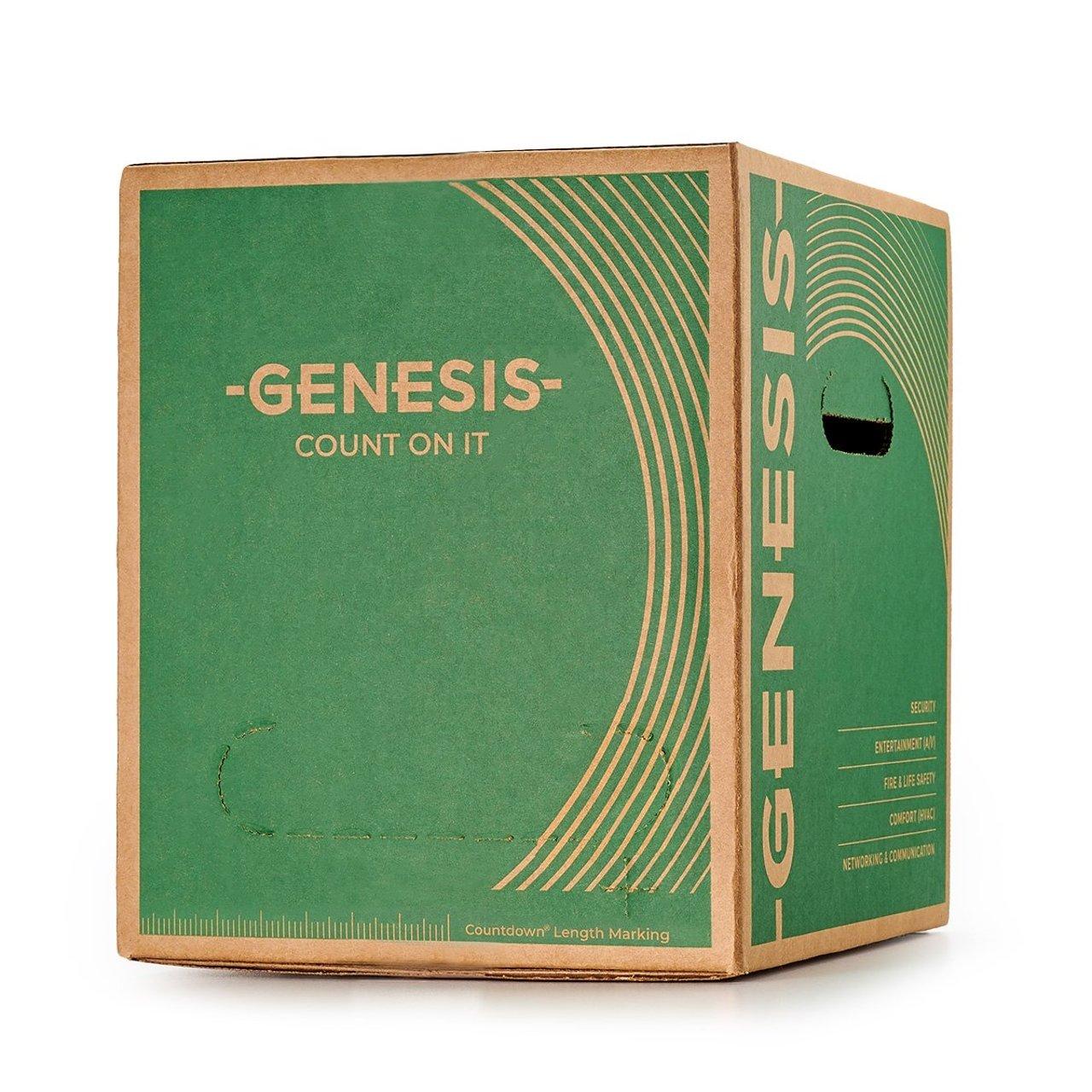

Mouse over image to zoom, click to enlarge

Description: Genesis Cable, 32522106, Wire and Cable, Multipurpose, Series: 3252, Reel-in-Box Packaging, 300 V, 2 Conductors, Stranded Conductor, 22 AWG Conductor, 0.120 in OD, 1000 ft Length, 7 Strands, 16.9 Ohm/1000 ft at 20 deg C Resistance, FEP Insulation, Plenum PVC Jacket, Blue Jacket, -20 to 75 deg C

Manufacturer PN: 32522106

UPC: 78141091679

Kendall Electric Inc PN: 3438081

Invoice Description:

32522106 GENESIS-CABLE 22/1 PR STR CMP 1M RLBX BLU

SPEC SHEET

▸ See All in Paired-Conductor Cables - Shielded

How Can We Make This Page Better?

Genesis Cable 32522106 3252 Multipurpose Wire and Cable, Reel-in-Box Packaging, 300 V, (2) Conductors 22 AWG Conductor Stranded Conductor, 1000 ft L

Note: Lead times are estimates only

Description Specifications Features Resources

Description

Genesis Cable, 32522106, Wire and Cable, Multipurpose, Series: 3252, Reel-in-Box Packaging, 300 V, 2 Conductors, Stranded Conductor, 22 AWG Conductor, 0.120 in OD, 1000 ft Length, 7 Strands, 16.9 Ohm/1000 ft at 20 deg C Resistance, FEP Insulation, Plenum PVC Jacket, Blue Jacket, -20 to 75 deg C

Specifications

Application	For HVAC Systems
Brand Name	Genesis Cable
Conductor Size	22 AWG
Conductor Type	Stranded
Insulation Material	FEP
Jacket Color	Blue
Jacket Material	Plenum PVC
Length	1000 ft
Manufacturer Part Number	32522106
Number of Conductors	2
Resistance	16.9 Ohm/1000 ft at 20 deg C
Series	3252
Strands	7
Temperature Rating	-20 to 75 deg C
Type	Multipurpose
Voltage Rating	300 V
