Stanley Black & Decker

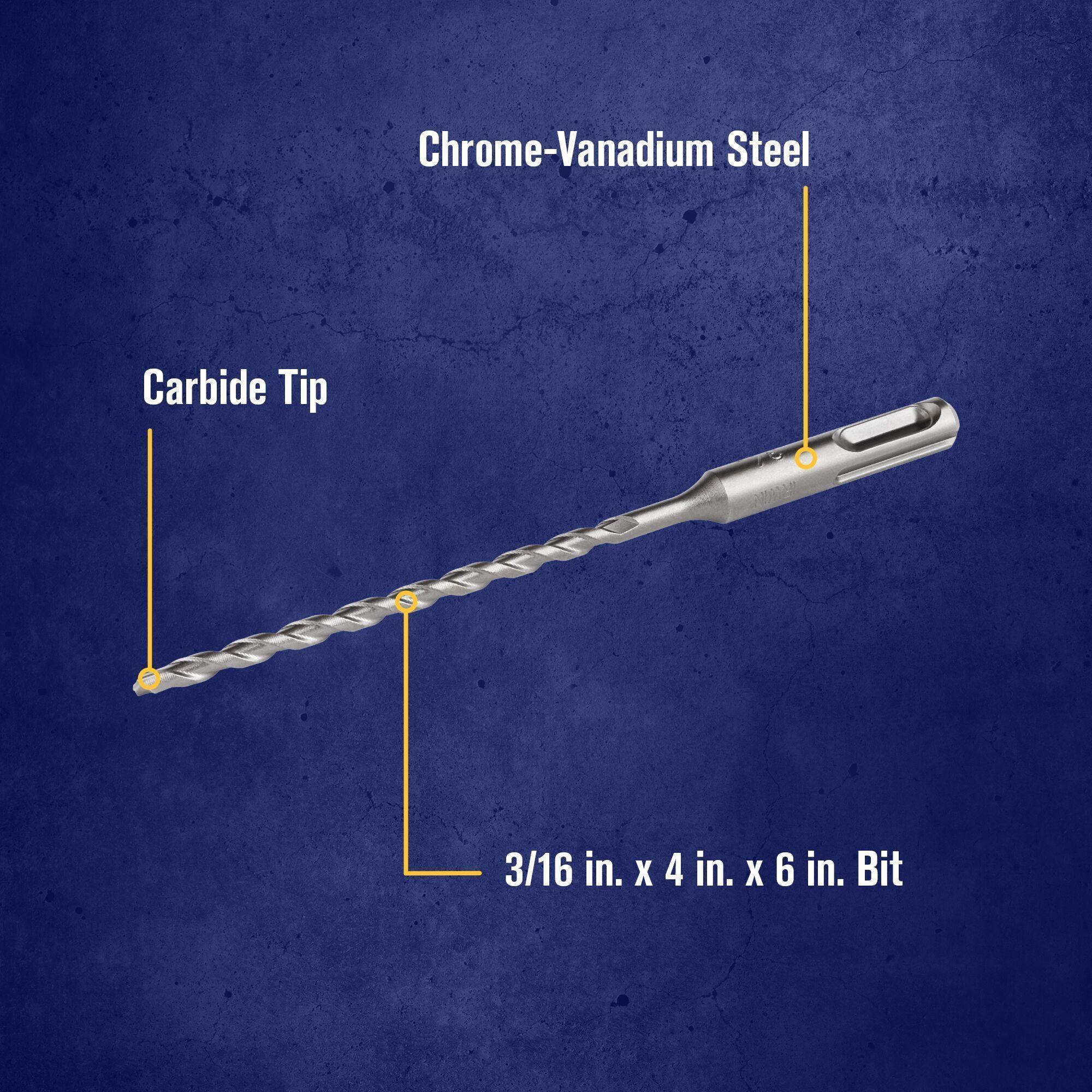

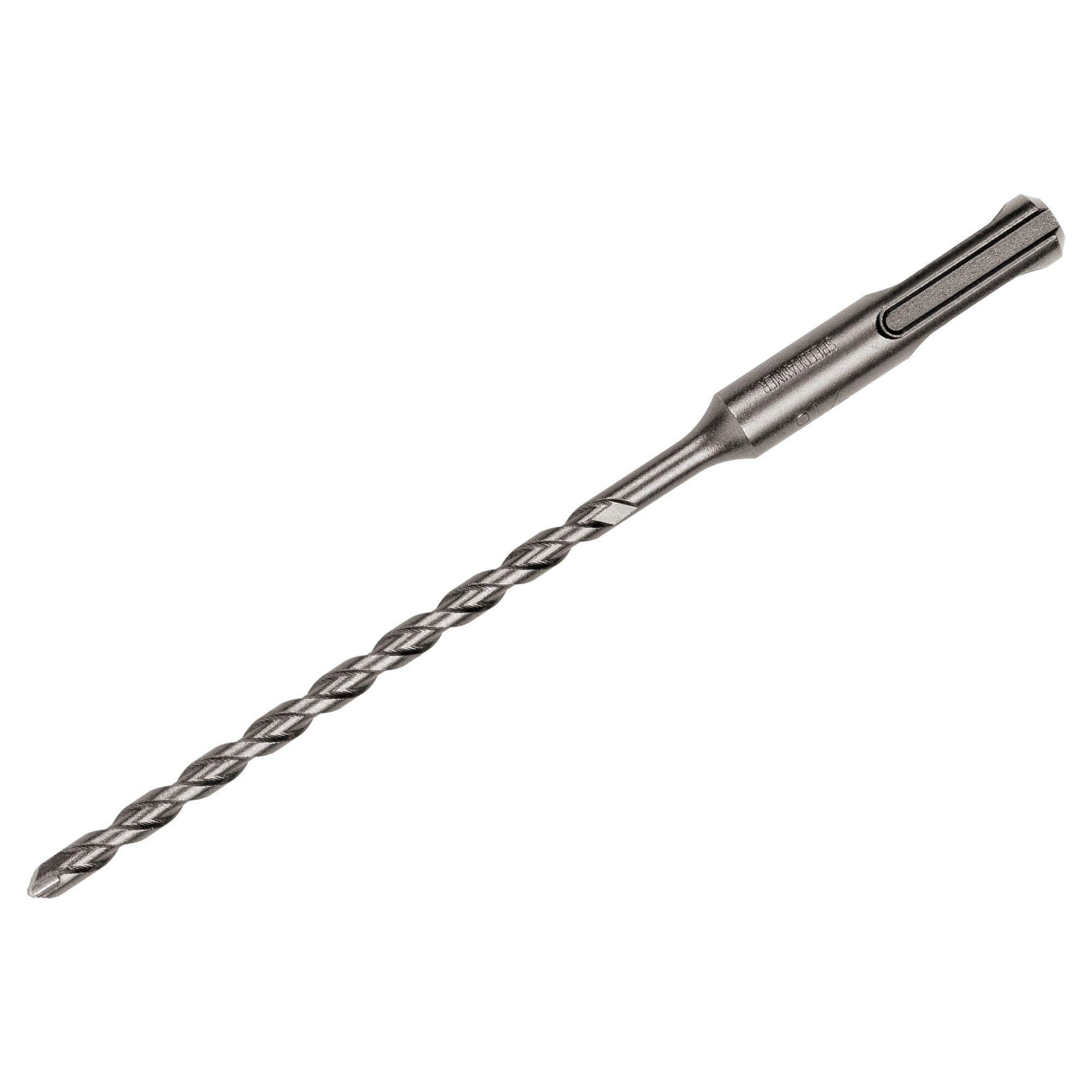

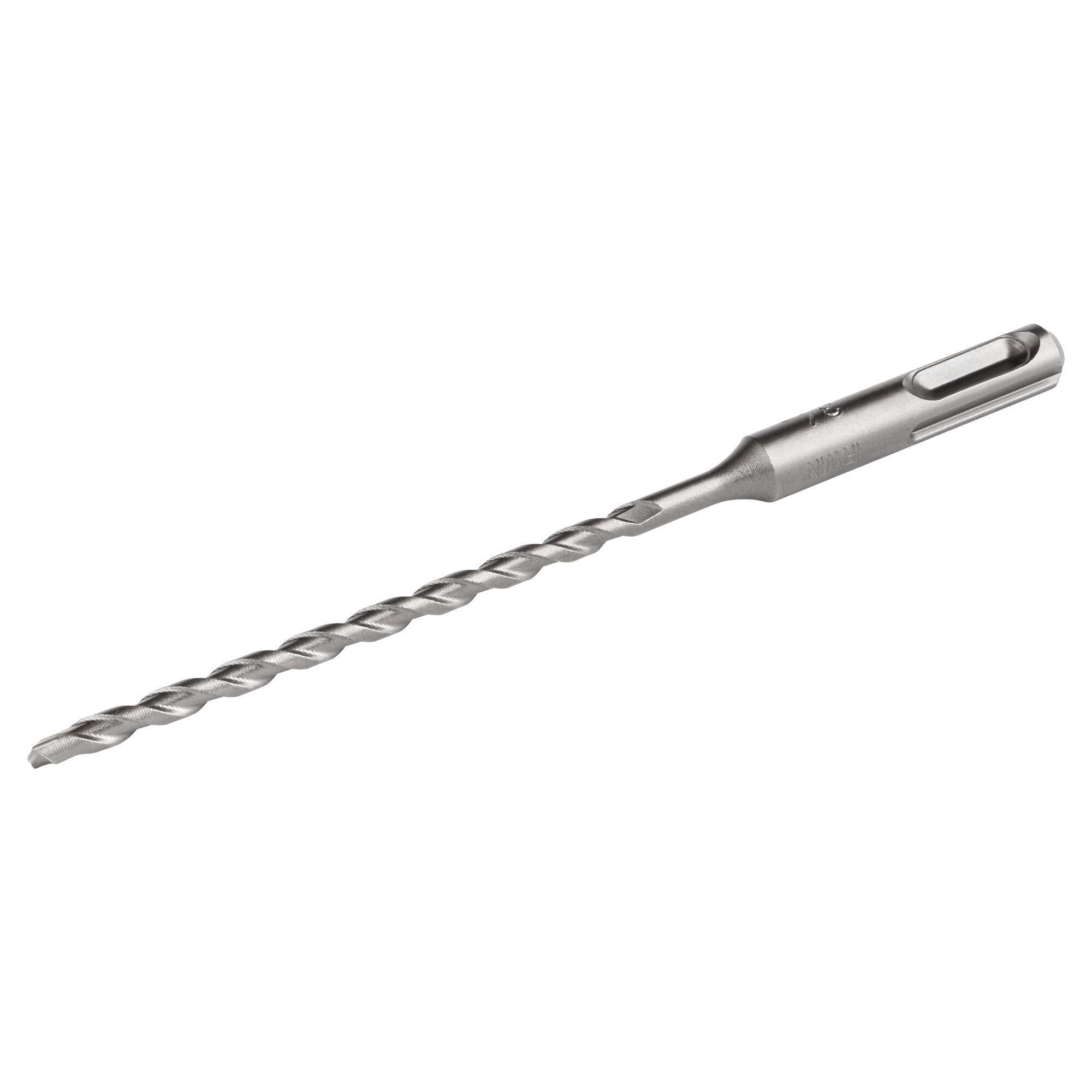

322004 IRWIN DRILL BIT, 3/16 X 4 X 6 SPEEDHAMMER PLUS

Mouse over image to zoom, click to enlarge

  • 322004 IRWIN DRILL BIT, 3/16 X 4 X 6 SPEEDHAMMER PLUS
  • 322004 IRWIN DRILL BIT, 3/16 X 4 X 6 SPEEDHAMMER PLUS
  • 322004 IRWIN DRILL BIT, 3/16 X 4 X 6 SPEEDHAMMER PLUS
  • 322004 IRWIN DRILL BIT, 3/16 X 4 X 6 SPEEDHAMMER PLUS
  • 322004 IRWIN DRILL BIT, 3/16 X 4 X 6 SPEEDHAMMER PLUS

Description: Irwin® Hammer Drill Bit, 2-Cutter, Series: SpeedHammer™ Plus, 3/16 in Drill Bit, Drilling, 6 in Overall Length, 4 in Cutting Depth, 1 Flutes, Spiral Flute, 4 in Flute Length, 3/16 in Shank, SDS-Plus®/Straight Shank, Standard Point, Right Hand Cutting Direction, Carbide Cutting Edge, Chrome Vanadium Spring Steel, Applicable Materials: Masonry

Manufacturer PN: 322004

UPC:  02472100143

Kendall Electric Inc PN: 3274657

Invoice Description:

322004 IRWIN DRILL BIT, 3/16 X 4 X 6 SPEEDHAMMER PLUS

▸ See All in Hammer Drill Bits


How Can We Make This Page Better?

Irwin® 322004 SpeedHammer™ Plus 2-Cutter Hammer Drill Bit, 3/16 in Drill Bit, 3/16 in SDS-Plus®/Straight Shank, 4 in D Cutting, Carbide Cutting Edge, 6 in OAL

Log In for Pricing and Availability




Description

Irwin® Hammer Drill Bit, 2-Cutter, Series: SpeedHammer™ Plus, 3/16 in Drill Bit, Drilling, 6 in Overall Length, 4 in Cutting Depth, 1 Flutes, Spiral Flute, 4 in Flute Length, 3/16 in Shank, SDS-Plus®/Straight Shank, Standard Point, Right Hand Cutting Direction, Carbide Cutting Edge, Chrome Vanadium Spring Steel, Applicable Materials: Masonry

Specifications

 Applicable Materials Masonry
 Application For masonry drilling applications
 Brand Name Irwin®
 Cutting Depth 4 in
 Cutting Direction Right Hand
 Cutting Edge Material Carbide
 Drill Bit Function Drilling
 Drill Bit Size 16-Mar in
 Flute Length 4 in
 Flute Type Spiral
 Manufacturer Part Number 322004
 Material Chrome Vanadium Spring Steel
 Number of Flutes 1
 Overall Length 6 in
 Point Type Standard
 Series SpeedHammer™ Plus
 Shank Size 16-Mar in
 Shank Type SDS-Plus®/Straight
 Standards/Approvals ANSI Specified
 Type 2-Cutter

Features

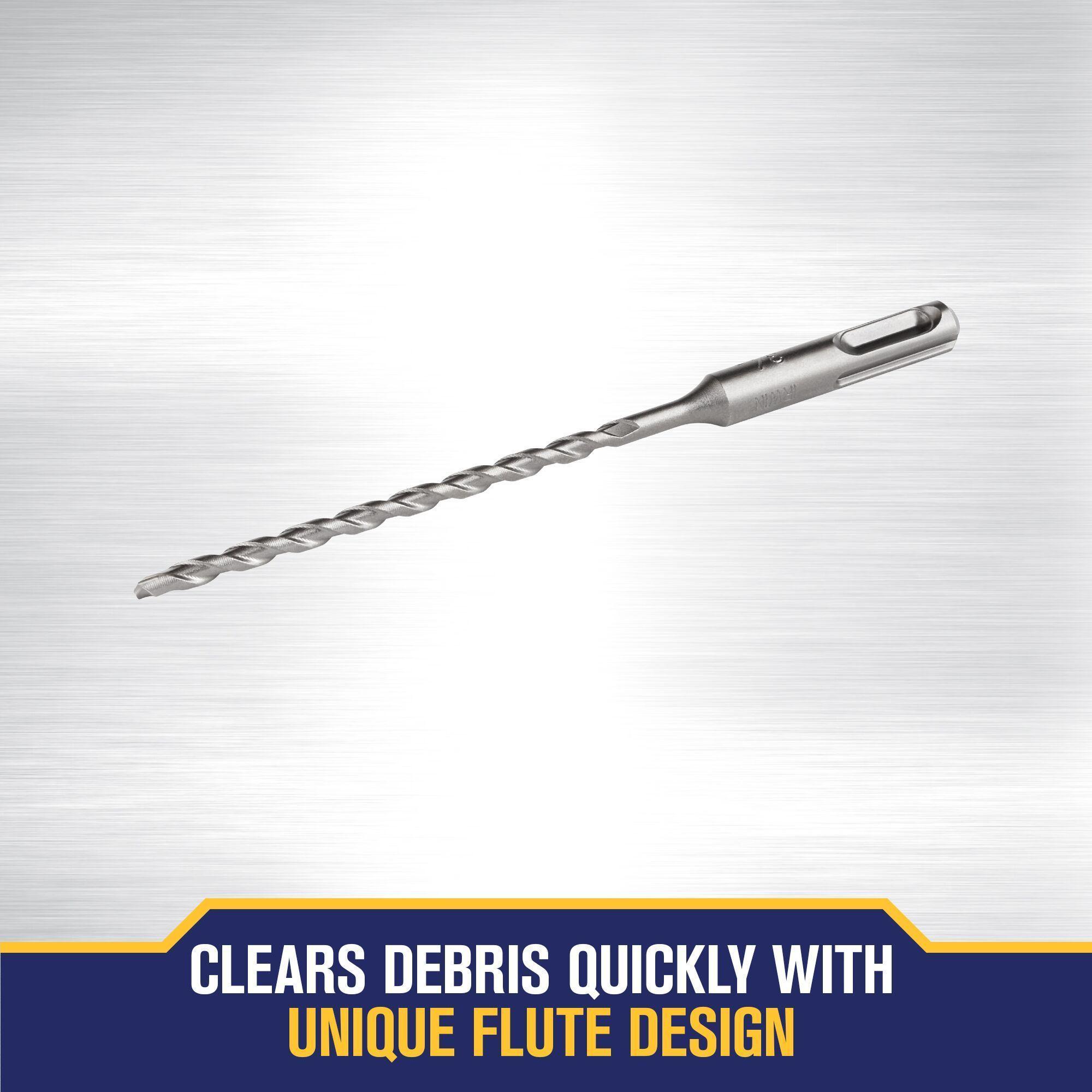

▪ Unique flute design clears debris quickly, reducing clogging, minimizing vibration and increasing overall drilling speed and bit life
▪ Fits all SDS-Plus® and Hilti TE-C rotary hammers
▪ The chrome vanadium spring steel shaft is hardened to 50 to 53 HRC to extend the life of the bit
▪ Reduced area above the flute prevents the drill bit from binding while drilling the full usable length can be utilized
▪ Patented tip and flute design removes dust more efficiently up to 25% faster than other bits
▪ Shot peened, double tempered finish reduces breakage
▪ Hot isostatically pressed to extend life and resist breakage
▪ Copper braze material gives high heat resistance for reduced tip loss
▪ Patented carbide tip design cuts fast and is self-centering for simple, controlled starts
▪ Short drilling head forces debris into flute for faster penetration speed and extended bit life and reduces breakout when drilling through holes
