Eaton
  • 315NHG2B BUSSMANN NH FUSE 315A 500V GG/GL SIZE-2 (3) 05171262617
  • 315NHG2B BUSSMANN NH FUSE 315A 500V GG/GL SIZE-2 (3) 05171262617
  • 315NHG2B BUSSMANN NH FUSE 315A 500V GG/GL SIZE-2 (3) 05171262617
  • 315NHG2B BUSSMANN NH FUSE 315A 500V GG/GL SIZE-2 (3) 05171262617
  • 315NHG2B BUSSMANN NH FUSE 315A 500V GG/GL SIZE-2 (3) 05171262617
  • 315NHG2B BUSSMANN NH FUSE 315A 500V GG/GL SIZE-2 (3) 05171262617

Description: Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 2 Lead Free, Series: NHG, 500 V, 315 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic, 150 mm L x 60 mm W

Manufacturer PN: 315NHG2B

UPC:  05171262617

Kendall Electric Inc PN: 3453472

Invoice Description:

315NHG2B BUSSMANN NH FUSE 315A 500V GG/GL SIZE-2 (3) 05171262617


SPEC SHEET

▸ See All in Fuse Links


How Can We Make This Page Better?

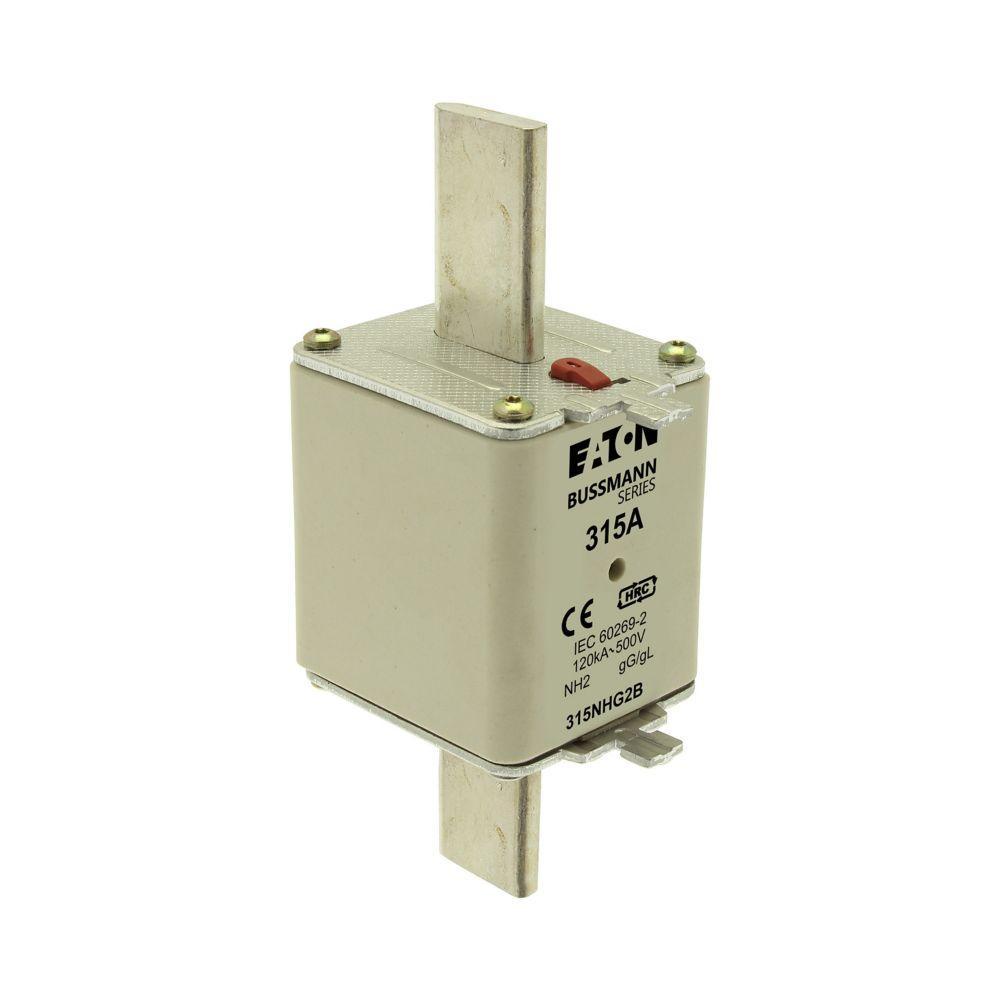

Bussmann 315NHG2B Dual Indicator Low Voltage Size 2 NH Fuse Link With Metal Live Gripping Lugs, 500 V, 315 A, For Use With Class C/gG/gL Fuse, Ceramic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 2 Lead Free, Series: NHG, 500 V, 315 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: Class C/gG/gL Fuse, Ceramic, 150 mm L x 60 mm W

Specifications

 Amperage Rating 315 A
 Application Commercial, Institutional Buildings, Structures, Electrical Assemblies, Panel, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems
 Brand Name Bussmann
 Dimensions 150 mm L x 60 mm W
 Frequency Rating 45 to 62 Hz
 Manufacturer Part Number 315NHG2B
 Material Ceramic
 Mounting Type Holder
 PART NUMBER KEYWORDS 315NHG2B ; 19797820 ; 10517598 ; 051712626170 ; 51712626170 ; 05171262617 ; 5027590420587 ; 00051712626170
 Rated Breaking Capacity 120 kAIC
 Series NHG
 Standards/Approvals IEC 60269-1 ,DIN 43620 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-2 ,IEC 60269-1 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2,RoHS Compliant,CE Marked,Conformité RoHS,Marquage CE,CE-Kennzeichnung,RoHS-konform,CE-markering,RoHS-compliant,Con marchio CE,Conforme a RoHS,CE-märkt,RoHS-Certified,RoHS-kompatibel,CE-merket
 Suitable For Use With Class C/gG/gL Fuse
 Type Dual Indicator Low Voltage Size 2
 Video Links
 Voltage Rating 500 V

Features

▪ Voltage conducting metal live gripping lugs
▪ Reliable dual indicator system
▪ Low temperature rise
▪ Globally compliant
▪ Steatite insulator, corrosion resistant aluminum end plates and plated steel screws, full contact silver plated brass blade construction
▪ Cadmium and lead free
