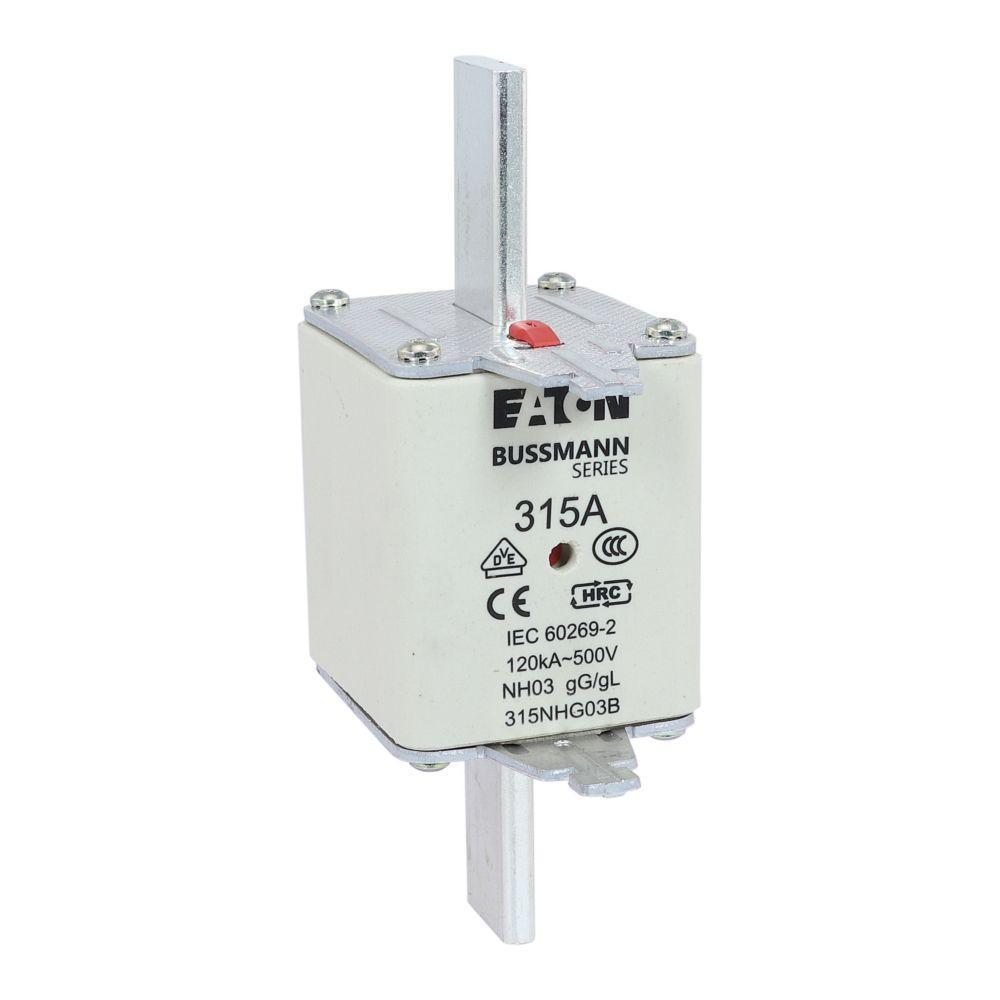

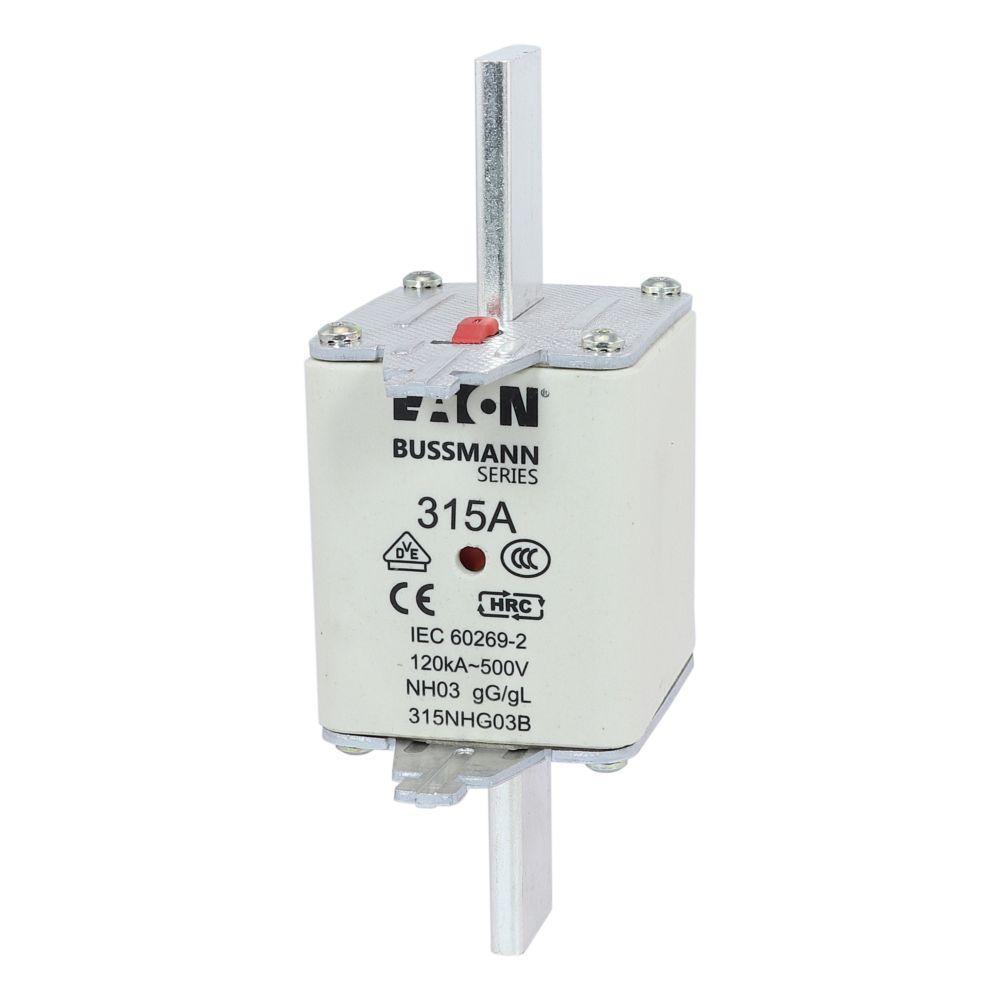

Description: Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 03, Series: NHG, 500 V, 315 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic

Manufacturer PN: 315NHG03B

UPC:  05171262621

Kendall Electric Inc PN: 3944923

Invoice Description:

315NHG03B BUSSMANN NH FUSE 315A 500V GG/GL SIZE 03


SPEC SHEET

▸ See All in Fuse Links


How Can We Make This Page Better?

Bussmann 315NHG03B Dual Indicator Low Voltage Size 03 NH Fuse Link, 500 V, 315 A, For Use With Class C gG/gL Fuse, Ceramic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Bussmann NH Fuse Link, Dual Indicator Low Voltage Size 03, Series: NHG, 500 V, 315 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic

Specifications

 Amperage Rating 315 A
 Application Electrical Assemblies, Panels and EOEMs, Control Panels for Machines, Aftermarket, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems Applications
 Brand Name Bussmann
 Frequency Rating 45 to 62 Hz
 Manufacturer Part Number 315NHG03B
 Material Ceramic
 Mounting Type Holder
 PART NUMBER KEYWORDS 315NHG03B ; 10517597 ; 051712626217 ; 51712626217 ; 05171262621 ; 00051712626217 ; 5027590476362
 Rated Breaking Capacity 120 kA
 Series NHG
 Standards/Approvals CCC Certified|CE Marking|RoHS Compliant|UL Listed
 Suitable For Use With Class C gG/gL Fuse
 Type Dual Indicator Low Voltage Size 03
 Video Links
 Voltage Rating 500 V

Features

▪ Square body with knife blade contact
▪ Live gripping lugs
