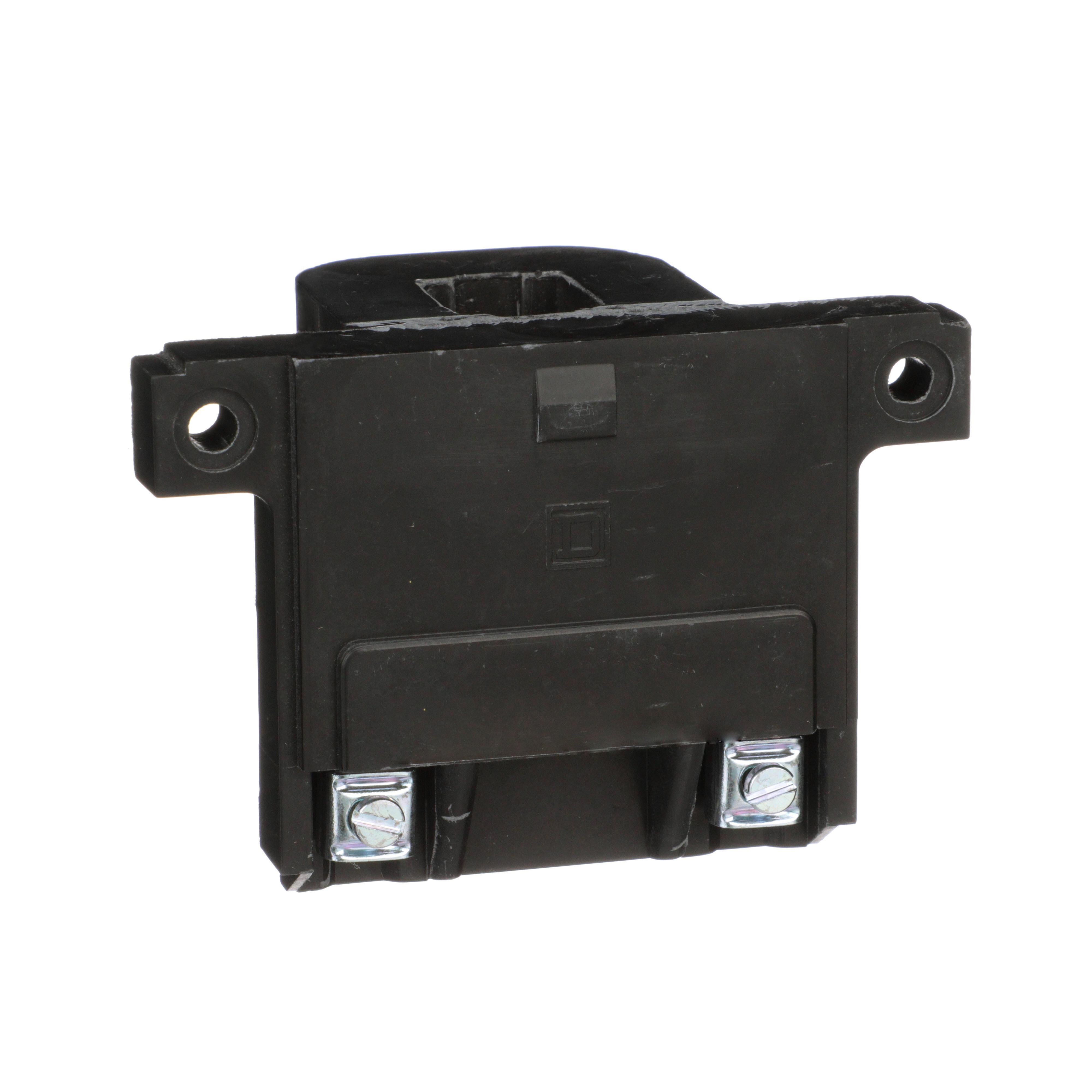

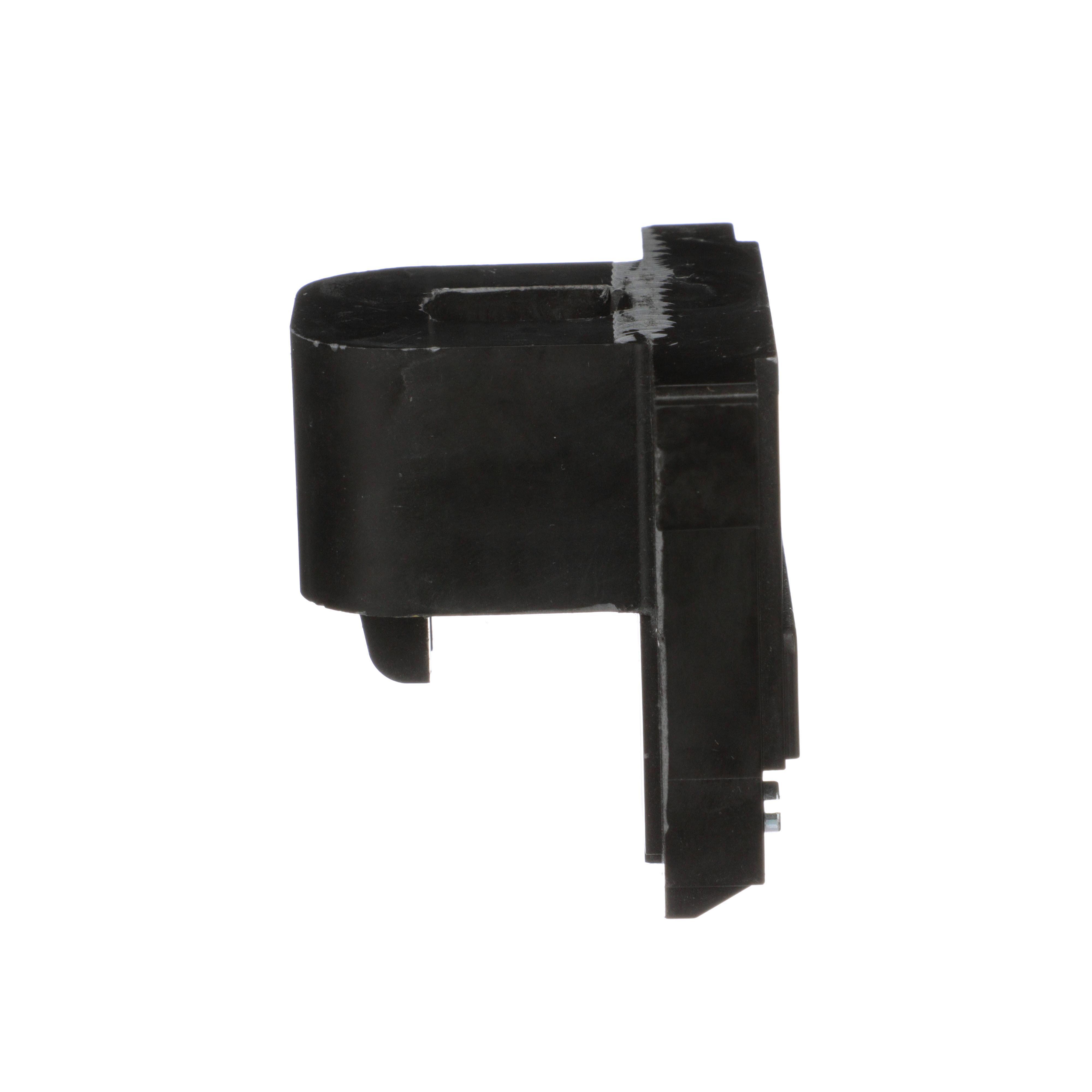

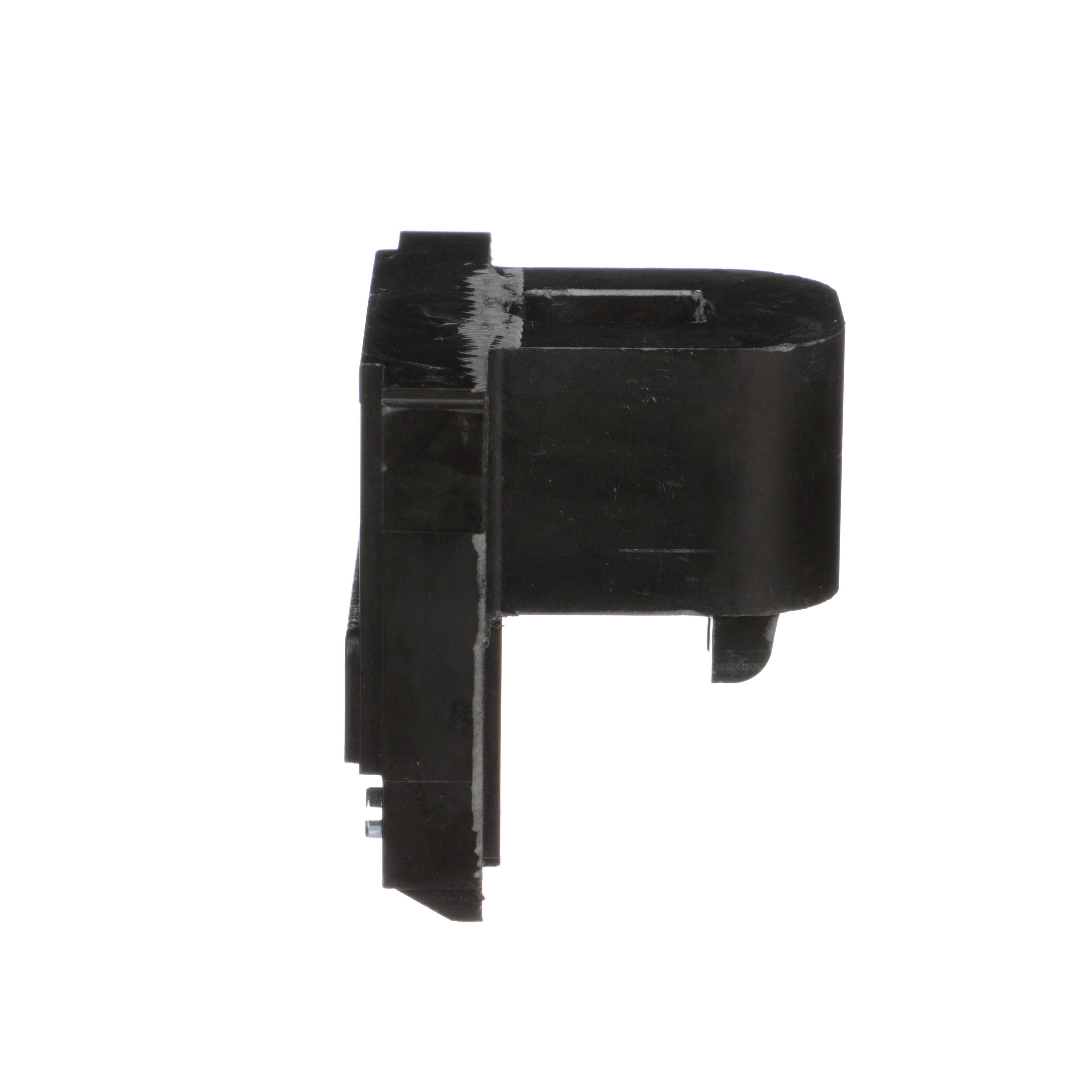

Description: Square D™ Replacement Coil, For Use with: Type SA Series A/SB/SC/SM NEMA 00/0/1/1-P 30A 24 V AC at 60 Hz Screw Clamp Connection Magnetic Contactor and Starter, Surface Mount, 3.21 in W x 1.9 in D x 2.15 in H

Manufacturer PN: 3104140020

UPC:  78590139525

Kendall Electric Inc PN: 3958572

Invoice Description:

3104140020 SQD CONTACTOR STARTER


SPEC SHEET

▸ See All in Motor Control Miscellaneous Accessories


How Can We Make This Page Better?

Square D™ 3104140020 Replacement Coil, For Use With Type SA Series A/SB/SC/SM NEMA 00/0/1/1-P 30A 24 V AC at 60 Hz Screw Clamp Connection Magnetic Contactor and Starter, Surface Mount

Log In for Pricing and Availability




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

The coil can be easily replaced in Type S contactors or starters. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SA, series A, 8502SB, or 8502SC contactor, in an 8536SA, series A, 8536SB, or 8536SC starter or an 8903SM lighting contactor. This coil is rated for 24 VAC 60 Hz. The inrush power of this coil is 245 VA. It has an average sealed consumption of 27 VA. This coil has a height of 54.7 mm, a width of 81.5 mm and a depth of 48.3 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Square D™ Replacement Coil, For Use with: Type SA Series A/SB/SC/SM NEMA 00/0/1/1-P 30A 24 V AC at 60 Hz Screw Clamp Connection Magnetic Contactor and Starter, Surface Mount, 3.21 in W x 1.9 in D x 2.15 in H

Specifications

 Application Contactors and Starters Applications
 Brand Name Square D
 Dimensions 3.21 in W x 1.9 in D x 2.15 in H
 Manufacturer Part Number 3104140020
 Specifications Surface Mount
 Standards/Approvals CSA Certified|ECCN: EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
 Suitable For Use With Type SA Series A/SB/SC/SM NEMA 00/0/1/1-P 30A 24 V AC at 60 Hz Screw Clamp Connection Magnetic Contactor and Starter
