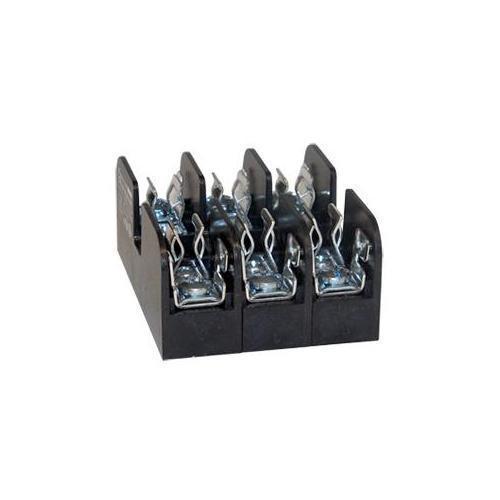

30323 MERSEN 30A-600V-3P PLT FUSEBLK

Mouse over image to zoom, click to enlarge

  • 30323 MERSEN 30A-600V-3P PLT FUSEBLK
  • 30323 MERSEN 30A-600V-3P PLT FUSEBLK

Description: Mersen Fuse Block, Open Style, Series: 303, 600 V AC/DC, 30 A, 3 Pole, 3 ph, Class: Midget, Pressure Plate/Double Quick-Connect Connection, 14 to 10 AWG Wire, DIN Rail/Threaded Mounting, 1-1/2 in Fuse Length, 13/32 in Diameter Fuse, 125 deg C, For Use With: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A15QS-2, GFN, GGU, A60Q-2, DCT Series Fuse, Glass Reinforced Polycarbonate, 2.35 in W x 1.31 in D x 3.04 in H Dimensions

Manufacturer PN: 30323

UPC:  78200175826

Kendall Electric Inc PN: 29074

Invoice Description:

30323 MERSEN 30A-600V-3P PLT FUSEBLK


SPEC SHEET

▸ See All in Midget Fuse Blocks


How Can We Make This Page Better?

Mersen 30323 Open Style Fuse Block, 600 V AC/DC, 30 A, 14 to 10 AWG Wire, 3 Poles

Log In for Pricing and Availability




Description

Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Mersen Fuse Block, Open Style, Series: 303, 600 V AC/DC, 30 A, 3 Pole, 3 ph, Class: Midget, Pressure Plate/Double Quick-Connect Connection, 14 to 10 AWG Wire, DIN Rail/Threaded Mounting, 1-1/2 in Fuse Length, 13/32 in Diameter Fuse, 125 deg C, For Use With: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A15QS-2, GFN, GGU, A60Q-2, DCT Series Fuse, Glass Reinforced Polycarbonate, 2.35 in W x 1.31 in D x 3.04 in H Dimensions

Specifications

 Amperage Rating 30 A
 Brand Name Mersen
 Class Midget
 Connection Type Pressure Plate/Double Quick-Connect
 Dimensions 2.35 in W x 1.31 in D x 3.04 in H
 Fuse Diameter 13/32 in
 Fuse Length 1-1/2 in
 Manufacturer Part Number 30323
 Material Glass Reinforced Polycarbonate
 Mounting Type DIN Rail/Threaded
 Number of Poles 3
 PART NUMBER KEYWORDS 30323 ; 7694424 ; 782001758264 ; 78200175826 ; 00782001758264
 Phase 3
 Series 303
 Standards/Approvals RoHS Compliant|UL 4248-14 Guide IZLT File no. E52283|CSA C22.2 Class 6225/32169
 Suitable For Use With ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A15QS-2, GFN, GGU, A60Q-2, DCT Series Fuse
 Temperature Rating 125 deg C
 Type Open Style
 Voltage Rating 600 V AC/DC

Features

▪ 20 in-lb torque rating
▪ Tin-plated copper contact
