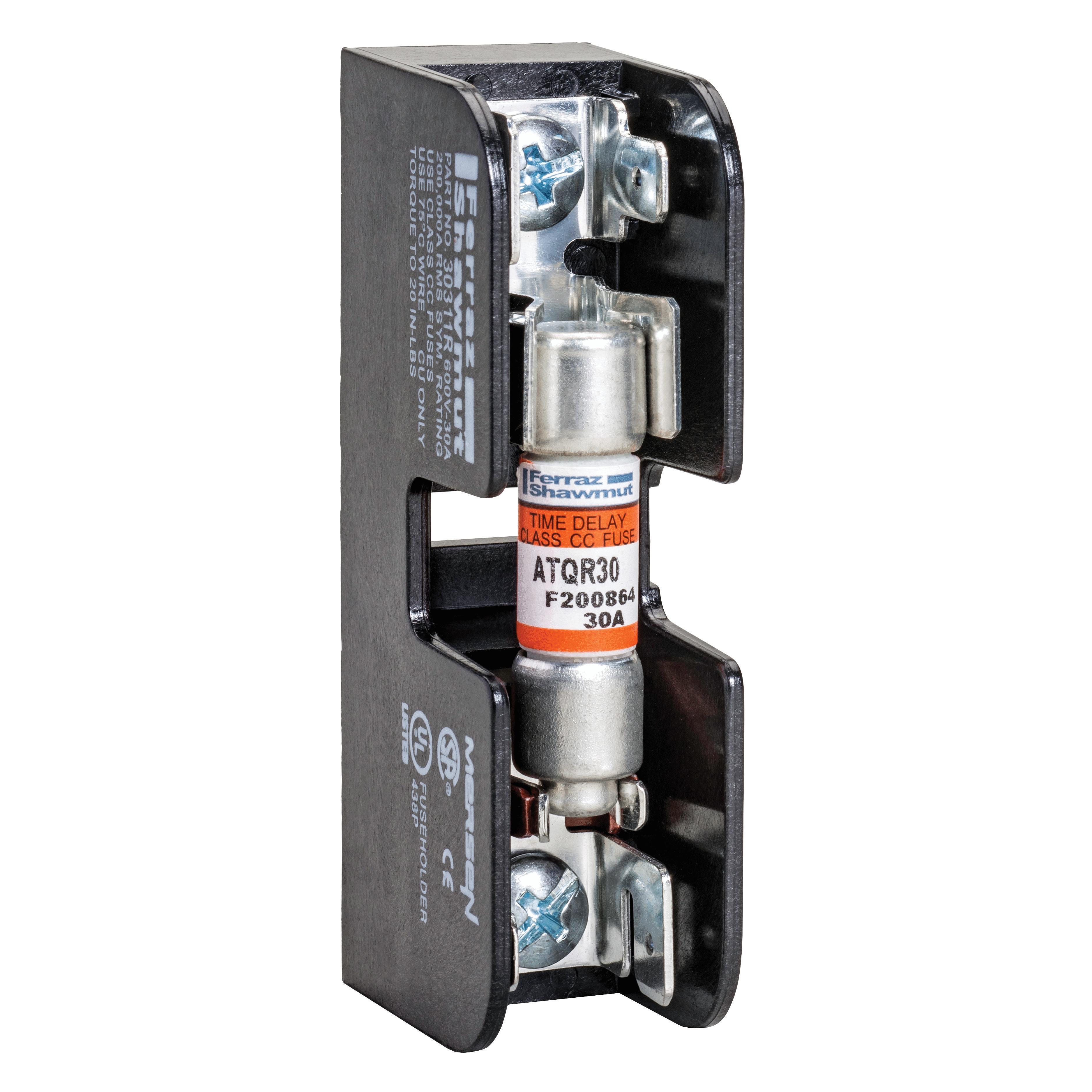

30321R MERSEN 30A-600V-1P FUSEBLOCK 50

Mouse over image to zoom, click to enlarge

  • 30321R MERSEN 30A-600V-1P FUSEBLOCK 50
  • 30321R MERSEN 30A-600V-1P FUSEBLOCK 50
  • 30321R MERSEN 30A-600V-1P FUSEBLOCK 50

Description: Mersen Fuse Block, Open Style, Series: 303, 600 V AC/DC, 30 A, 1 Pole, 1 Phase, Class: CC, Pressure Plate/Double Quick-Connect, 14 to 10 AWG Wire, DIN Rail/Threaded Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, 125 deg C, For Use With: ATDR, ATMR and ATQR Series Fuse, Glass Reinforced Polycarbonate, 3.04 in H x 0.85 in W x 1.31 in D

Manufacturer PN: 30321R

UPC:  78200175009

Kendall Electric Inc PN: 29072

Invoice Description:

30321R MERSEN 30A-600V-1P FUSEBLOCK 50


SPEC SHEET

▸ See All in Midget Fuse Blocks


How Can We Make This Page Better?

Mersen 30321R Open Style Fuse Block, 600 V AC/DC, 30 A, 14 to 10 AWG Wire, 1 Pole

Log In for Pricing and Availability




Description

Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Mersen Fuse Block, Open Style, Series: 303, 600 V AC/DC, 30 A, 1 Pole, 1 Phase, Class: CC, Pressure Plate/Double Quick-Connect, 14 to 10 AWG Wire, DIN Rail/Threaded Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, 125 deg C, For Use With: ATDR, ATMR and ATQR Series Fuse, Glass Reinforced Polycarbonate, 3.04 in H x 0.85 in W x 1.31 in D

Specifications

 Amperage Rating 30 A
 Brand Name Mersen
 Class CC
 Connection Type Pressure Plate/Double Quick-Connect
 Dimensions 3.04 in H x 0.85 in W x 1.31 in D
 Fuse Diameter 13/32 in
 Fuse Length 1-1/2 in
 Manufacturer Part Number 30321R
 Material Glass Reinforced Polycarbonate
 Mounting Type DIN Rail/Threaded
 Number of Poles 1
 PART NUMBER KEYWORDS 30321R ; 7691927 ; 782001750091 ; 78200175009 ; 00782001750091
 Phase 1
 Series 303
 Standards/Approvals RoHS Compliant|UL 4248-4 Guide IZLT File No. E52283|CSA C22.2 Class 6225/32169
 Suitable For Use With ATDR, ATMR and ATQR Series Fuse
 Temperature Rating 125 deg C
 Type Open Style
 Voltage Rating 600 V AC/DC

Features

▪ 20 in-lb torque rating
▪ Tin-plated copper contact
