nVent

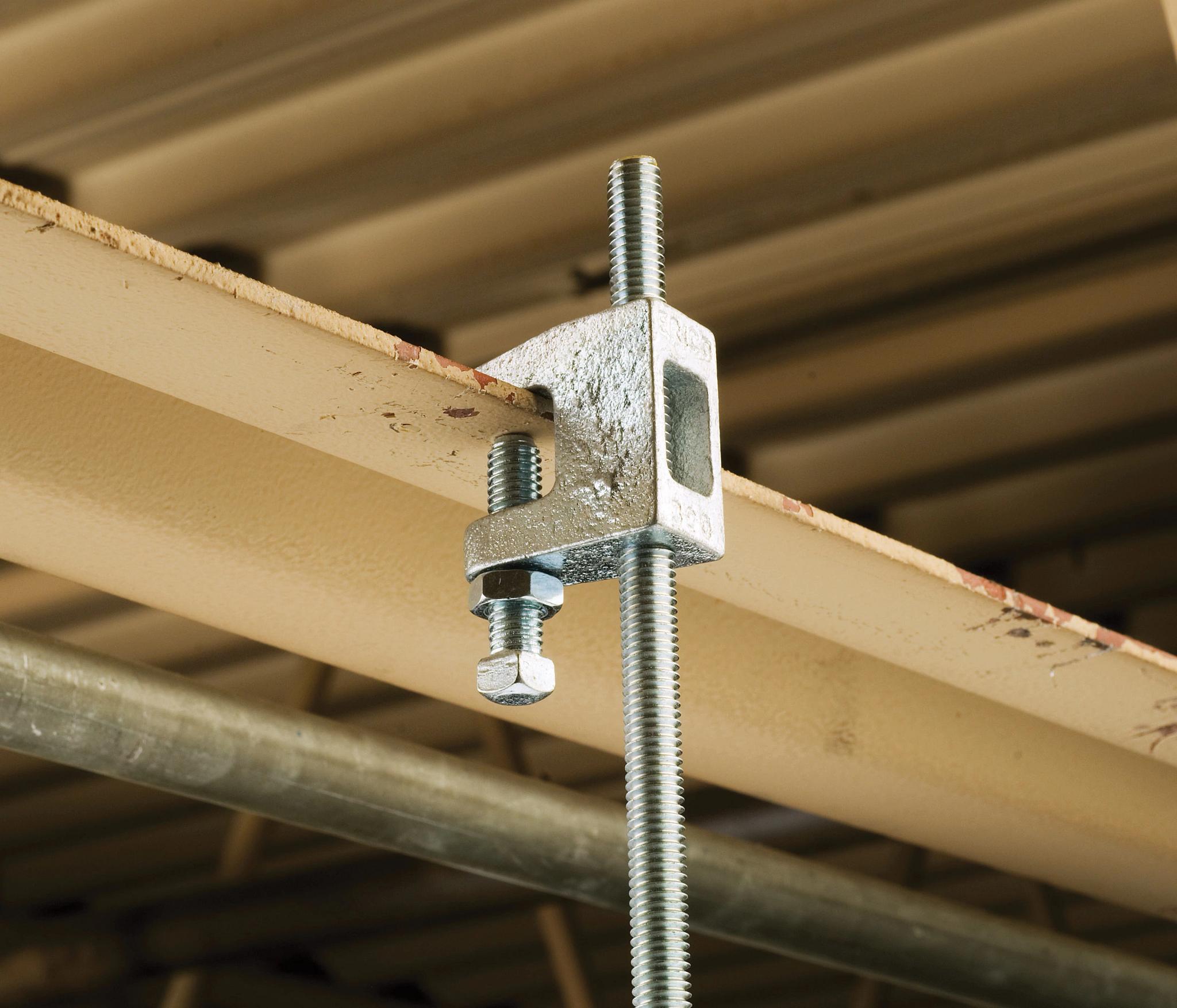

3000050EG ERICO CLAMP BEAM 1/2 MAL 50/BOX..

Mouse over image to zoom, click to enlarge

Description: nVent CADDY Beam Clamp, Universal, Series: 300, 1/2 in Rod, 13/16 in Flange Thickness, 760/950 lb Static, For Use With: Structural Attachment to Top or Bottom of Metal Beams, Purlin, Channels and Angle Iron, 1-1/8 in Hole, 8 ft-lb Torque, Steel, Electro-Galvanized, 3/4 in L x 1-1/8 in W

Manufacturer PN: 3000050EG

UPC: 78285633977

Kendall Electric Inc PN: 3797995

Invoice Description:

3000050EG ERICO CLAMP BEAM 1/2 MAL 50/BOX..

SPEC SHEET

▸ See All in Rod to Beam Clamps

How Can We Make This Page Better?

nVent CADDY 3000050EG Universal Beam Clamp, 1/2 in Rod, 13/16 in THK Flange, 760/950 lb Static Load, Steel, Electro-Galvanized

Description Specifications Resources

Description

nVent CADDY Beam Clamp, Universal, Series: 300, 1/2 in Rod, 13/16 in Flange Thickness, 760/950 lb Static, For Use With: Structural Attachment to Top or Bottom of Metal Beams, Purlin, Channels and Angle Iron, 1-1/8 in Hole, 8 ft-lb Torque, Steel, Electro-Galvanized, 3/4 in L x 1-1/8 in W

Specifications

Application	Datacom and Low Voltage, Electrical Fixing and Fastening, Fire Sprinkler, HVAC, Plumbing and Refrigeration Applications
Brand Name	nVent CADDY
Dimensions	3/4 in L x 1-1/8 in W
Finish	Electro-Galvanized
Flange Thickness	13/16 in
Load Capacity	760/950 lb Static
Manufacturer Part Number	3000050EG
Material	Steel
PART NUMBER KEYWORDS	3000050EG ; 14841107 ; 782856339779 ; 78285633977
Rod Size	1/2 in
Series	300
Specifications	1-1/8 in Hole, 8 ft-lb Torque
Standards/Approvals	cULus Listed\|UL Listed\|FM Approved\|Federal Specification WW-H-171 Type 23\|ANSI/MSS-SP-58 Type 19 and 23\|RoHS Compliant
Suitable For Use With	Structural Attachment to Top or Bottom of Metal Beams, Purlin, Channels and Angle Iron
Type	Universal
