Schneider Electric
  • 8910DP31V09 SQD CONTACTOR 600VAC
  • 8910DP31V09 SQD CONTACTOR 600VAC
  • 8910DP31V09 SQD CONTACTOR 600VAC
  • 8910DP31V09 SQD CONTACTOR 600VAC
  • 8910DP31V09 SQD CONTACTOR 600VAC
  • 8910DP31V09 SQD CONTACTOR 600VAC

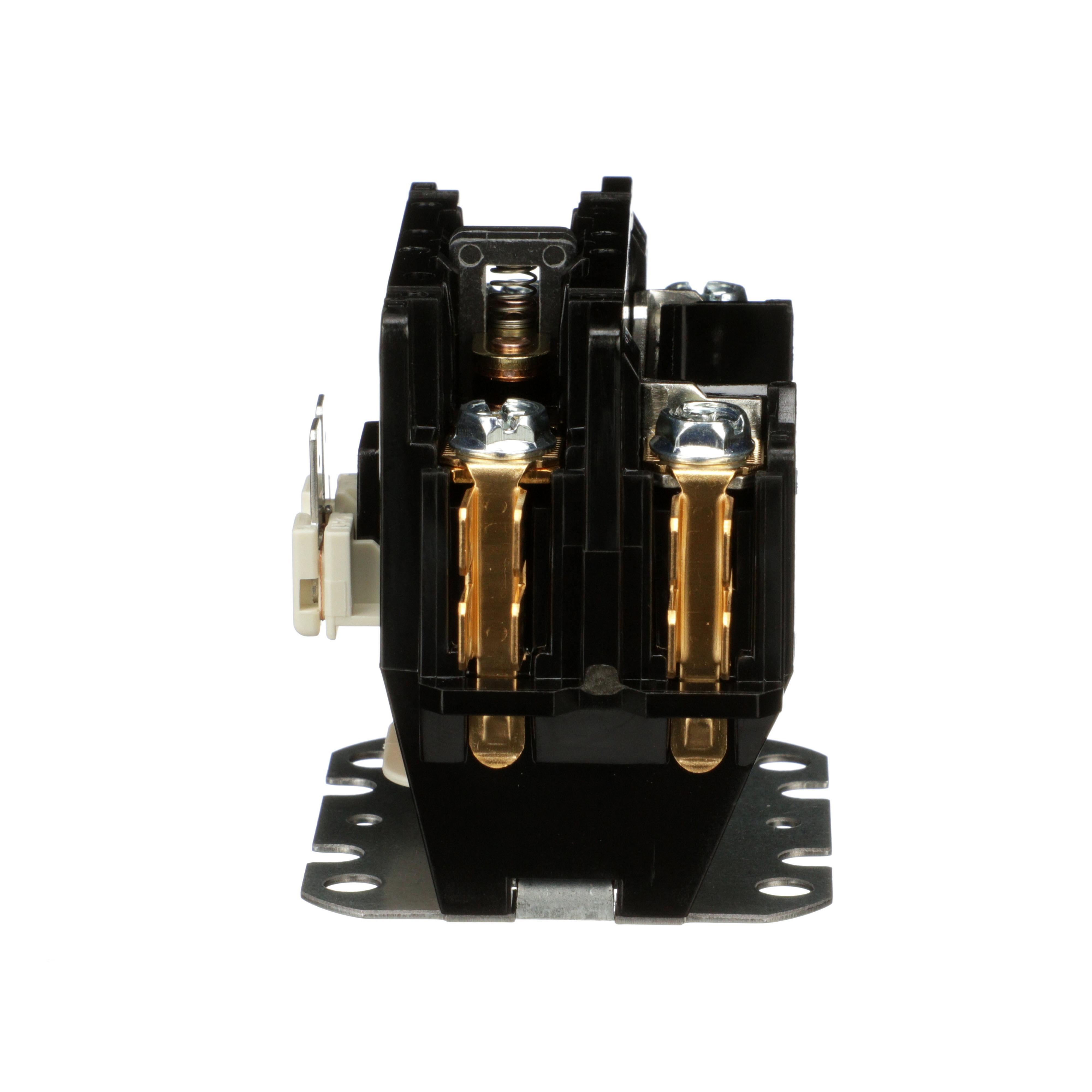

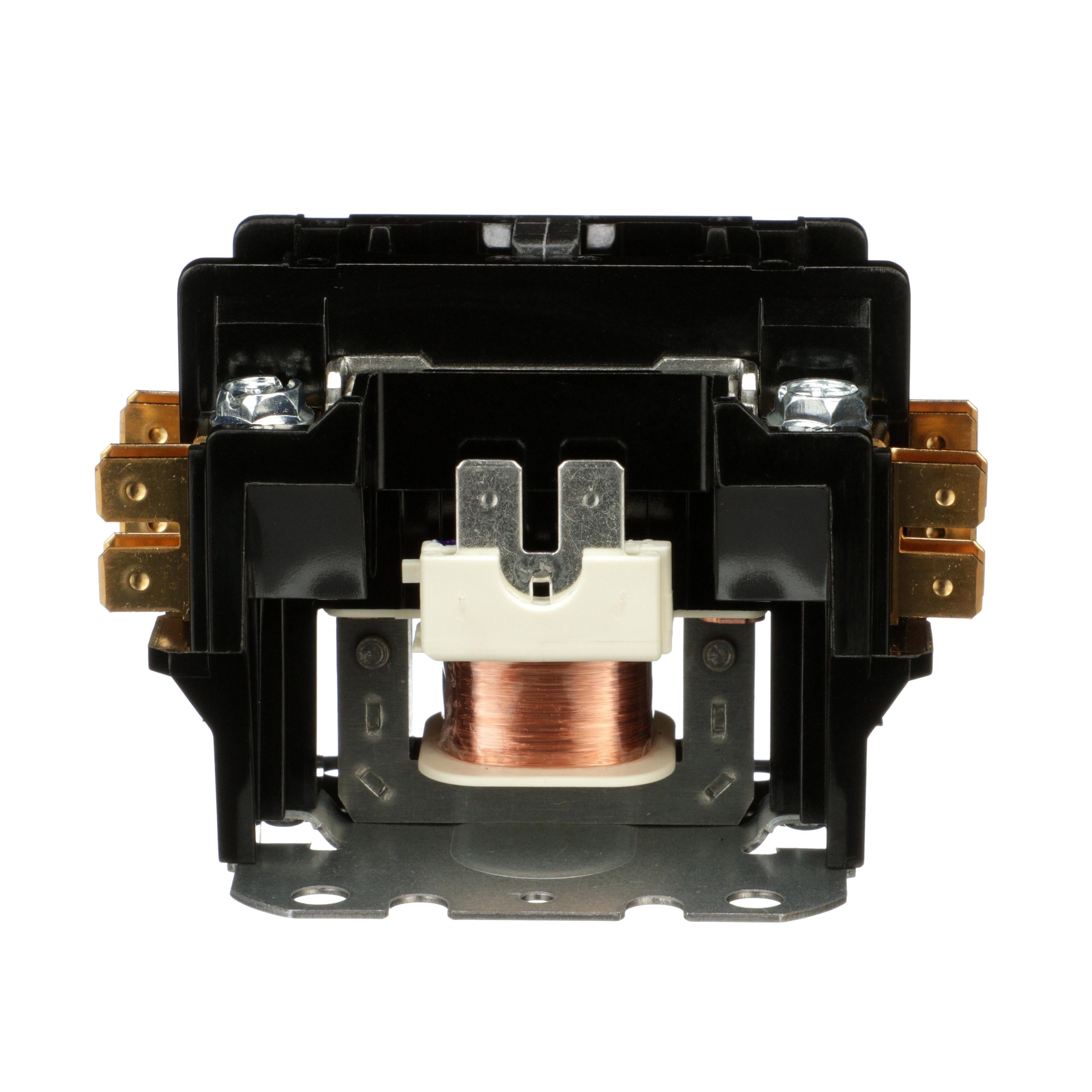

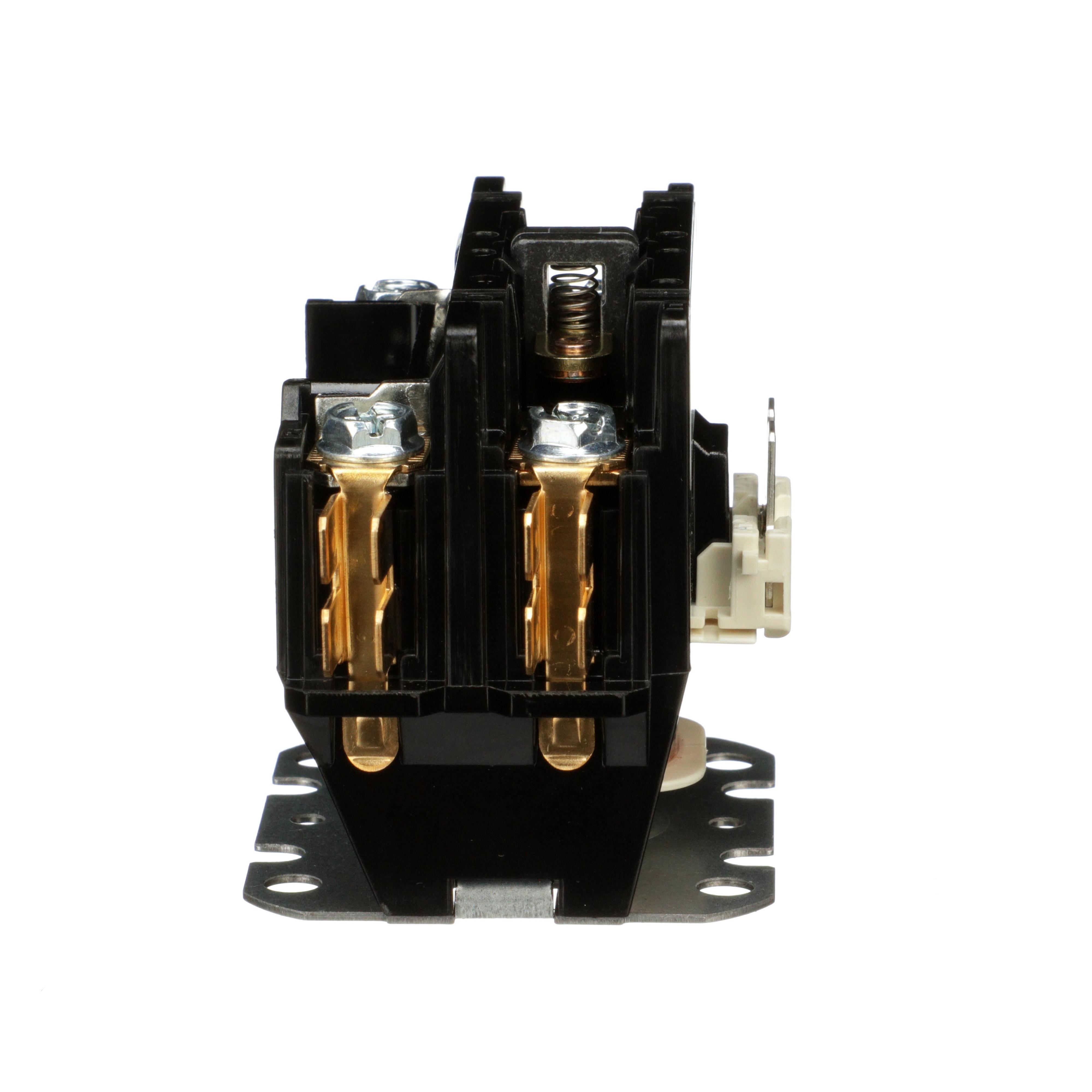

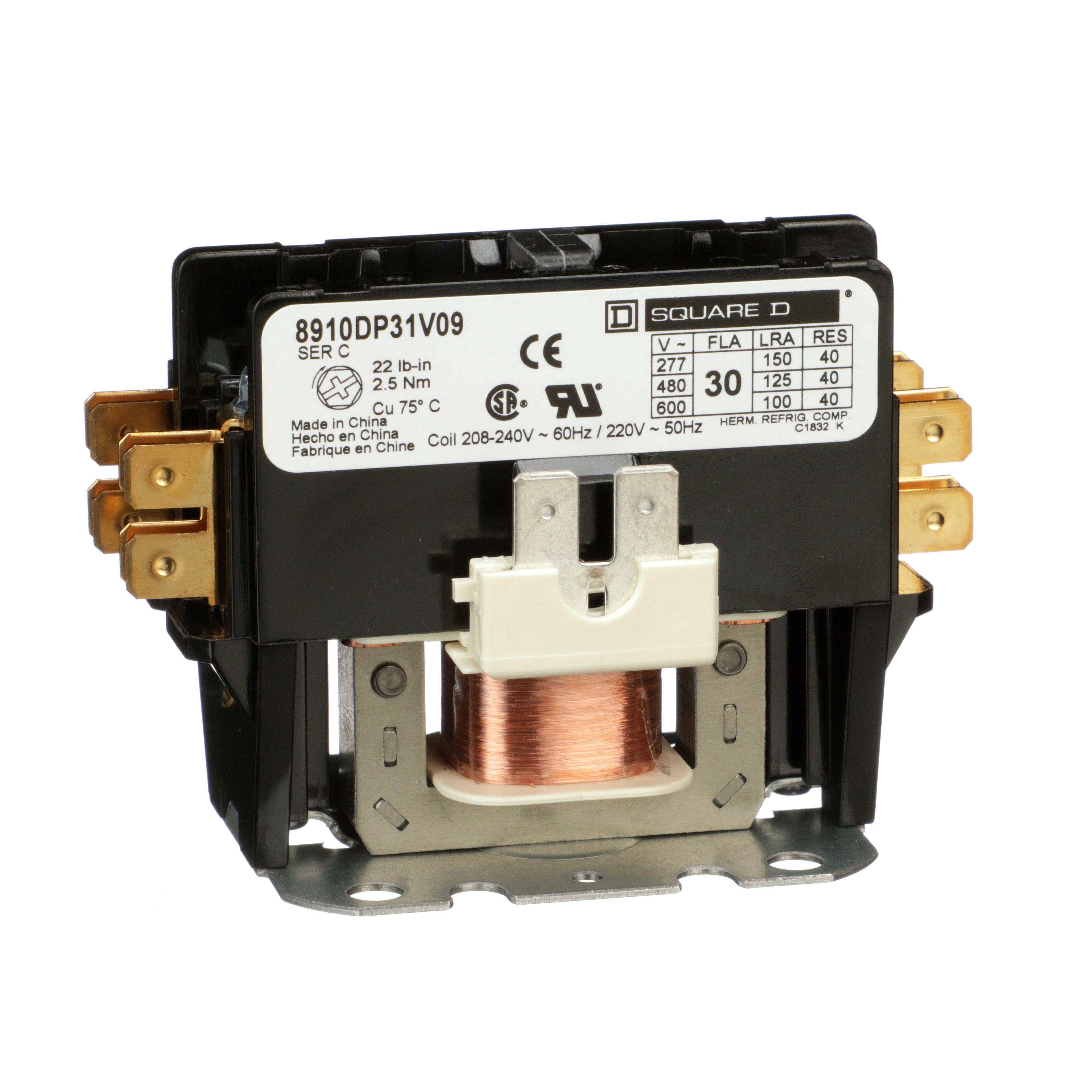

Description: Square D™, 8910DP31V09, Contactor, 1-Phase Type DP, Series: 8910, 208/220/240 V AC Coil, 30 A Maximum Load Current, 2 hp at 115 VAC/3 hp at 230 VAC Coil, 1 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 600 VAC Contact, Binding Head Screw Connection, Quick-Connect Terminal, Open Enclosure, Panel Mounting

Manufacturer PN: 8910DP31V09

UPC:  78590102417

Kendall Electric Inc PN: 3998620

Invoice Description:

8910DP31V09 SQD CONTACTOR 600VAC


SPEC SHEET

▸ See All in Definite Purpose Contactors AC


How Can We Make This Page Better?

Square D™ 8910DP31V09 8910 1-Phase Type DP Contactor, 208/220/240 V AC V Coil, 30 A, 1NO Contact, 1 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified.
Square D™, 8910DP31V09, Contactor, 1-Phase Type DP, Series: 8910, 208/220/240 V AC Coil, 30 A Maximum Load Current, 2 hp at 115 VAC/3 hp at 230 VAC Coil, 1 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 600 VAC Contact, Binding Head Screw Connection, Quick-Connect Terminal, Open Enclosure, Panel Mounting

Specifications

 Application Heating, Air Conditioning, Refrigeration, Data Processing and Food Service Equipment Applications
 Brand Name Square D
 Coil Power Rating 2 hp at 115 VAC/3 hp at 230 VAC
 Coil Voltage 208/220/240 V AC
 Connection Type Binding Head Screw
 Contact Configuration 1NO
 Contact Rating 600 V AC
 Enclosure Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 8910DP31V09
 Maximum Load Current 30 A
 Mounting Type Panel
 Number of Poles 1
 PART NUMBER KEYWORDS 8910DP31V09 ; 8152100 ; 785901024170 ; 78590102417 ; 00785901024170 ; 0785901024170
 Series 8910
 Standards/Approvals Buy American Act Compliant|CE Certified|CSA Certified|ECCN EAR99|RoHS Compliant|UL Listed|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
 Terminal Type Quick-Connect
 Type 1-Phase Type DP
 Video Links

Features

▪ Electrical systems protection from overloads and short circuits
▪ Quick connect terminals and binder head screws for easy wiring
▪ Compact design and exclusive DIN mounting option
