Cooper Lighting Solutions

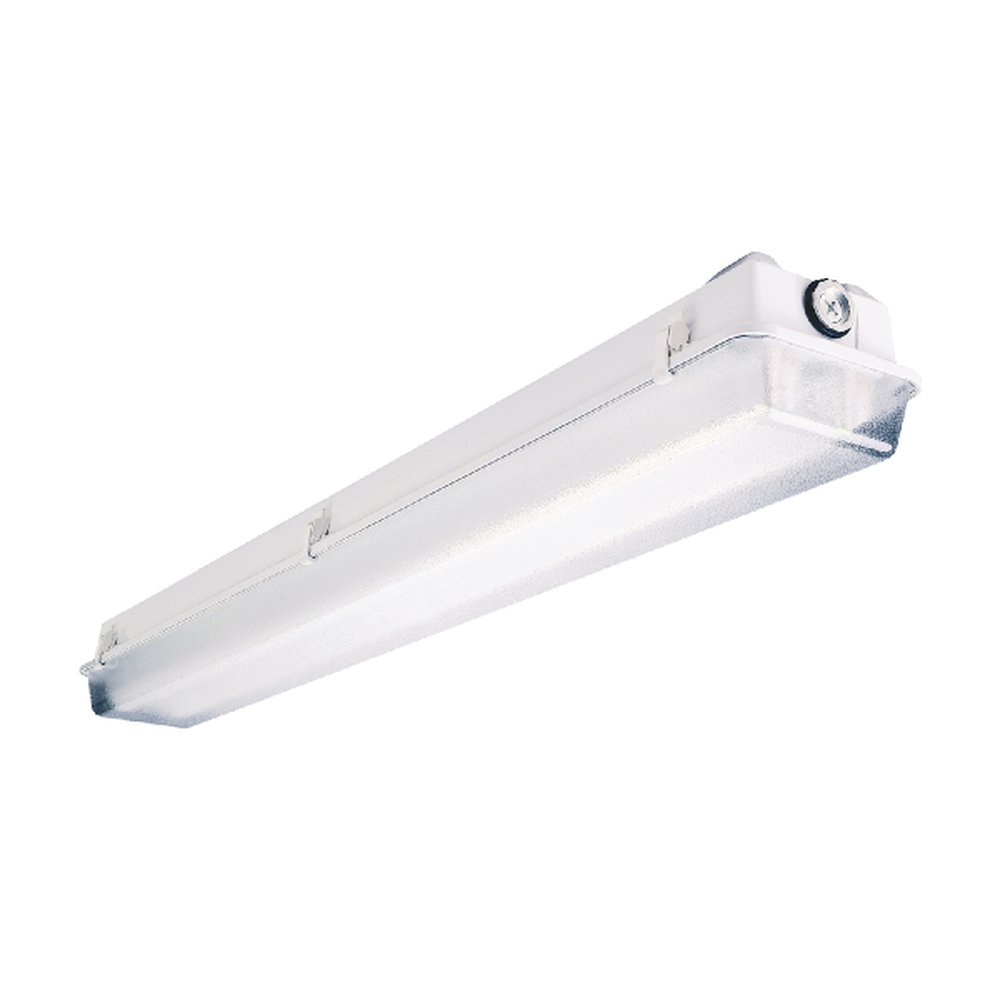

4VT2-LD5-8-DR-UNV-L840-CD1-WL-U METALUX VAPORTITE 4FT INDUSTRIAL LED

Mouse over image to zoom, click to enlarge

Description: Metalux Vaportite Fixture, Rectangular, Series: VT2, 120 to 277 V, 58 W Fixture, 0.21 A, 1 Lamps, 60000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Prismatic Lens, 8000 Lumens, Surface Mounting, Fiberglass Reinforced Polyester Housing Material, 4 ft L x 7 in W x 5-7/8 in H Dimensions

Manufacturer PN: 4VT2-LD5-8-DR-UNV-L840-CD1-WL-U

Kendall Electric Inc PN: 4113882

Invoice Description:

4VT2-LD5-8-DR-UNV-L840-CD1-WL-U METALUX VAPORTITE 4FT INDUSTRIAL LED


SPEC SHEET

How Can We Make This Page Better?

Metalux 4VT2-LD5-8-DR-UNV-L840-CD1-WL-U VT2 Rectangular Vaportite Fixture, (1) Lamp, 58 W Fixture, 120 to 277 V

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Metalux VT2 LED series is an energy-efficient industrial vaportite fixture that features rugged and durable construction. The VT2 LED incorporates a full metal tray and heat sink inside a reinforced sealed and gasketed fiberglass housing with a high impact diffuser. This vaportite series is suitable for interior and exterior applications and can be surface, chain, cable or stem mounted.
Metalux Vaportite Fixture, Rectangular, Series: VT2, 120 to 277 V, 58 W Fixture, 0.21 A, 1 Lamps, 60000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Prismatic Lens, 8000 Lumens, Surface Mounting, Fiberglass Reinforced Polyester Housing Material, 4 ft L x 7 in W x 5-7/8 in H Dimensions

Specifications

 Amperage Rating 0.21 A
 Application Parking Garage, Cold Storage, Canopy, Warehouse, Food Processing, Manufacturing, Complex Environments, Industrial and Lighting Applications
 Average Life 60000 hr
 Ballast Type 0 to 10 V Dimmable
 Brand Name Metalux
 Color Rendering Index CRI 80
 Color Temperature 4000 K
 Dimensions 4 ft L x 7 in W x 5-7/8 in H
 Fixture Wattage 58 W
 Housing Material Fiberglass Reinforced Polyester
 Lumens 8000 Lumens
 Manufacturer Part Number 4VT2-LD5-8-DR-UNV-L840-CD1-WL-U
 Mounting Type Surface
 Number of Lamps 1
 PART NUMBER KEYWORDS 4VT2-LD5-8-DR-UNV-L840-CD1-WL-U ; 4VT2LD58DRUNVL840CD1WLU ; 16078131 ; 080083146963 ; 80083146963 ; 08008314696 ; 00080083146963
 Series VT2
 Standards/Approvals cUL Listed for Wet Location|DLC Listed|DLC Premium|ECCN: EAR99NLR|FCC Certified|IESNA LM-79/80 Compliant|NSF Approved|UL Listed
 Type Rectangular
 Voltage Rating 120 to 277 V

Features

▪ 4 ft sealed and gasketed vaportite
▪ Lumen packages up to 22 K lumens
▪ High performance efficacy up to 150 Lumens/W
▪ Rated for -40 to 35 deg C ambient
▪ Lumen maintenance - L91 at 60000 hr
▪ Occupancy and daylight sensor for added savings
