ABB

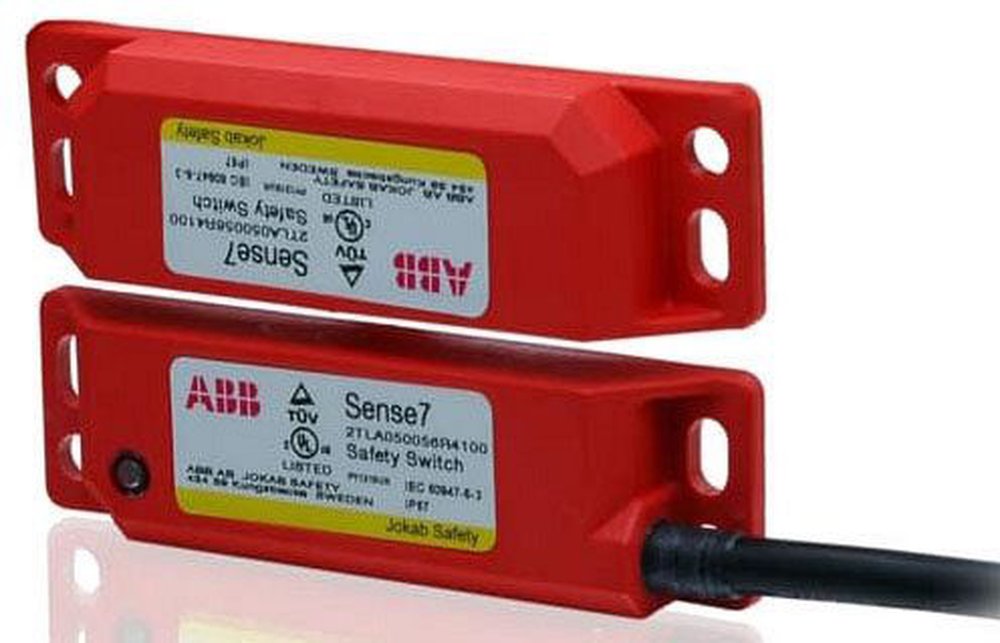

  • 2TLA050056R6100 JOKAB SENSE7, 10M CABLE, 2NC/1NO, LED
  • 2TLA050056R6100 JOKAB SENSE7, 10M CABLE, 2NC/1NO, LED

Description: ABB Jokab Safety® Safety Switch, Non-Contact, Series: Sense 7, Coded Magnetic Actuator, 14 mm Actuator, 24 V DC 0.2 A Contact, 1NO-2NC Contact Configuration, PVC 6/8 Core Cable Connection, 10 m Cable Length, IP67/IP69K Enclosure, Polyester, 88 mm H x 50 mm W x 13 mm D Dimensions;ABB Jokab Safety™ Coded Safety Switch, Non-Contact, Series: Sense 7, 88 mm L x 25 mm W x 13 mm H Actuator, 0.2 A at 24 V DC Contact, 1NO-2NC, Cable, 10 m Cable Length, IP67/IP69K Enclosure, Polyester, Red, 25 mm W x 13 mm D

Manufacturer PN: 2TLA050056R6100

UPC:  35002446670

Kendall Electric Inc PN: 4392385

Invoice Description:

2TLA050056R6100 JOKAB SENSE7, 10M CABLE, 2NC/1NO, LED


SPEC SHEET

▸ See All in Interlock Switches - Noncontact


How Can We Make This Page Better?

ABB Jokab Safety® 2TLA050056R6100 Sense 7 Non-Contact Safety Switch, 14 mm Coded Magnetic Actuator, 24 V DC 0.2 A Contact, 1NO-2NC Contact;ABB Jokab Safety™ 2TLA050056R6100 Sense 7 Non-Contact Coded Safety Switch, 88 mm L x 25 mm W x 13 mm H, 0.2 A at 24 V DC Contact, 1NO-2NC Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The coded non-contact switches Sense7 are designed to provide position interlock detection for moving gards. They are designed to fit the leading edge of sliding, hinged or lift off machine guards. The actuator is fitted to the moving part of the guard, and is aligned to the switch, placed on the frame of the guard. Its design makes it advantageous to operate in environments that require the highest level of safety.
ABB Jokab Safety® Safety Switch, Non-Contact, Series: Sense 7, Coded Magnetic Actuator, 14 mm Actuator, 24 V DC 0.2 A Contact, 1NO-2NC Contact Configuration, PVC 6/8 Core Cable Connection, 10 m Cable Length, IP67/IP69K Enclosure, Polyester, 88 mm H x 50 mm W x 13 mm D Dimensions;ABB Jokab Safety™ Coded Safety Switch, Non-Contact, Series: Sense 7, 88 mm L x 25 mm W x 13 mm H Actuator, 0.2 A at 24 V DC Contact, 1NO-2NC, Cable, 10 m Cable Length, IP67/IP69K Enclosure, Polyester, Red, 25 mm W x 13 mm D

Specifications

 Actuator Type Coded Magnetic
 Application For all industry applications;Industrial Applications
 Brand Name ABB
 Cable Length 10 m
 Color Red
 Connection Type PVC 6/8 Core Cable;Cable
 Contact Configuration 1NO-2NC
 Contact Rating 24 V DC 0.2 A;0.2 A at 24 V DC
 Dimensions 88 mm H x 50 mm W x 13 mm D;25 mm W x 13 mm D
 Enclosure IP67/IP69K
 Manufacturer Part Number 2TLA050056R6100
 Material Polyester
 PART NUMBER KEYWORDS 2TLA050056R6100 ; Sense7 10M ; Sense710M ; 804325609449 ; 80432560944 ; 00804325609449;2TLA050056R6100 ; 804325609449 ; 80432560944 ; 00804325609449 ; 16075484
 Series Sense 7
 Standards/Approvals EN1088|IEC 947-5-3|EN 60204-1|EN62061|EN 954-1|UL 508|CE Certified|cULus Listed|TUV Approved;BAA Compliant|CE Certified|cULus Listed|European Machinery Directive 2006/42/EC|EN 1088:1995+A2:2008|EN 60947-5-2:2007|EN 60947-5-3:1999+A1:2005|EN 62061|TUV Certified|UL Listed
 Type Non-Contact

Features

▪ Can be high pressure hosed at high temperature - IP69K;Popular European fitting suitable for all industrial applications
▪ Wide 14 mm sensing high tolerance to misalignment;Can be high pressure hosed at high temperature - IP69K
▪ LED indication;High tolerance to misalignment
▪ High switching life, no moving parts;LED indication
▪ 2NC + 1NO circuits, quick connect versions;High switching life
▪ Specified to 80 deg C, but designed to work up to 100 deg C, will operate with most EN 954-1 Cat.4 safety relays;No moving parts
▪ Quick connect versions
