ABB

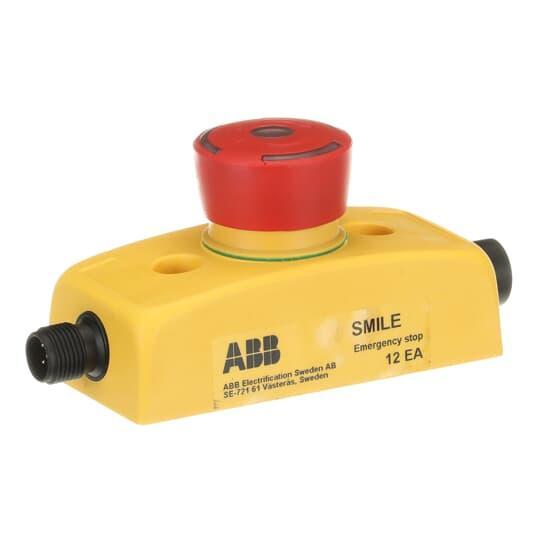

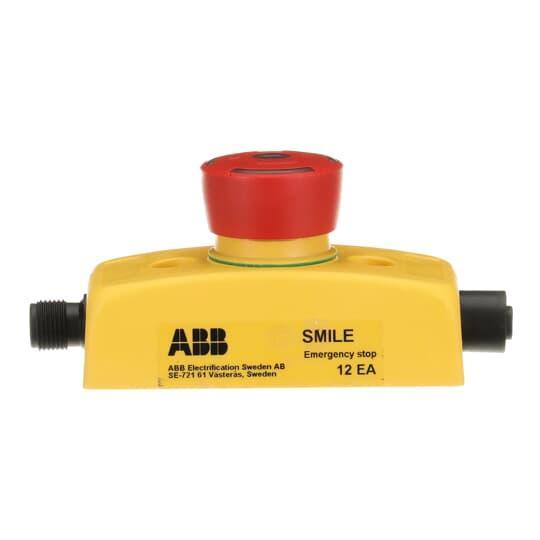

  • 2TLA030051R0200 JOKAB SMILE 12EA ILL E-STOP 2NC WITH (2) M12 CONNECTIONS
  • 2TLA030051R0200 JOKAB SMILE 12EA ILL E-STOP 2NC WITH (2) M12 CONNECTIONS
  • 2TLA030051R0200 JOKAB SMILE 12EA ILL E-STOP 2NC WITH (2) M12 CONNECTIONS
  • 2TLA030051R0200 JOKAB SMILE 12EA ILL E-STOP 2NC WITH (2) M12 CONNECTIONS

Description: ABB Emergency Stop Button, 10 VAC/VDC, 24 VDC, 10 mA to 2 A, IP65 Degree of Protection, -10 to 55 deg C, Macromelt/Polyamide/PBT/Polypropylene, Red/Yellow, 84 mm L x 40 mm W x 52 mm H Dimensions;ABB Emergency Stop Button, Blank Non-Illuminated, 52 mm L x 40 mm W x 109 mm H, 2NC, Bezel/Housing: Plastic, (2) M12 x 5 Male, LED Indicator, IP65, External Mount

Manufacturer PN: 2TLA030051R0200

UPC:  88861409666

Kendall Electric Inc PN: 3823251

Invoice Description:

2TLA030051R0200 JOKAB SMILE 12EA ILL E-STOP 2NC WITH (2) M12 CONNECTIONS


SPEC SHEET

▸ See All in Enabling & Grip Switches


How Can We Make This Page Better?

ABB 2TLA030051R0200 Emergency Stop Button With M12 5-Pole Male x Female Connector, 10 VAC/VDC, 24 VDC, 10 mA to 2 A, -10 to 55 deg C, Macromelt/Polyamide/PBT/Polypropylene;ABB 2TLA030051R0200 Blank Non-Illuminated Emergency Stop Button, 52 mm L x 40 mm W x 109 mm H, 2NC Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Emergency stop buttons are used to safely stop dangerous machine functions. ABB offers a wide range of emergency stop buttons for external mounting or panel mounting, with plastic or metal housing and for different types of connections. Smile is a small and easy to install emergency stop button. Its size allows mounting in reduced spaces and its centered mounting holes makes it especially easy to mount on aluminum extrusions (quick-guard fencing system). Smile is available with M12 connectors or cable. Smile has an integrated LED in the button that shows the status and simplifies error tracking. The standard models of Smile have 2 contacts and can be used with safety controllers from all brands. Smile Tina models belongs to the ABB DYNlink solution, with the advantages of serial connection using only one channel and still reaching Cat 4/PL e.;Emergency stop buttons are used to safely stop dangerous machine functions. ABB offers a wide range of emergency stop buttons for external mounting or panel mounting, with plastic or metal housing and for different types of connections.
ABB Emergency Stop Button, 10 VAC/VDC, 24 VDC, 10 mA to 2 A, IP65 Degree of Protection, -10 to 55 deg C, Macromelt/Polyamide/PBT/Polypropylene, Red/Yellow, 84 mm L x 40 mm W x 52 mm H Dimensions;ABB Emergency Stop Button, Blank Non-Illuminated, 52 mm L x 40 mm W x 109 mm H, 2NC, Bezel/Housing: Plastic, (2) M12 x 5 Male, LED Indicator, IP65, External Mount

Specifications

 Amperage Rating 10 mA to 2 A
 Application For Smile enclosure and providing emergency stop protection of machinery;For providing emergency stop protection of machinery
 Bezel Housing Plastic
 Brand Name ABB
 Color Red/Yellow
 Connection Type (2) M12 x 5 Male
 Contact Configuration 2NC
 Degree Of Protection IP65
 Dimensions 84 mm L x 40 mm W x 52 mm H
 Enclosure IP65
 GROUP Emergency stop button
 Indicator LED
 Manufacturer Part Number 2TLA030051R0200
 Material Macromelt/Polyamide/PBT/Polypropylene
 Mounting Type External
 Product Main Type Smile
 Size 52 mm L x 40 mm W x 109 mm H
 Standards/Approvals IEC Certified|UL 94 V-0 Flammability Rating;BAA Compliant|CSA Certified|IEC Certified|SEMKO Certified
 Temperature Rating -10 to 55 deg C
 Type Blank Non-Illuminated
 Voltage Rating 10 VAC/VDC/24 VDC

Features

▪ LED status indicator on top of unit
▪ Models with a compact and appealing housing saves space and makes it easy to place;Easy to install
▪ Quick and easy installation of models with features such as centered mounting holes, removable terminal blocks and M12 connectors;Optimum interface
▪ Several models to choose between depending on position, installation and function;Continuous operation
▪ Robust models and models in stainless steel for use in demanding environments;Models with a compact and appealing housing saves space and makes it easy to place
▪ Models with integrated LED diagnostics reduce downtime when troubleshooting;Highly adaptable - several models to choose between depending on position, installation and function
▪ Emergency stop in Smile enclosure, 2NC contacts, status LED in button, M12 5-pin male connector and M12 5-pin female connector;LED diagnostics - models with integrated LED diagnostics reduce downtime when troubleshooting
▪ LED status indicator on top of unit;Quick installation - quick and easy installation of models with features such as centered mounting holes, removable terminal blocks and M12 connectors
▪ Reliable in extreme conditions - robust models and models in stainless steel for use in demanding environments
▪ Serial connection: Tina models save cable length and installation time with serial connection
