Leviton

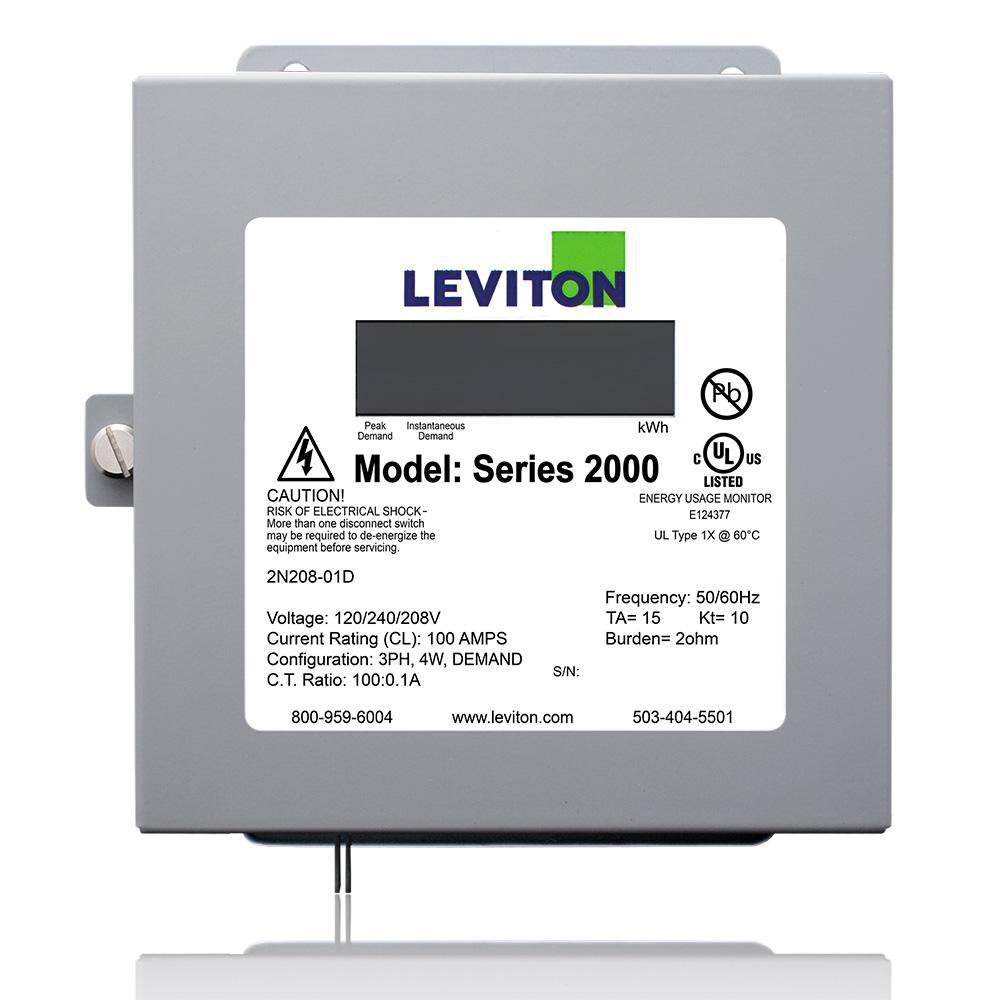

2N208-1D LEVITON SERIES 2000 120 240 208V 100:0.1A DEMAND

Mouse over image to zoom, click to enlarge

Description: Leviton® VerifEye™ Demand Meter, 3-Phase 4-Wire 3-Element Surface Mount, Series: 2000, 120/208 V AC, 100 A, LCD Display, Isolated Pulse Output Communication, -22 to 140 deg F Operating, Steel, 6.19 in W x 3.25 in D x 7.5 in H Dimensions

Manufacturer PN: 2N208-1D

UPC:  07847755547

Kendall Electric Inc PN: 3786894

Invoice Description:

2N208-1D LEVITON SERIES 2000 120 240 208V 100:0.1A DEMAND


SPEC SHEET

▸ See All in Monitoring Meter Assemblies


How Can We Make This Page Better?

Leviton® VerifEye™ 2N208-1D 2000 3-Phase 4-Wire 3-Element Surface Mount Demand Meter, 120/208 V AC, 100 A, LCD Display, Isolated Pulse Output Communication

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton® VerifEye™ series 2000 line of revenue grade meters meets all measurement and verification based opportunities - including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, series 2000 meters are easy to specify and install for new construction and retrofits.
Leviton® VerifEye™ Demand Meter, 3-Phase 4-Wire 3-Element Surface Mount, Series: 2000, 120/208 V AC, 100 A, LCD Display, Isolated Pulse Output Communication, -22 to 140 deg F Operating, Steel, 6.19 in W x 3.25 in D x 7.5 in H Dimensions

Specifications

 Amperage Rating 100 A
 Application Commercial, Institutional, Industrial, Load Profiling, Benchmarking, Usage Aggregation, Tenant Cost Allocation, Measurement, Verification, Energy Conservation, Cost Reduction, Green Building Initiatives, Government Mandates and Indoor Applications
 Brand Name Leviton®
 Communication Isolated Pulse Output
 Dimensions 6.19 in W x 3.25 in D x 7.5 in H
 Manufacturer Part Number 2N208-1D
 Material Steel
 Operating Temperature -22 to 140 deg F
 PART NUMBER KEYWORDS 2N208-1D ; 2N2081D
 Series 2000
 Standards/Approvals ANSI C12.1
 Type 3-Phase 4-Wire 3-Element Surface Mount
 Video Links
 Voltage Rating 120/208 V AC

Features

▪ Gray color
▪ Measures kWh
▪ Utilizes either revenue grade 0.3% accuracy class 0.1 A secondary solid core current transformers that conform to all applicable ANSI requirements or 1% accuracy split core current transformer
▪ Up to three sets of current transformers per phase can be paralleled per meter without the need for a meter multiplier
▪ Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
▪ Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
▪ Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset
▪ Load indicator LED verifies meter functionality
▪ Reverse phase indicator LED illuminates if the meter is improperly installed
▪ Line to line
