ABB
  • 2B40 ITB 4/0 2BOLT CONNECTOR
  • 2B40 ITB 4/0 2BOLT CONNECTOR
  • 2B40 ITB 4/0 2BOLT CONNECTOR
  • 2B40 ITB 4/0 2BOLT CONNECTOR
  • 2B40 ITB 4/0 2BOLT CONNECTOR

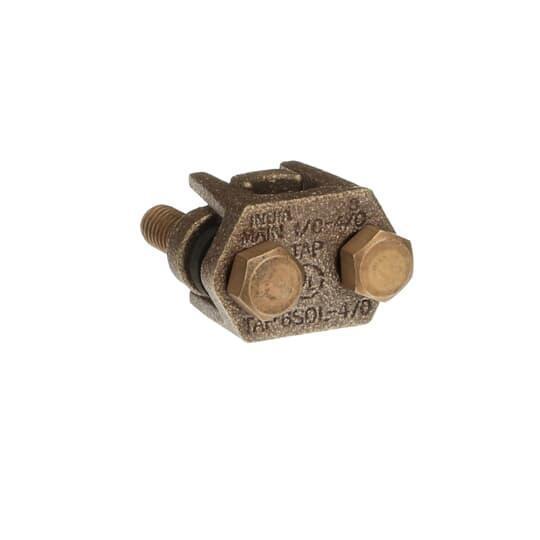

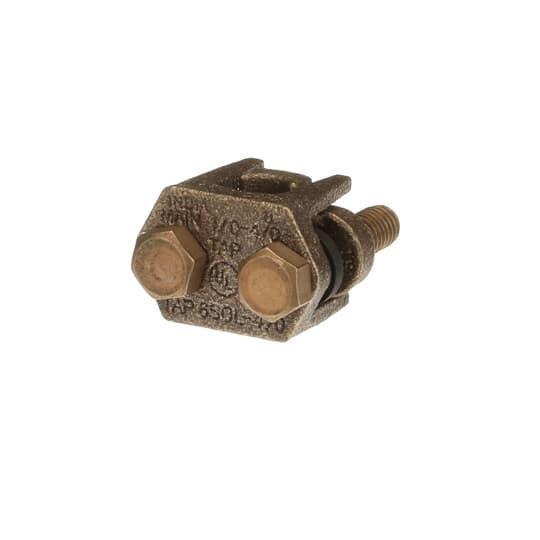

Description: Blackburn®, 2B40, Copper Two-Bolt Connector, Series: 2B Series, Solid/Stranded Copper Conductor, 1/0 to 4/0 AWG Conductor, 6 to 4/0 AWG Tap, 3/8 x 9/16 in Bolt, Specifications: 0.53 to 1.056 in Dia Conductor A, 1-23/32 in W x 1-3/4 in H Dimensions

Manufacturer PN: 2B40

UPC:  78378640003

Kendall Electric Inc PN: 39108

Invoice Description:

2B40 ITB 4/0 2BOLT CONNECTOR


SPEC SHEET

▸ See All in Two Bolt Connectors


How Can We Make This Page Better?

Blackburn® 2B40 2B Series Copper Two-Bolt Connector, 1/0 to 4/0 AWG Conductor Solid/Stranded Copper Conductor, 3/8 x 9/16 in Bol

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Blackburn®, 2B40, Copper Two-Bolt Connector, Series: 2B Series, Solid/Stranded Copper Conductor, 1/0 to 4/0 AWG Conductor, 6 to 4/0 AWG Tap, 3/8 x 9/16 in Bolt, Specifications: 0.53 to 1.056 in Dia Conductor A, 1-23/32 in W x 1-3/4 in H Dimensions

Specifications

 Bolt Size 3/8 x 9/16 in
 Brand Name Blackburn
 Conductor Size 1/0 to 4/0 AWG
 Conductor Type Solid/Stranded Copper
 Dimensions 1-23/32 in W x 1-3/4 in H
 Manufacturer Part Number 2B40
 Material Copper
 Series 2B Series
 Specifications 0.53 to 1.056 in Dia Conductor A
 Standards/Approvals UL E9809
 Tap Size 6 to 4/0 AWG

Features

▪ Castings and bolts of high-strength copper alloy
▪ Removable neoprene washers capture each bolt in bottom casting, aiding installation
▪ Without spacer
▪ 1/0 to 4/0 AWG stranded main conductor range
▪ 6 AWG solid to 4/0 AWG stranded tap conductor range
▪ 25/pack
▪ Removable cap
