ABB

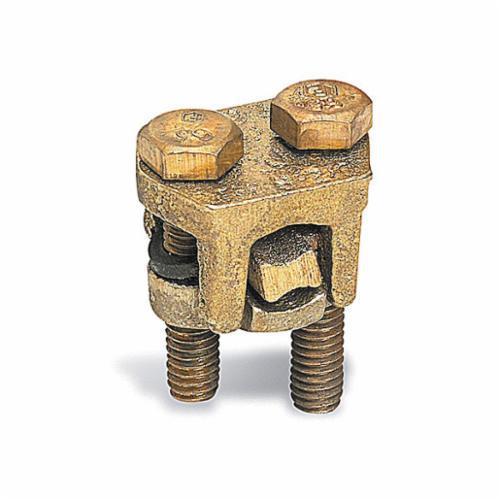

2B350W T-B TWO BOLT CLAMP 78378640018

Mouse over image to zoom, click to enlarge

  • 2B350W T-B TWO BOLT CLAMP 78378640018
  • 2B350W T-B TWO BOLT CLAMP 78378640018
  • 2B350W T-B TWO BOLT CLAMP 78378640018

Description: Blackburn®, 2B350W, Two Bolt Connector, 1-Piece, Series: 2BW, Solid/Stranded Copper Conductor, 4/0 AWG to 350 kcmil Conductor, 4 AWG to 350 kcmil Tap, 1/2 x 3/4 in Bolt, Specifications: 0.522 to 0.681 in Dia Conductor A, 0.204 to 0.681 in Dia Conductor B, 2-1/8 in W x 2-1/2 in H Dimensions

Manufacturer PN: 2B350W

UPC:  78378640018

Kendall Electric Inc PN: 3312805

Invoice Description:

2B350W T-B TWO BOLT CLAMP 78378640018


SPEC SHEET

▸ See All in Two Bolt Connectors


How Can We Make This Page Better?

Blackburn® 2B350W 2BW 1-Piece Two Bolt Connector, 4/0 AWG to 350 kcmil Conductor Solid/Stranded Copper Conductor, 1/2 x 3/4 in Bol

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.
Blackburn®, 2B350W, Two Bolt Connector, 1-Piece, Series: 2BW, Solid/Stranded Copper Conductor, 4/0 AWG to 350 kcmil Conductor, 4 AWG to 350 kcmil Tap, 1/2 x 3/4 in Bolt, Specifications: 0.522 to 0.681 in Dia Conductor A, 0.204 to 0.681 in Dia Conductor B, 2-1/8 in W x 2-1/2 in H Dimensions

Specifications

 Bolt Size 1/2 x 3/4 in
 Brand Name Blackburn
 Conductor Size 4/0 AWG to 350 kcmil
 Conductor Type Solid/Stranded Copper
 Dimensions 2-1/8 in W x 2-1/2 in H
 Manufacturer Part Number 2B350W
 Material Copper
 Series 2BW

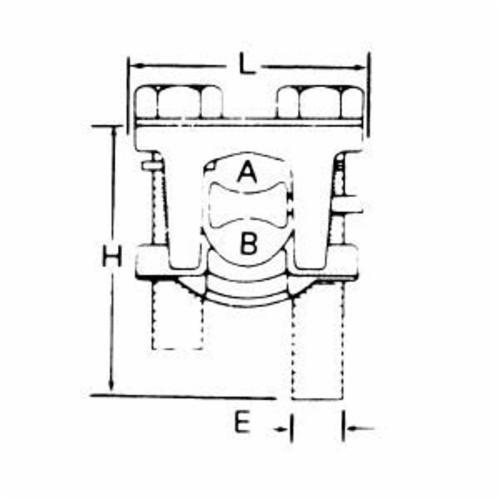

 Specifications 0.522 to 0.681 in Dia Conductor A, 0.204 to 0.681 in Dia Conductor B
 Standards/Approvals UL Listed|CSA Certified|UL File No. E9809
 Tap Size 4 AWG to 350 kcmil
 Type 1-Piece

Features

▪ Castings and bolts of high-strength copper alloy, spacer of ductile, high conductivity copper alloy
▪ Contoured spacer is ringed and swings easily over the conductor
▪ 4/0 AWG stranded to 350 kcmil main conductor range
▪ 4 AWG solid to 350 kcmil tap conductor range
▪ 1/pack
▪ 1-piece construction
