Emerson Electric
29853 RIDGE THREADING MACH 1224 110V 50HZ

Mouse over image to zoom, click to enlarge

  • 29853 RIDGE THREADING MACH 1224 110V 50HZ
  • 29853 RIDGE THREADING MACH 1224 110V 50HZ

Description: RIDGID® Threading Machine, Bare Tool, 1/4 to 4 in, 12/36 rpm, 1-1/2 hp, 110 V, 1/4 to 2 in Bolt, Reversing: Yes, Heavy Duty Rotary Type Forward/Off/Reverse and Integral Foot Switch Control

Manufacturer PN: 29853

UPC:  09569129853

Kendall Electric Inc PN: 3944378

Invoice Description:

29853 RIDGE THREADING MACH 1224 110V 50HZ


SPEC SHEET

▸ See All in Elec. Pipe Threading & Cutting Machines


How Can We Make This Page Better?

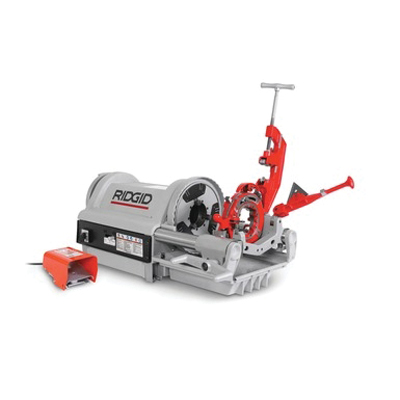

RIDGID® 29853 1224 Bare Tool Threading Machine With Foot Switch, 1/4 to 4 in Pipe, 1/4 to 2 in Bolt, 110 V, 1-1/2 hp, 12/36 rpm Speed

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Model 1224 threads a wide range of pipe including black, galvanized and plastic coated pipe, together with stainless steel, IMC and heavy wall conduit, as well as rod up to 30 Rockwell C.
RIDGID® Threading Machine, Bare Tool, 1/4 to 4 in, 12/36 rpm, 1-1/2 hp, 110 V, 1/4 to 2 in Bolt, Reversing: Yes, Heavy Duty Rotary Type Forward/Off/Reverse and Integral Foot Switch Control

Specifications

 Bare Tool Kit Bare Tool
 Bolt Size 1/4 to 2 in
 Brand Name RIDGID
 Control Type Heavy Duty Rotary Type Forward/Off/Reverse and Integral Foot Switch
 Horsepower 1-1/2 hp
 Includes (1) 714 (914) 2-1/2 to 4 in Receding Self Opening Die Head, (1) 711 (911) 1/4 to 2 in Universal Self Opening Die Head, (1) 764 Cutter, (1) 744 Reamer, (3) Sets of Dies (1/2 to 4 in), (1) Gallon Premium Oil, (1) F229 Spare Wheel, (3) Hex Keys: 1-3/4 in Combination Wrench and (1) Tool box
 Manufacturer Part Number 29853
 PART NUMBER KEYWORDS 29853 ; 095691298539 ; 95691298539 ; 09569129853 ; 00095691298539 ; 0095691298539
 Pipe Capacity 1/4 to 4 in
 Reversing Yes
 Speed 12/36 rpm
 Voltage Rating 110 V

Features

▪ An induction motor helps minimize noise
▪ A special capacitor-start/capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
▪ Constant and proper lubrication of dies and workpiece with through head oiling
▪ 2-speed gear box with a 3:1 ratio gear box
▪ Hammer-type with replaceable rocker-action jaw inserts chuck
▪ Self-priming, gerotor-type, automatic-reversing, constant-flow oiling pump
▪ Through die head oiling
