Leviton

Mouse over image to zoom, click to enlarge

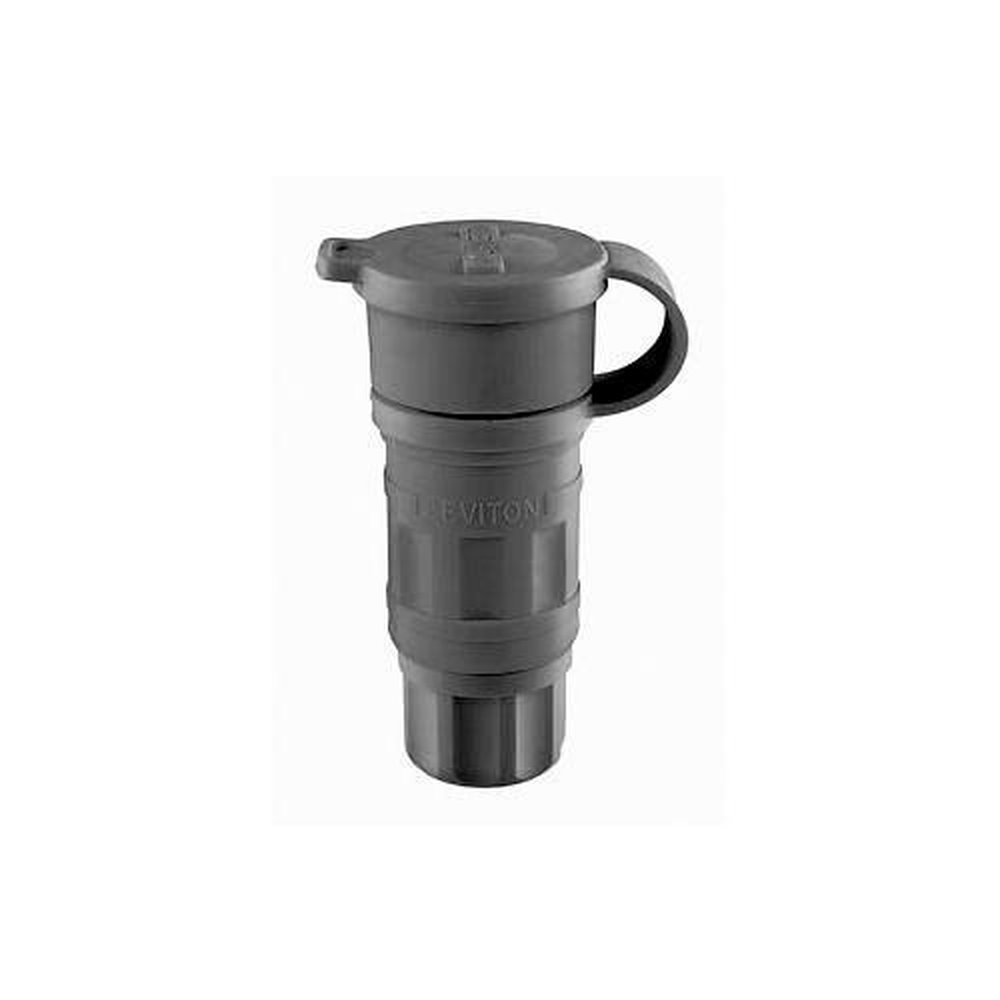

Description: Leviton®, 27W47-B, Locking Connector, 1-Phase Grounding Watertight Cable Mount, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA L5-20R NEMA Rating, Industrial Grade, IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, TPV, Black, 2.5 in Dia x 5.52 in L Dimensions

Manufacturer PN: 27W47-B

UPC: 07847701466

Kendall Electric Inc PN: 2589673

Invoice Description:

27W47-B LEVITON WETGUARD CONN 07847701466

SPEC SHEET

How Can We Make This Page Better?

Leviton® 27W47-B 1-Phase Grounding Watertight Cable Mount Locking Connector, 125 V AC, 20 A, 2 Poles, 3 Wires, Black

Note: Lead times are estimates only

Description Specifications Resources

Description

Leviton® Wetguard® line of industrial watertight wiring devices are the most versatile, well engineered watertight devices ON the market. They meet IP67 and NEMA ratings for water ingress protection and offer many significant advantages over competitive brands.

Leviton®, 27W47-B, Locking Connector, 1-Phase Grounding Watertight Cable Mount, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA L5-20R NEMA Rating, Industrial Grade, IP67 Enclosure, 3/8 to 7/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, TPV, Black, 2.5 in Dia x 5.52 in L Dimensions

Specifications

Amperage Rating	20 A
Application	Industrial Applications
Brand Name	Leviton®
Color	Black
Cord Diameter	3/8 to 7/8 in
Dimensions	2.5 in Dia x 5.52 in L
Enclosure	IP67
Grade	Industrial
Manufacturer Part Number	27W47-B
Material	TPV
NEMA Rating	NEMA L5-20R
Number of Poles	2
Number of Wires	3
PART NUMBER KEYWORDS	27W47-B ; 27W47B
Standards/Approvals	ANSI C73\|CSA C22.2 No.42 File No. LR406\|NOM 057\|NEMA WD1/WD6\|UL 498\|UL94 V-2 Flammability Rating
Temperature Rating	-40 to 60 deg C
Terminal Type	Screw
Type	1-Phase Grounding Watertight Cable Mount
Video Links
Voltage Rating	125 V AC
