Eaton

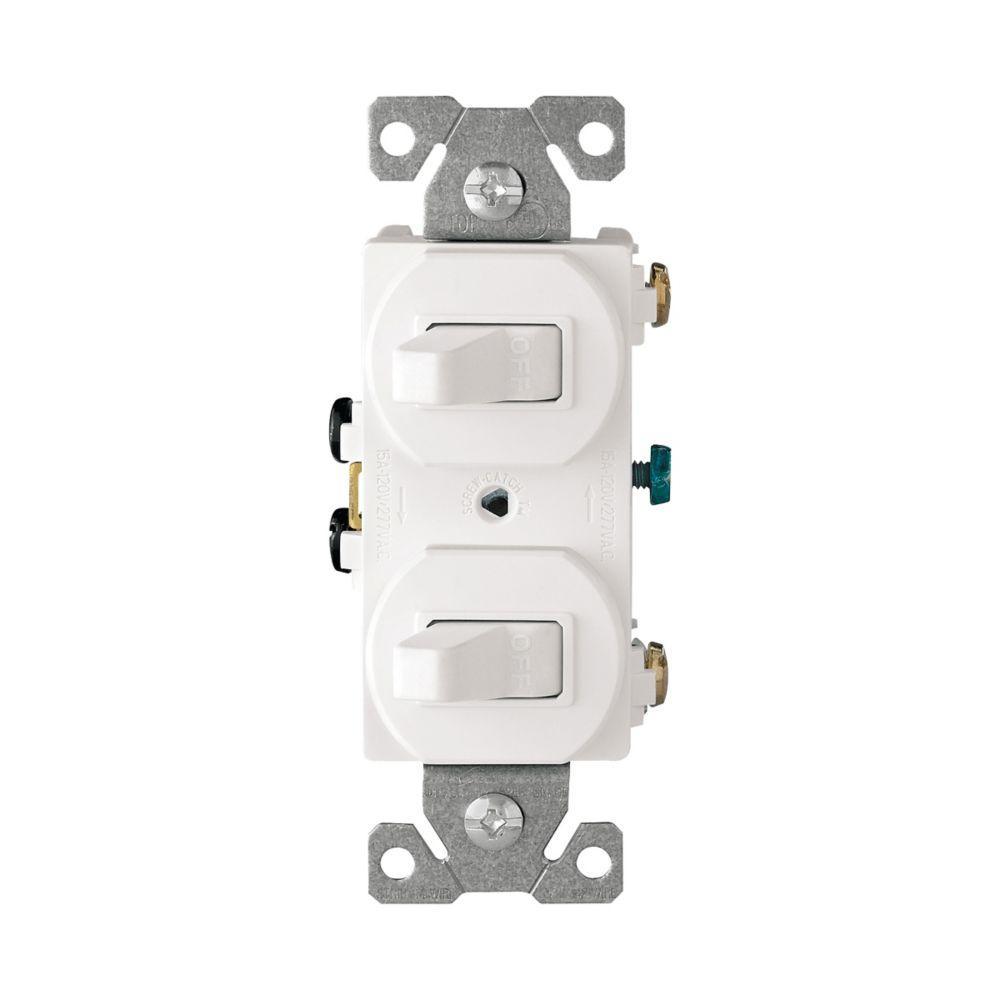

271W-BOX CWD SINGLE POLE STACK SWITCH

Mouse over image to zoom, click to enlarge

  • 271W-BOX CWD SINGLE POLE STACK SWITCH
  • 271W-BOX CWD SINGLE POLE STACK SWITCH

Description: EATON Arrow Hart™ Eaton Wiring Devices AC Toggle Combination Switch, Duplex, 15 A at 120 V AC Electrical Rating, 1 Pole, Surface Mounting, 4.19 in H x 1.37 in W x 0.88 in D Size, 30000 Operating Cycles, Environmental Conditions: -20 to 60 deg C Operating Temperature, Thermoplastic, White

Manufacturer PN: 271W-BOX

UPC:  03266475031

Kendall Electric Inc PN: 2511401

Invoice Description:

271W-BOX CWD SINGLE POLE STACK SWITCH


SPEC SHEET

▸ See All in Switches & Switches


How Can We Make This Page Better?

EATON Arrow Hart™ Eaton Wiring Devices 271W-BOX Duplex AC Toggle Combination Switch, 15 A at 120 V AC, 1 Poles

Log In for Pricing and Availability




Description

EATON Arrow Hart™ Eaton Wiring Devices AC Toggle Combination Switch, Duplex, 15 A at 120 V AC Electrical Rating, 1 Pole, Surface Mounting, 4.19 in H x 1.37 in W x 0.88 in D Size, 30000 Operating Cycles, Environmental Conditions: -20 to 60 deg C Operating Temperature, Thermoplastic, White

Specifications

 Application Commercial and Non-Residential Applications
 Brand Name EATON
 Color White
 Electrical Ratings 15 A at 120 V AC
 Environmental Conditions -20 to 60 deg C Operating Temperature
 Manufacturer Part Number 271W-BOX
 Material Thermoplastic
 Mounting Surface
 Number of Poles 1
 Operating Cycles 30000
 PART NUMBER KEYWORDS 271W-BOX ; 271WBOX ; 14064441 ; 032664750311 ; 32664750311 ; 03266475031 ; 00032664750311
 Size 4.19 in H x 1.37 in W x 0.88 in D
 Standards/Approvals cULus Listed,NOM,RoHS Compliant
 Type Duplex

Features

▪ Screw connection
▪ Heavy duty brass contact
▪ Toggle actuator
▪ Switch action
▪ Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
▪ Mounting straps are zinc plated to for added corrosion-resistance
▪ Back and Side wire connection
▪ Grounding terminal screw standard
▪ Receptacles have triple wire line contacts and double wipe ground contacts to insure long term plug retention
▪ THK steel mounting strap zinc plated for corrosion-resistance
▪ Break-off provision for wiring both devices on same circuit or on separate circuits
▪ Terminal screws are backed out and ready for wiring to enhance ease of installation
▪ Side wire terminals accept up to 10 AWG solid or stranded wire
▪ Pilot light may be wired to indicate power On or power Off
▪ Combination slot Phillips® head mounting and terminal screws ease installation

Resources

 Catalog Page
 Product Data Sheet
