Leviton

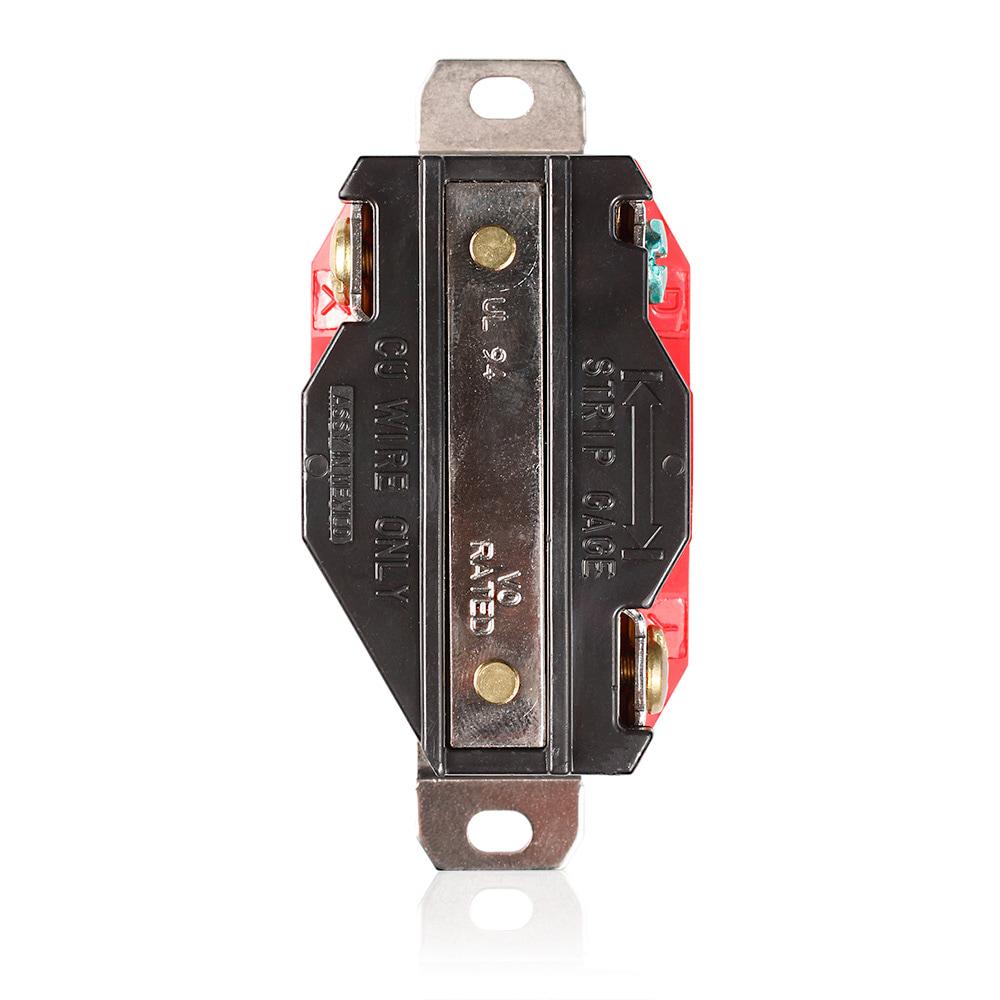

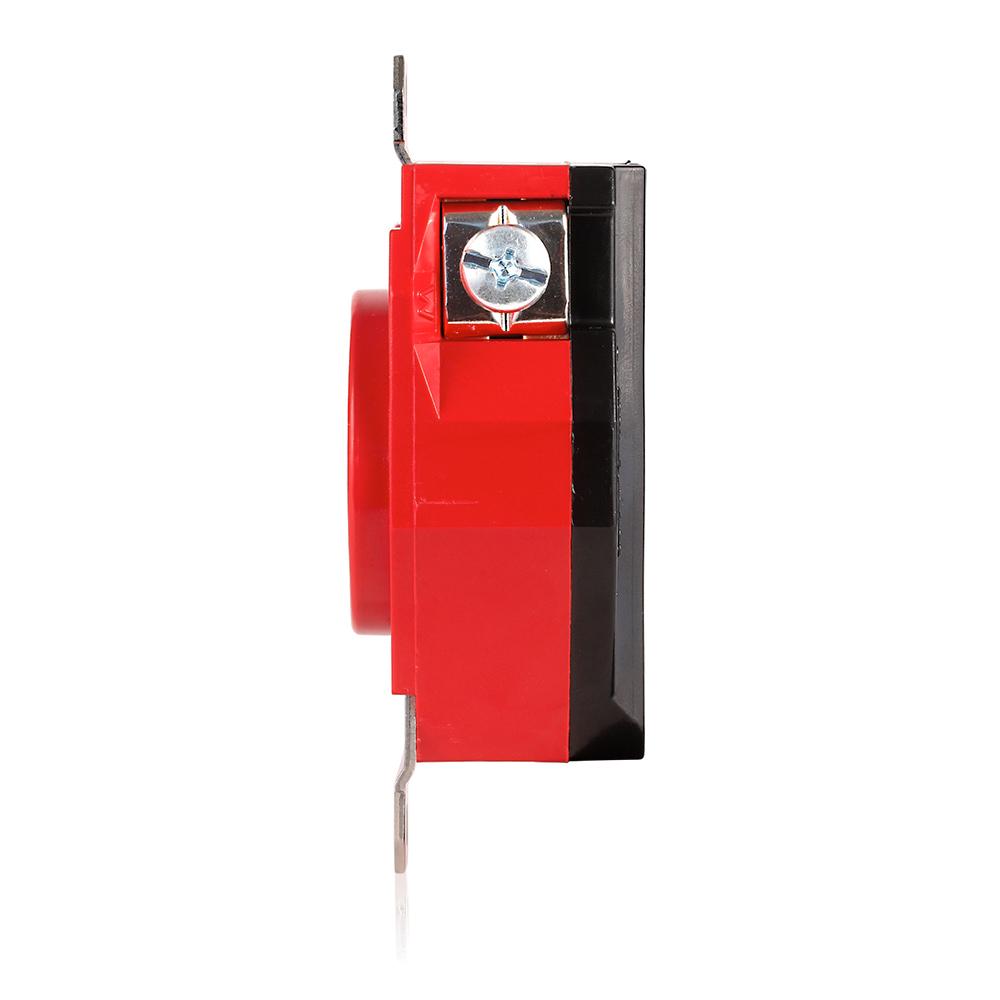

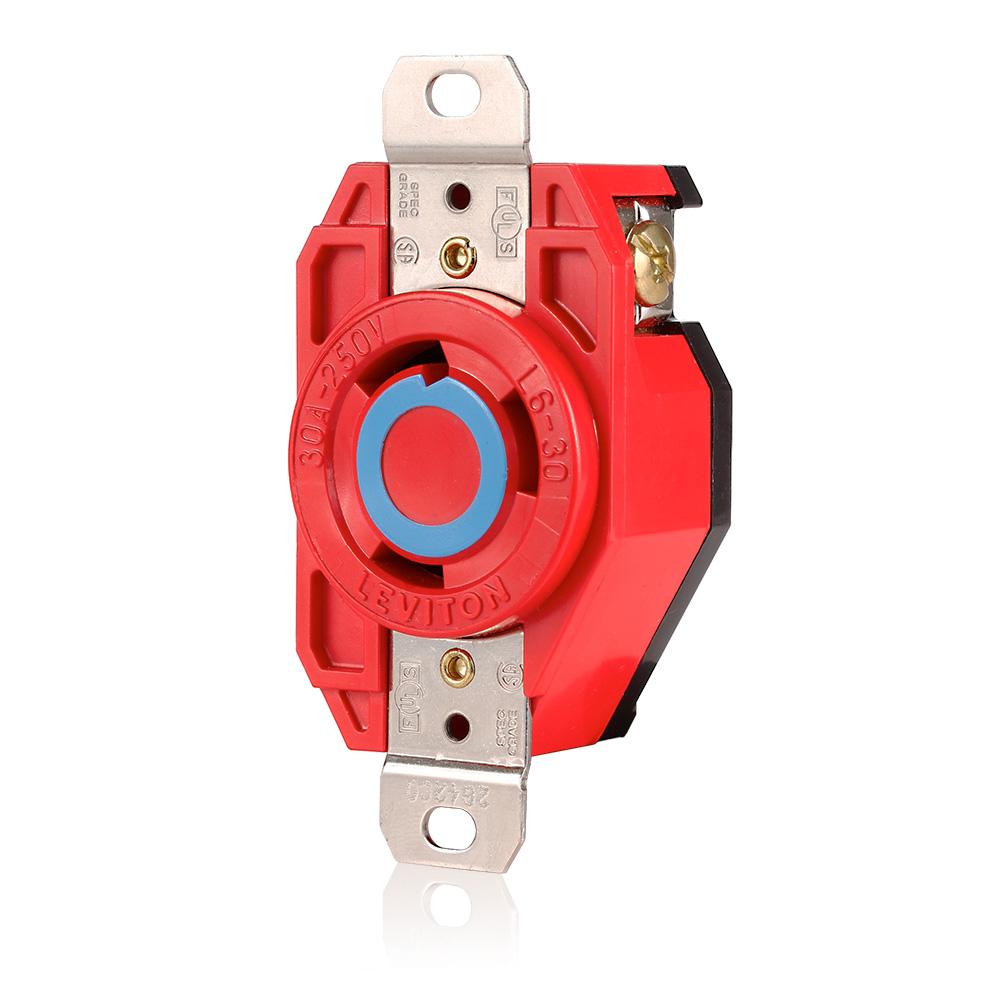

2620-R LEVITON RED REC LOCK 2P3W NEMA L6-30R 30A250V

Mouse over image to zoom, click to enlarge

  • 2620-R LEVITON RED REC LOCK 2P3W NEMA L6-30R 30A250V
  • 2620-R LEVITON RED REC LOCK 2P3W NEMA L6-30R 30A250V
  • 2620-R LEVITON RED REC LOCK 2P3W NEMA L6-30R 30A250V
  • 2620-R LEVITON RED REC LOCK 2P3W NEMA L6-30R 30A250V
  • 2620-R LEVITON RED REC LOCK 2P3W NEMA L6-30R 30A250V

Description: Leviton®, 2620-R, Receptacle, Grounding, 250 V AC, 30 A, 2 Pole, 3 Wires, NEMA L6-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Screw Terminal, Valox 357, Red

Manufacturer PN: 2620-R

UPC:  07847733318

Kendall Electric Inc PN: 4793731

Invoice Description:

2620-R LEVITON RED REC LOCK 2P3W NEMA L6-30R 30A250V


SPEC SHEET

How Can We Make This Page Better?

Leviton® 2620-R Grounding Receptacle, 250 V AC, 30 A, 2 Poles, 3 Wires, Red

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton®, 2620-R, Receptacle, Grounding, 250 V AC, 30 A, 2 Pole, 3 Wires, NEMA L6-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Screw Terminal, Valox 357, Red

Specifications

 Amperage Rating 30 A
 Brand Name Leviton®
 Color Red
 Grade Industrial
 Manufacturer Part Number 2620-R
 Material Valox 357
 NEMA Rating NEMA L6-30R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 2620-R ; 2620R
 Standards/Approvals UL 498|C22.2 No. 42|ANSI C-73|NOM 057
 Temperature Rating -40 to 60 deg C
 Terminal Type Screw
 Type Grounding
 Voltage Rating 250 V AC

Features

▪ Single piece brass contact provides longer life and continuous conductivity vs multi-piece riveted styles
▪ Extra thick, corrosion resistant nickel plated brass strap
▪ Amperage, voltage, NEMA configuration and Manufacturer molded into face lasts longer than stamping and makes for fast, easy identification and replacement
▪ Terminal identification molded into the body lasts longer than stamping
▪ Nickel plated brass clamp type terminals support back and side wiring and resist corrosion
▪ Color-coded voltage ID ring on face for quick visual identification
▪ UL V-0 flammability rating
