Description: Bussmann NH Fuse Link, Size 000 Dual Indicator Low Voltage, Series: NHG, 500 V, 25 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic, 78.5 mm L x 21 mm W Dimensions

Manufacturer PN: 25NHG000B

UPC:  05171262579

Kendall Electric Inc PN: 2597083

Invoice Description:

25NHG000B BUSS DIVISION


SPEC SHEET

▸ See All in Fuse Links


How Can We Make This Page Better?

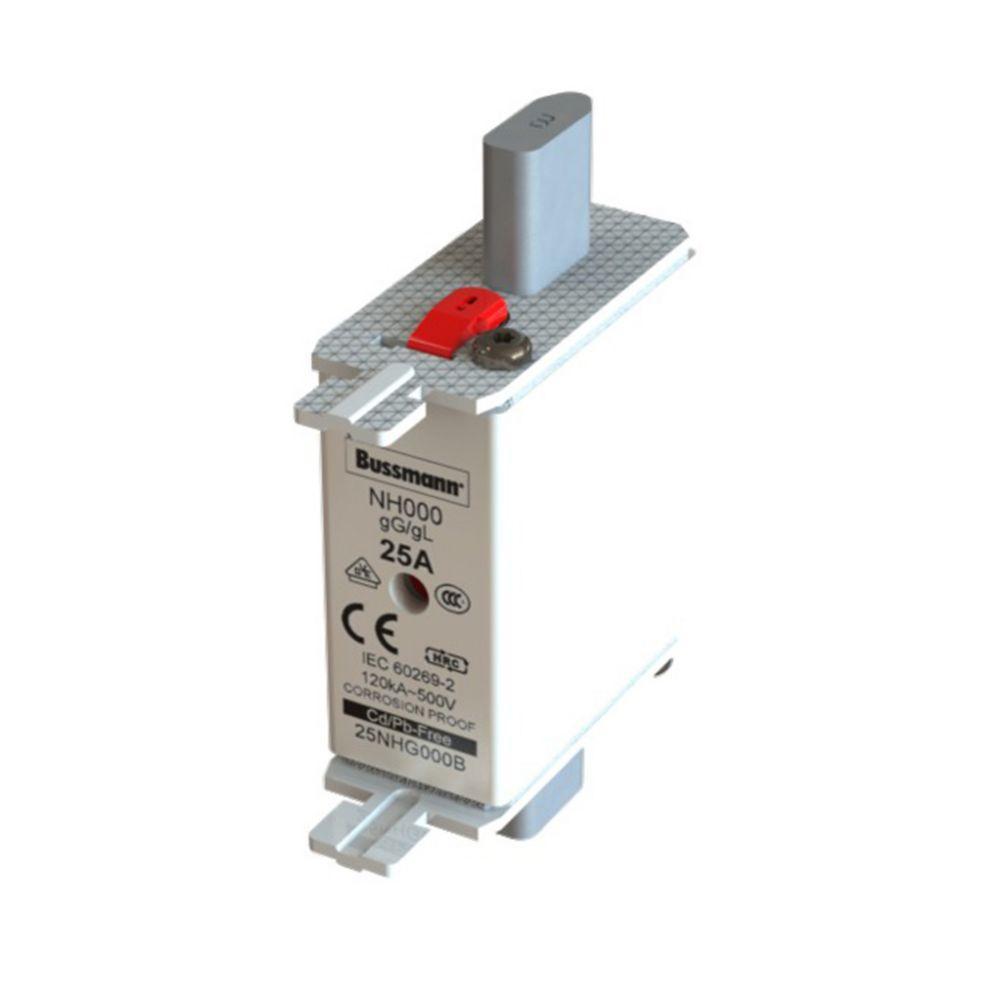

Bussmann 25NHG000B Size 000 Dual Indicator Low Voltage NH Fuse Link, 500 V, 25 A, For Use With Class C gG/gL Fuse, Ceramic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Bussmann NH Fuse Link, Size 000 Dual Indicator Low Voltage, Series: NHG, 500 V, 25 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic, 78.5 mm L x 21 mm W Dimensions

Specifications

 Amperage Rating 25 A
 Application Electrical Assemblies, Panels and EOEMs, Aftermarket, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems Applications
 Brand Name Bussmann
 Dimensions 78.5 mm L x 21 mm W
 Frequency Rating 45 to 62 Hz
 Manufacturer Part Number 25NHG000B
 Material Ceramic
 Mounting Type Holder
 PART NUMBER KEYWORDS 25NHG000B ; 10517389 ; 051712625791 ; 51712625791 ; 05171262579 ; 00051712625791 ; 5027590470933
 Rated Breaking Capacity 120 kA
 Series NHG
 Standards/Approvals CCC Certified|CE Marking|DIN 43620|EAC Certified|IEC 60269|RoHS Compliant|UL Listed|VDE 0636
 Suitable For Use With Class C gG/gL Fuse
 Type Size 000 Dual Indicator Low Voltage
 Video Links
 Voltage Rating 500 V

Features

▪ Voltage conducting metal live gripping lugs
▪ Reliable dual indicator system
▪ Low temperature rise
▪ Globally compliant
▪ Steatite insulator, corrosion-resistant aluminum end plates and plated steel screws, full contact silver plated brass blade construction
▪ Cadmium and lead-free
▪ Square body with knife blade contact
▪ Live gripping lugs
