Eaton

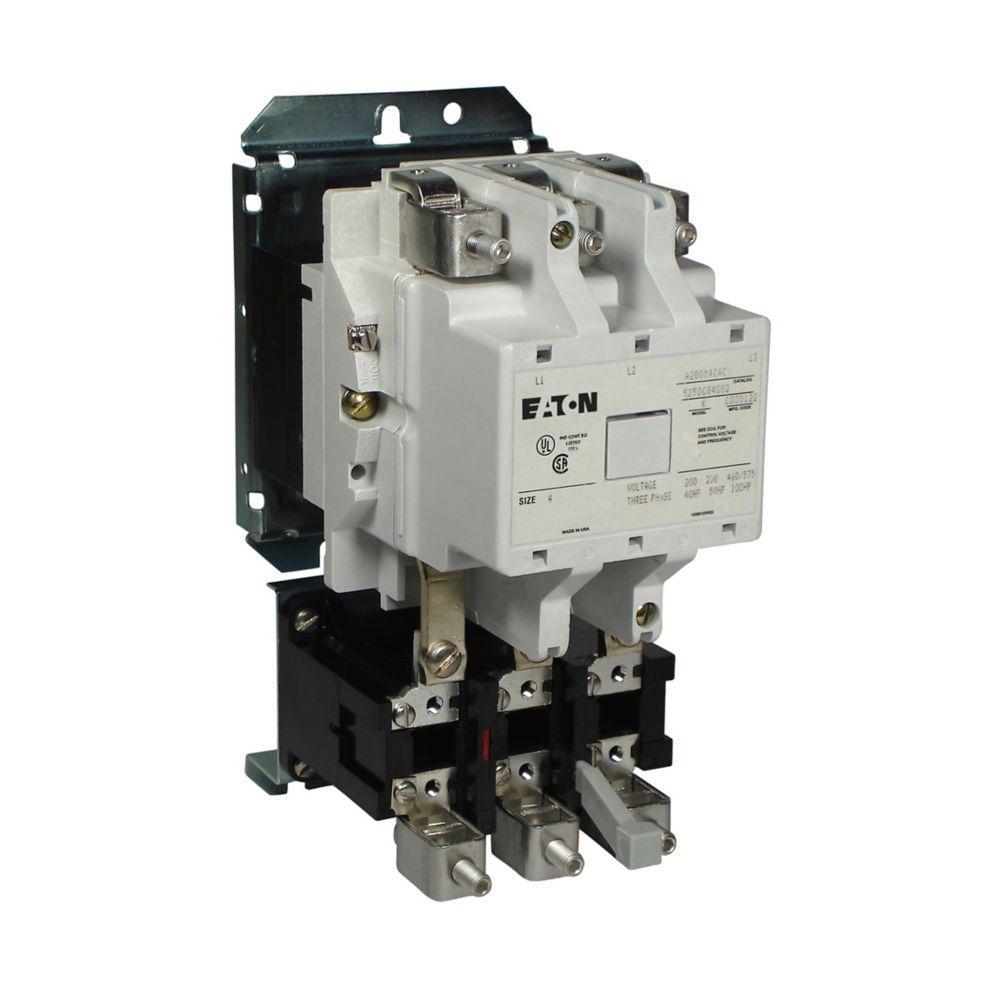

A200M5CX NEMA FULL VOLTAGE NON-REVERSING STARTER

Mouse over image to zoom, click to enlarge

  • A200M5CX NEMA FULL VOLTAGE NON-REVERSING STARTER
  • A200M5CX NEMA FULL VOLTAGE NON-REVERSING STARTER
  • A200M5CX NEMA FULL VOLTAGE NON-REVERSING STARTER

Description: EATON NEMA Starter, Magnetic, Series: A200, 600 V AC, 270 A, 60 Hz Frequency, 200 hp Motor, 480 VAC Coil, 3 Pole, Screw Connection, Non-Reversing Action, Bi-Metal Overload Relay, 1NO-1NC Auxiliary, NEMA 5 Enclosure, -4 to 140 deg F Operating, 7.75 in L x 12 in W x 7.22 in H Dimensions

Manufacturer PN: A200M5CX

UPC:  78667821445

Kendall Electric Inc PN: 4367577

Invoice Description:

A200M5CX NEMA FULL VOLTAGE NON-REVERSING STARTER


SPEC SHEET

▸ See All in NEMA Starters


How Can We Make This Page Better?

EATON A200M5CX Magnetic NEMA Starter, 480 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 5 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

All Class A200 non-reversing starters utilize Type B three-pole overload relays with optional Type A for auto reset applications. Sizes 5 and 6 include the needed current transformers. Moving and stationary contacts are front accessible for simple and easy inspection and maintenance. All Class A200 starters are UL listed and recognized and are CSA certified.
EATON NEMA Starter, Magnetic, Series: A200, 600 V AC, 270 A, 60 Hz Frequency, 200 hp Motor, 480 VAC Coil, 3 Pole, Screw Connection, Non-Reversing Action, Bi-Metal Overload Relay, 1NO-1NC Auxiliary, NEMA 5 Enclosure, -4 to 140 deg F Operating, 7.75 in L x 12 in W x 7.22 in H Dimensions

Specifications

 Amperage Rating 270 A
 Application Motor and Power Control Equipment Applications
 Auxiliary Contact Rating 1NO-1NC
 Brand Name EATON
 Coil Voltage 480 V AC
 Connection Type Screw
 Dimensions 7.75 in L x 12 in W x 7.22 in H
 Enclosure NEMA 5
 Frequency Rating 60 Hz
 Manufacturer Part Number A200M5CX
 Motor Power 200 hp
 Number of Poles 3
 Operating Temperature -4 to 140 deg F
 Overload Relay Bi-Metal
 Series A200
 Standards/Approvals UL Listed,CSA Certified
 Type Magnetic
 Voltage Rating 600 V AC

Features

▪ Rectified AC/DC coils available to reduce premature drop-out or "kiss" problems due to inherent low voltage conditions
▪ Clapper design armature assembly pivots on needle bearings resulting in quick, smooth opening and closing of the magnet
▪ Stainless steel kick-out spring assures quick, positive drop-out time
▪ Front removable parts all current carrying parts front removable for easy inspection and maintenance
▪ 75 hp at 208 VAC, 100 hp at 240 VAC, 200 hp at 480 VAC
