Eaton
  • 255889 CH P1-25/I2/SVB-SW/HI11-NA MAIN SW I2/SVB
  • 255889 CH P1-25/I2/SVB-SW/HI11-NA MAIN SW I2/SVB
  • 255889 CH P1-25/I2/SVB-SW/HI11-NA MAIN SW I2/SVB
  • 255889 CH P1-25/I2/SVB-SW/HI11-NA MAIN SW I2/SVB
  • 255889 CH P1-25/I2/SVB-SW/HI11-NA MAIN SW I2/SVB

Description: EATON Rotary Disconnect Switch, Main, 690 V AC, 25 A, 15 hp, 1/3 ph, 50/60 Hz Frequency, 3 Pole, 50 kA Short Circuit, 1NO-1NC 1 Form A/1 Form B Contact Form, Handle Actuator, NEMA 1/12/IP65 Enclosure, Surface Mounting, Screw Terminal, -25 to 40 deg C, 7.09 in H x 3.94 in W Dimensions

Manufacturer PN: 255889

UPC:  01508255889

Kendall Electric Inc PN: 3703821

Invoice Description:

255889 CH P1-25/I2/SVB-SW/HI11-NA MAIN SW I2/SVB


SPEC SHEET

▸ See All in Enclosed Rotary Disconnects


How Can We Make This Page Better?

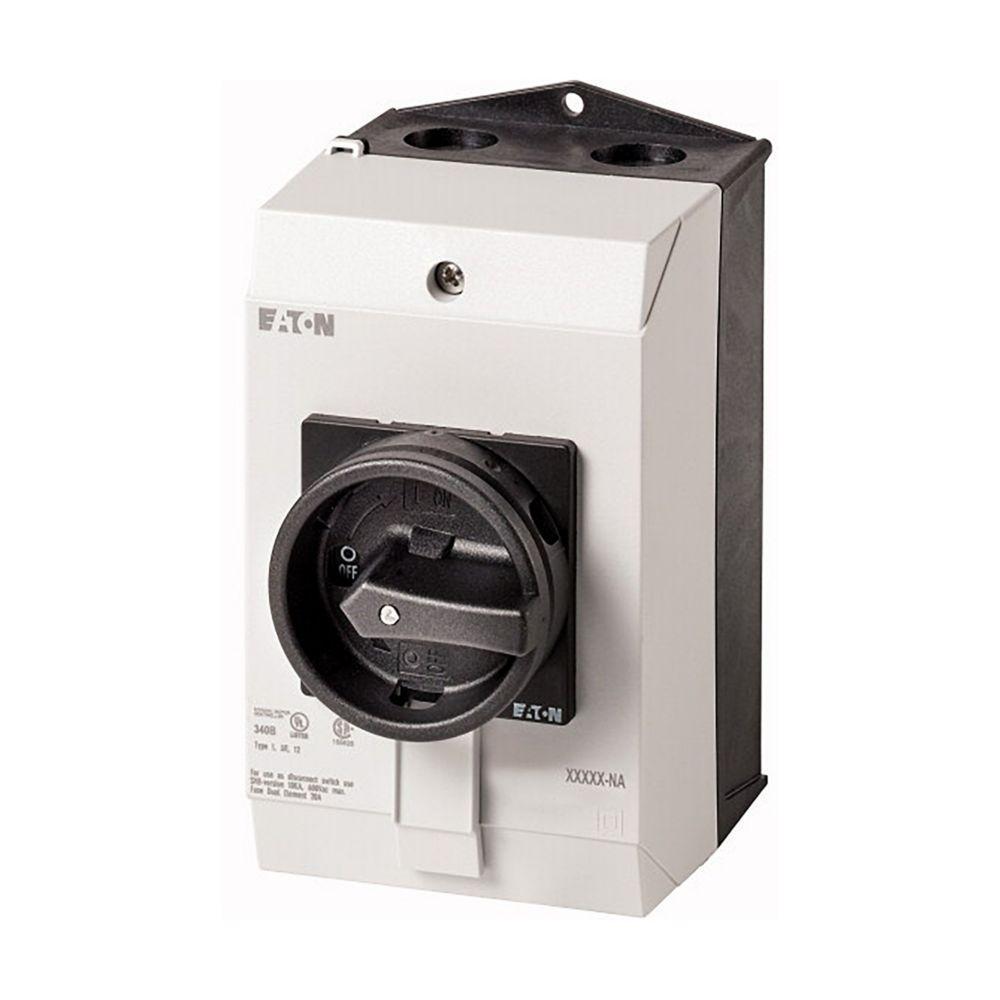

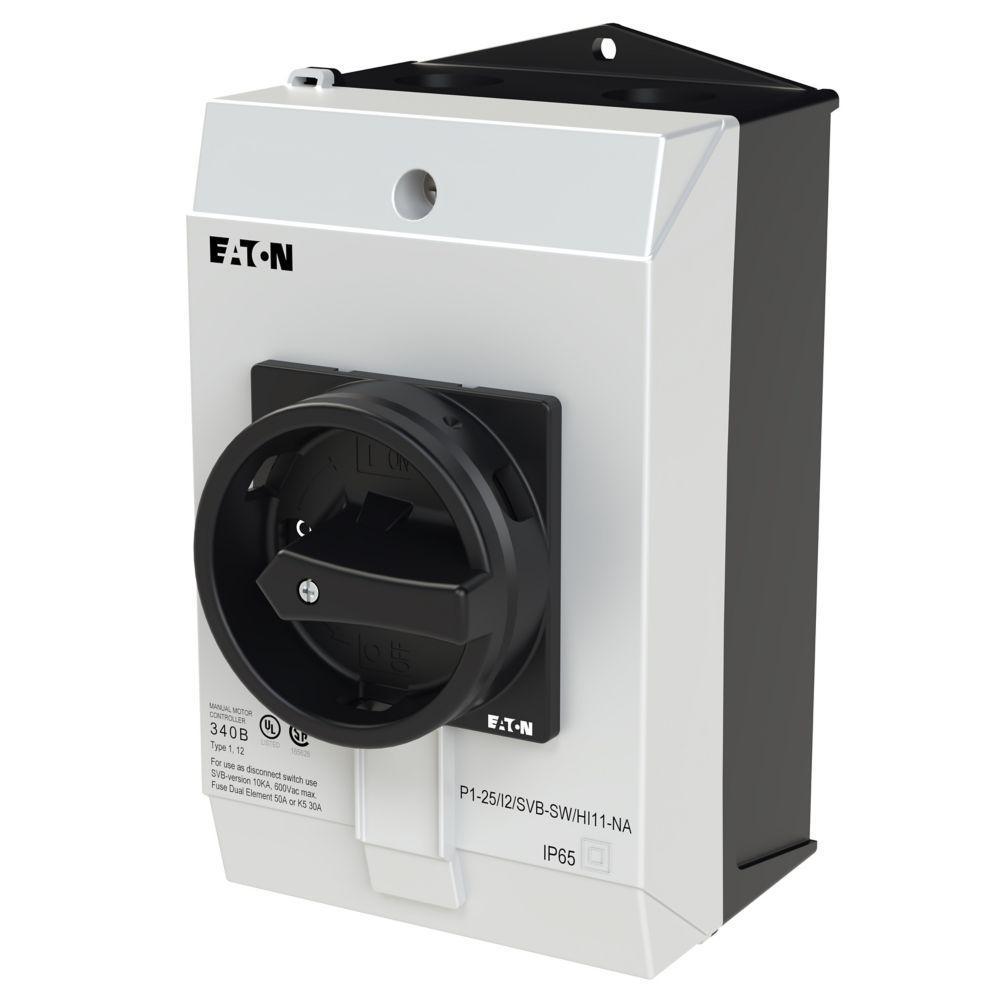

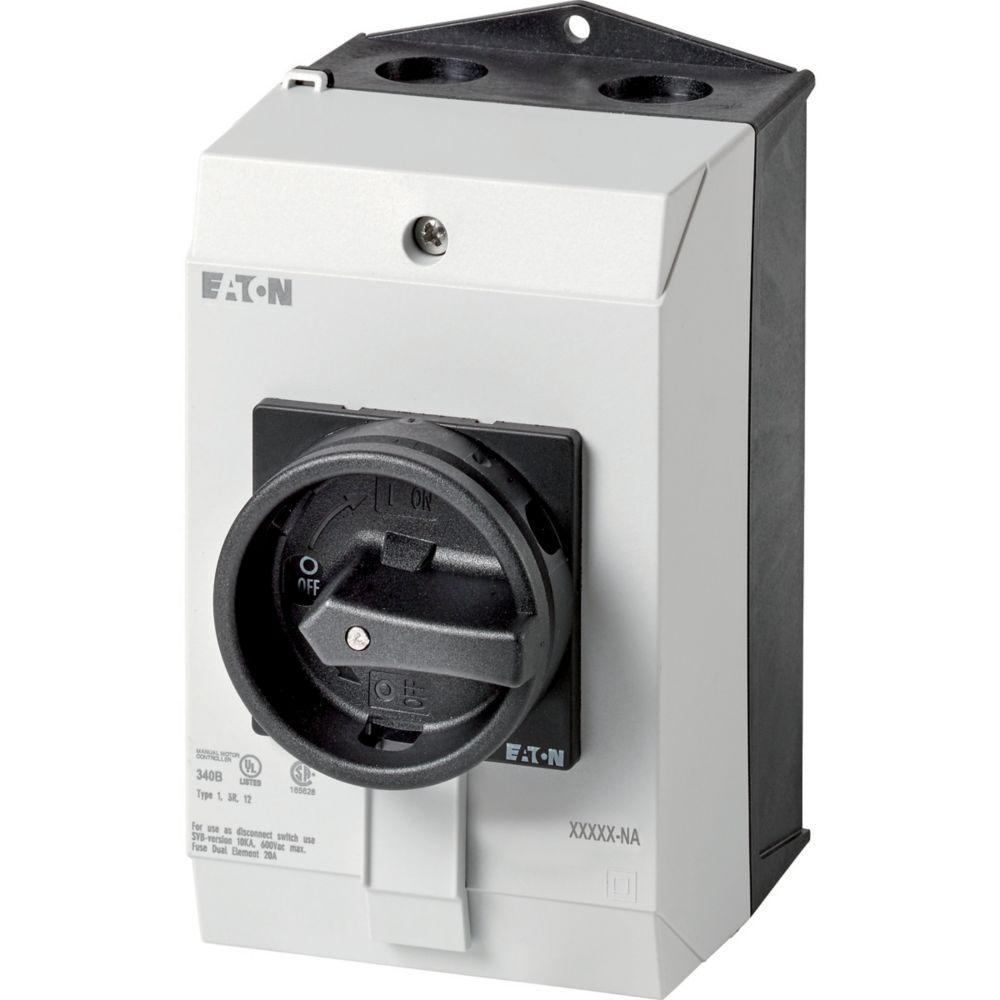

EATON 255889 Main Rotary Disconnect Switch With Black Rotary Handle and Locking Ring, 690 V AC, 25 A, 15 hp, 1NO-1NC 1 Form A/1 Form B Contact, 3 Poles

Log In for Pricing and Availability




Description

Eaton's high performance, robust and compact T Rotary switches and P switch-disconnectors are used in industry, trade and building engineering applications. The ten basic switch types (TM, T0, T3, T5,T5B, T6, T8, P1, P3 and P5) are available in four different mounting options (surface mounting, flush mounting, rear mounting, and service distribution board mounting). They can be selected and configured in a multitude of contact sequences.
EATON Rotary Disconnect Switch, Main, 690 V AC, 25 A, 15 hp, 1/3 ph, 50/60 Hz Frequency, 3 Pole, 50 kA Short Circuit, 1NO-1NC 1 Form A/1 Form B Contact Form, Handle Actuator, NEMA 1/12/IP65 Enclosure, Surface Mounting, Screw Terminal, -25 to 40 deg C, 7.09 in H x 3.94 in W Dimensions

Specifications

 Actuator Type Handle
 Amperage Rating 25 A
 Brand Name EATON
 Contact Form 1NO-1NC 1 Form A/1 Form B
 Dimensions 7.09 in H x 3.94 in W
 Enclosure NEMA 1/12/IP65
 Frequency Rating 50/60 Hz
 Horsepower 15 hp
 Manufacturer Part Number 255889
 Mounting Type Surface
 Number of Poles 3
 Phase 1/3
 Short Circuit Current Rating 50 kA
 Standards/Approvals CSA-C22.2 No. 60947-4-1-14,UL Listed,UL 60947-4-1,IEC/EN 60204,IEC/EN 60947-3,VDE 0660,UL File No.: E36332,UL File No.: E36332,IEC/EN 60947,IEC/EN 60947-3,VDE 0660,Répertorié UL,IEC/EN 60947-3,UL,CSA File No.: 012528,IEC/EN 60947-3,CSA-C22.2 No. 94,UL Category Control No.: NLRV,VDE 0660,CE,UL Category Control No.: NLRV,CSA-C22.2 No. 94,CSA-C22.2 No. 94,CSA-C22.2 No. 60947-4-1-14,CSA,CSA Class No.: 3211-05,UL,CE,CSA-C22.2 No. 94,IEC/EN 60204,CE,CSA-C22.2 No. 60947-4-1-14,UL 60947-4-1,UL 60947-4-1,IEC/EN 60947,IEC/EN 60947,UL File No.: E36332,UL Listed,CE,CSA,CSA-C22.2 No. 60947-4-1-14,CSA File No.: 012528,UL 60947-4-1,CSA Class No.: 3211-05,UL Listed,CSA-C22.2 No. 60947-4-1-14,CSA File No.: 012528,CSA File No.: 012528,UL Category Control No.: NLRV,VDE 0660,UL 60947-4-1,IEC/EN 60947,CSA-C22.2 No. 94,VDE 0660,VDE 0660,UL,UL 60947-4-1,CE,UL,CSA-C22.2 No. 94,CSA Class No.: 3211-05,IEC/EN 60947,CSA Class No.: 3211-05,IEC/EN 60204,IEC/EN 60204,UL Listed,UL,CSA Class No.: 3211-05,IEC/EN 60204,UL Category Control No.: NLRV,UL Category Control No.: NLRV,UL geregistreerd,CE,CSA,UL File No.: E36332,CSA-C22.2 No. 60947-4-1-14,IEC/EN 60947-3,CSA,UL File No.: E36332,CSA File No.: 012528,CSA File No.: 012528,IEC/EN 60947-3,CSA,CSA,UL,UL Category Control No.: NLRV,CSA Class No.: 3211-05,UL File No.: E36332,IEC/EN 60204,IEC/EN 60947,UL Listed,UL File No.: E36332,UL,CSA File No.: 012528,CSA Class No.: 3211-05,CE,VDE 0660,CSA,CSA-C22.2 No. 60947-4-1-14,UL Category Control No.: NLRV,CSA-C22.2 No. 94,UL 60947-4-1,IEC/EN 60947,IEC/EN 60204,IEC/EN 60947-3
 Temperature Rating -25 to 40 deg C
 Terminal Type Screw
 Type Main
 Voltage Rating 690 V AC

Features

▪ Interlockable stop function
▪ 1 hp at 120 VAC, 2 hp at 200 VAC, 3 hp at 240 VAC at 1-phase, 3 hp at 200 VAC, 5 hp at 240 VAC, 10 hp at 480 VAC, 15 hp at 600 VAC at 3-phase
