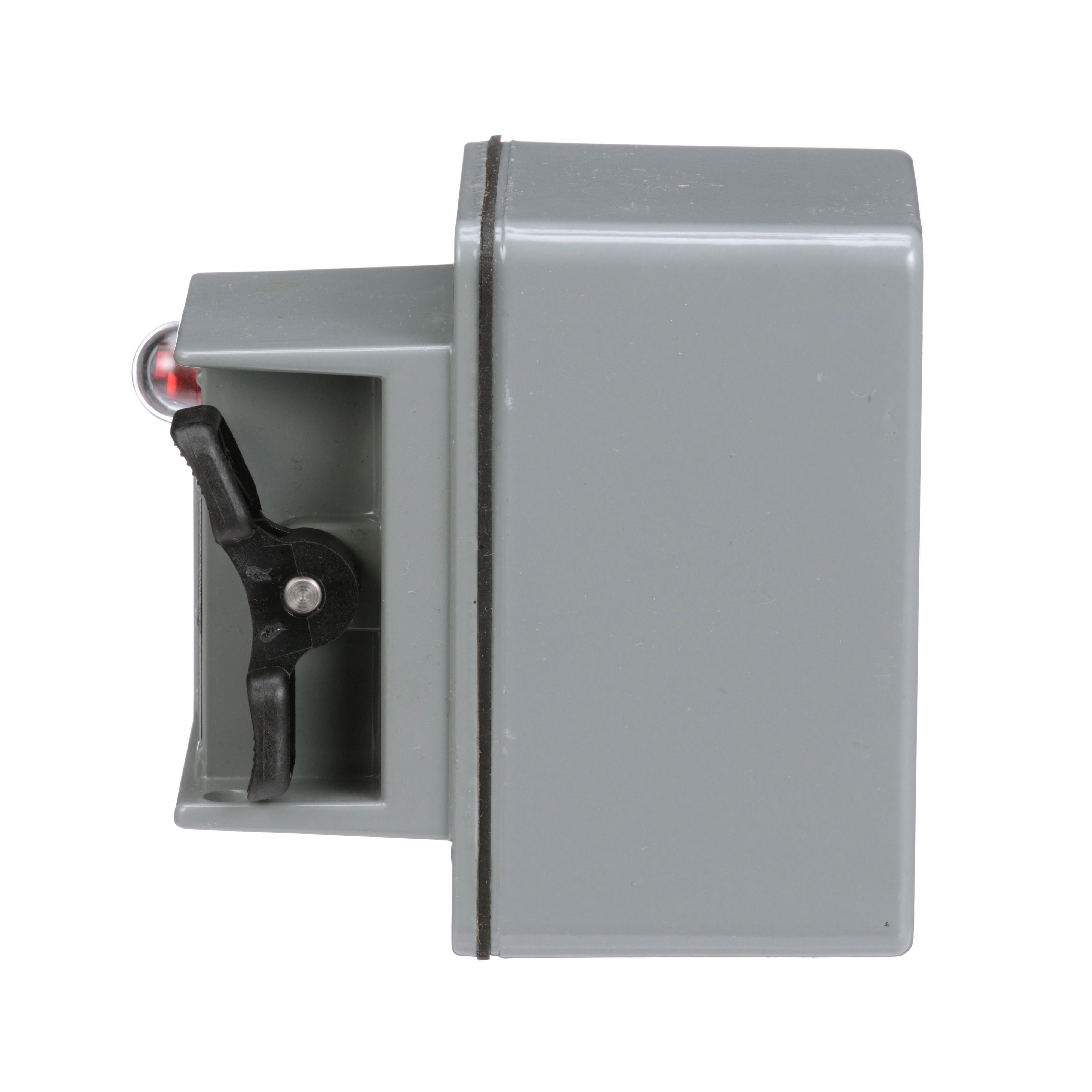

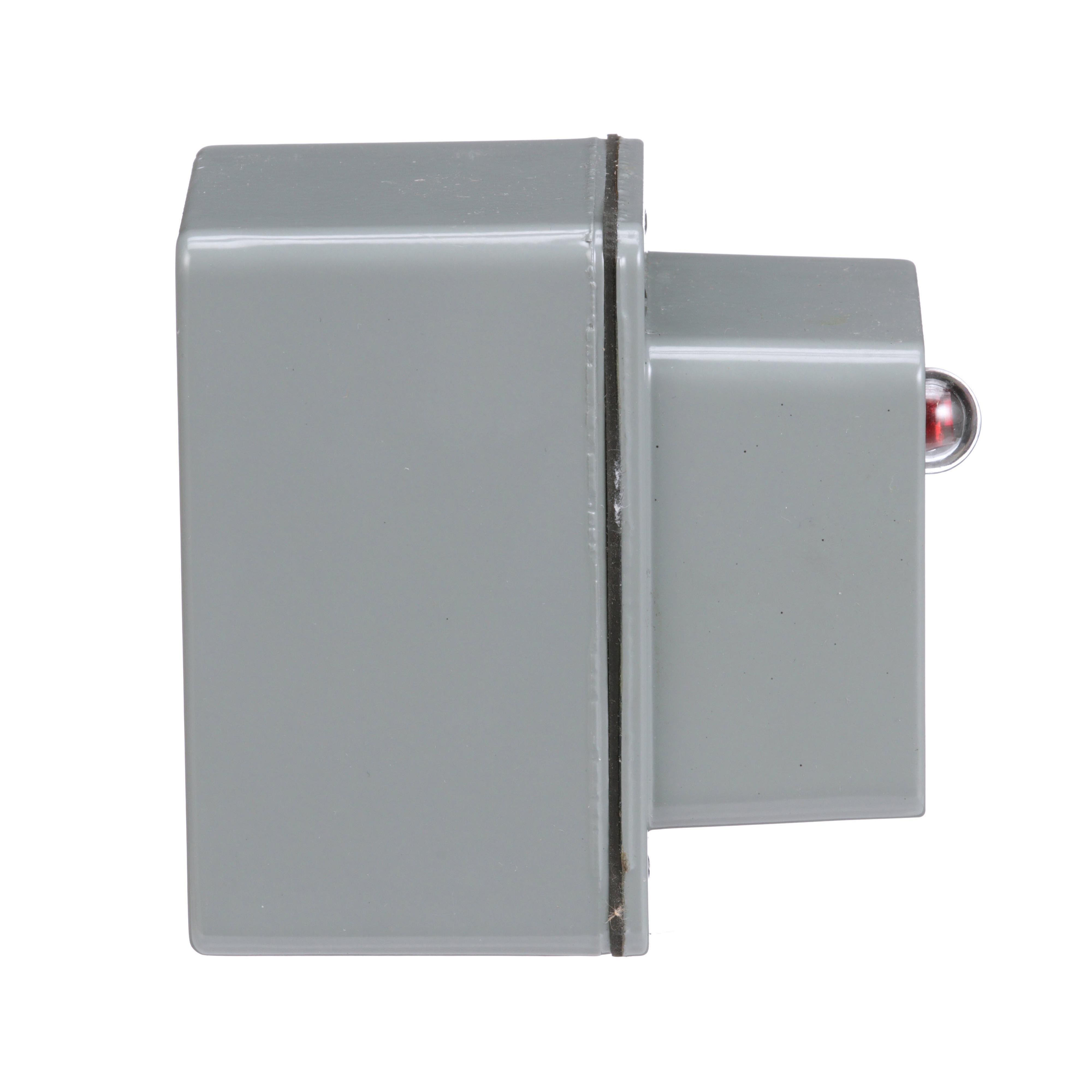

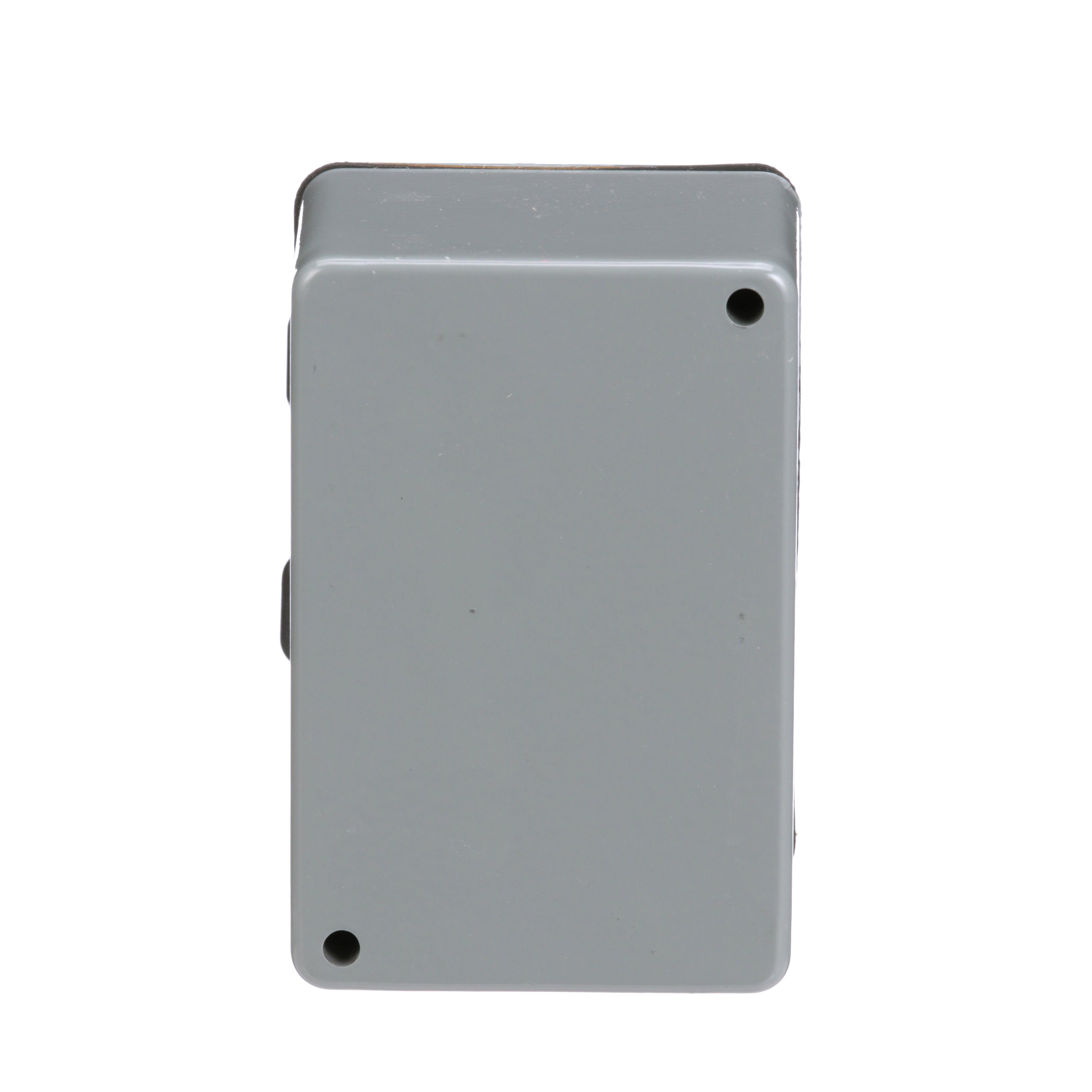

Description: Square D™ Manual Switch, 3-Phase Type K Non-Reversing Single Unit, 600 VAC, 230 VDC, 30 A, 1 hp, 1-1/2 hp, 2 hp, 7-1/2 hp, 15 hp, 20 hp Power, 3 Pole, ON/OFF Action, Toggle Actuator, Screw Clamp Connection, NEMA 4 Enclosure, Die Cast Zinc Alloy, 4.38 in H x 3 in W x 4.56 in D

Manufacturer PN: 2510KW6B

UPC:  78590176416

Kendall Electric Inc PN: 3961511

Invoice Description:

2510KW6B SQD MANUAL SWITCH 600VAC


SPEC SHEET

▸ See All in AC Motor Starting Switches


How Can We Make This Page Better?

Square D™ 2510KW6B 3-Phase Type K Non-Reversing Single Unit Manual Switch, 600 VAC, 230 VDC, 30 A, 1 hp, 1-1/2 hp, 2 hp, 7-1/2 hp, 15 hp, 20 hp Power Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D Type K Motor starting switches provide compact manual On-Off control of single or three phase motor or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. NEMA 4 enclosure. S are zinc alloy for indoor and outdoor applications. Units are UL Listed, CSA Certified and CE Marked for global applications. Manual Switches. Designed for single or three phase AC motors. Suitable for use in three phase applications up to 20 HP. Provides easy manual “On-Off” control of small motors. For applications where overload protection is not required or is provided separately. Intended for industrial, commercial and residential applications. Can be easily installed. UL, CSA and CE approvals. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.
Square D™ Manual Switch, 3-Phase Type K Non-Reversing Single Unit, 600 VAC, 230 VDC, 30 A, 1 hp, 1-1/2 hp, 2 hp, 7-1/2 hp, 15 hp, 20 hp Power, 3 Pole, ON/OFF Action, Toggle Actuator, Screw Clamp Connection, NEMA 4 Enclosure, Die Cast Zinc Alloy, 4.38 in H x 3 in W x 4.56 in D

Specifications

 Actuator Toggle
 Amperage Rating 30 A
 Application Small Machine Tools, Pumps, Fans, Conveyors, Many Other Types of Electrical Machinery, Non-motor Loads such as Resistance Heaters, Simple Machine Control, HVAC, Self-Protected Motors, Industrial and Commercial Applications
 Brand Name Square D
 Connection Screw Clamp
 Dimensions 4.38 in H x 3 in W x 4.56 in D
 Enclosure NEMA 4
 Manufacturer Part Number 2510KW6B
 Material Die Cast Zinc Alloy
 Number of Poles 3
 PART NUMBER KEYWORDS 2510KW6B ; 8161321 ; 785901764168 ; 78590176416 ; 00785901764168 ; 0785901764168
 Power Rating 1 hp, 1-1/2 hp, 2 hp, 7-1/2 hp, 15 hp, 20 hp
 Standards/Approvals REACH Compliant|CE Certified|CSA File No. LR25490 Class 3211 05|UL File No. E42243 CCN NLRV|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Type 3-Phase Type K Non-Reversing Single Unit
 Voltage Rating 600 V AC/230 V DC

Features

▪ Two switches are used, one to connect the motor for forward rotation and one for reverse
▪ Two switches are employed to give ON-OFF control in each speed
▪ 2 hp at 115 VAC, 7-1/2 hp at 230 VAC, 15 hp at 460 VAC, 20 hp at 575 VAC, 1 hp at 90 VDC, 2 hp at 115 VDC, 1-1/2 hp at 230 VDC
▪ 30 A at 600 VAC, 30 A at 24 VDC
▪ Without indicator
