Schneider Electric
  • 2510KW1 SQD MANUAL SWITCH 600VAC
  • 2510KW1 SQD MANUAL SWITCH 600VAC
  • 2510KW1 SQD MANUAL SWITCH 600VAC
  • 2510KW1 SQD MANUAL SWITCH 600VAC
  • 2510KW1 SQD MANUAL SWITCH 600VAC

Description: Square D™ Manual Switch, Type K, Series: 2510K, 600 V AC/230 V DC, 30 A, 3 hp, 1-1/2 hp Motor, 2 Pole, Manual Reset, 1 ph, Screw Clamp Connection, Non-Reversing Action, Toggle Control, NEMA 4 Enclosure, Die Cast Zinc Alloy, 3 in W x 4.25 in D x 4.38 in H Dimensions

Manufacturer PN: 2510KW1

UPC:  78590155471

Kendall Electric Inc PN: 3998485

Invoice Description:

2510KW1 SQD MANUAL SWITCH 600VAC


SPEC SHEET

How Can We Make This Page Better?

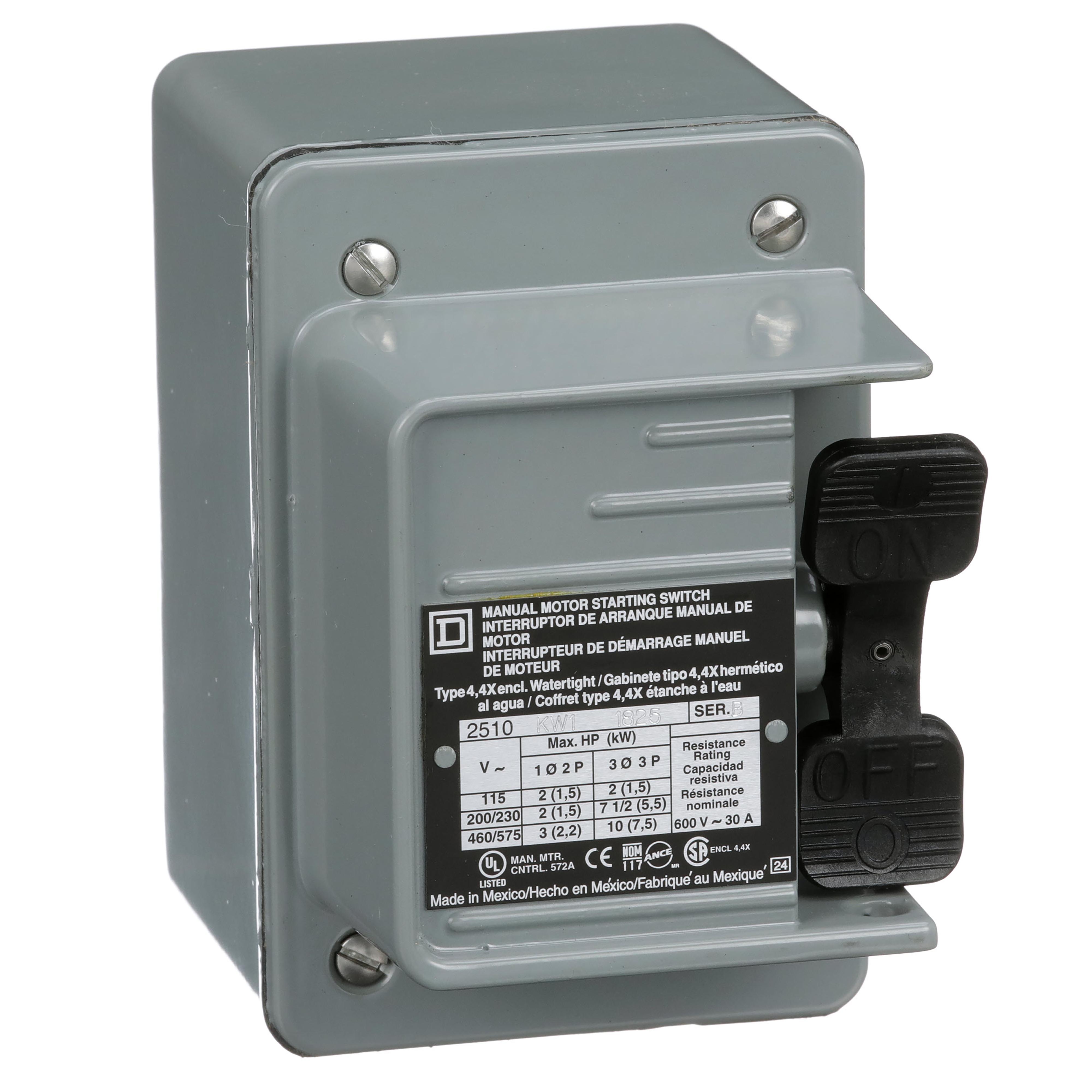

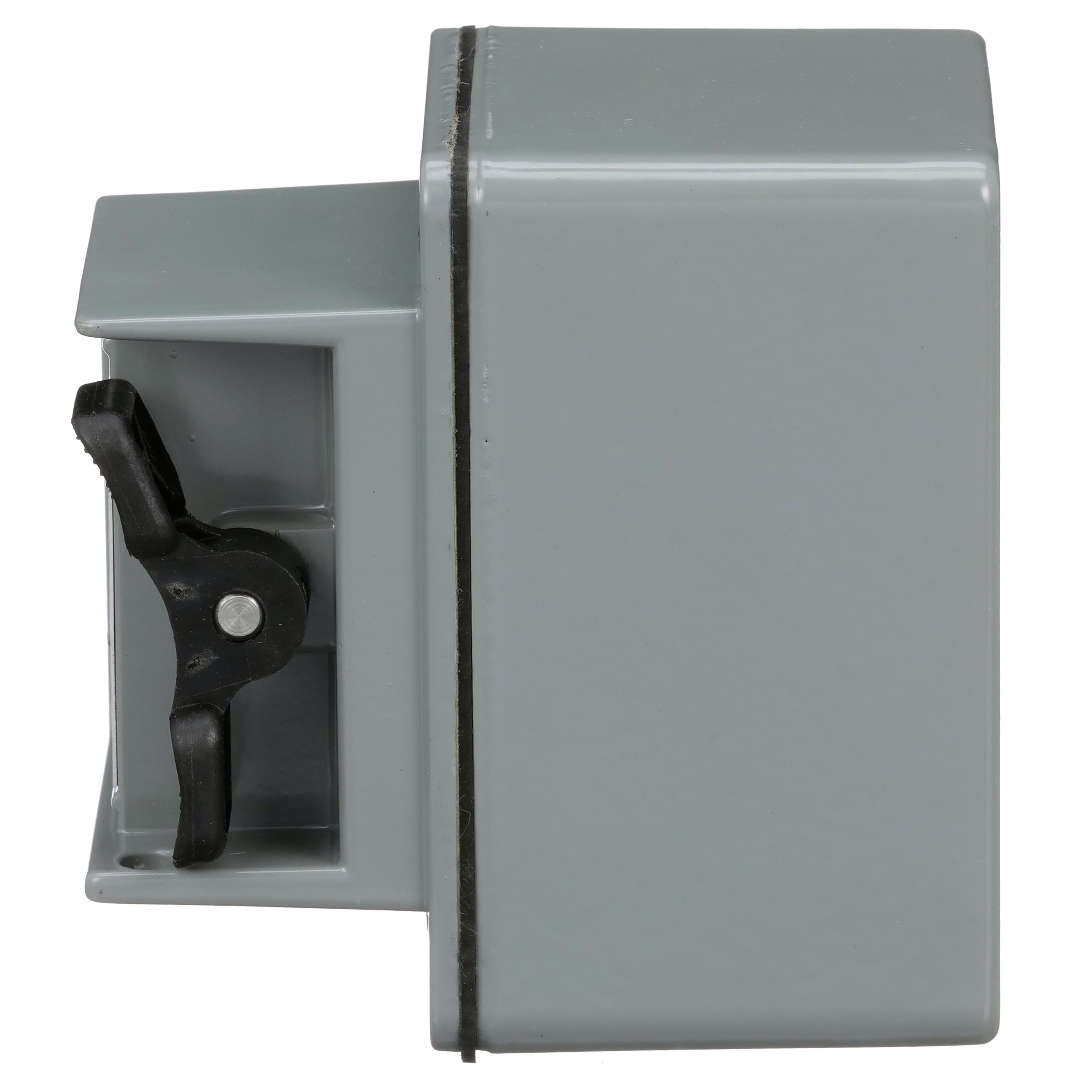

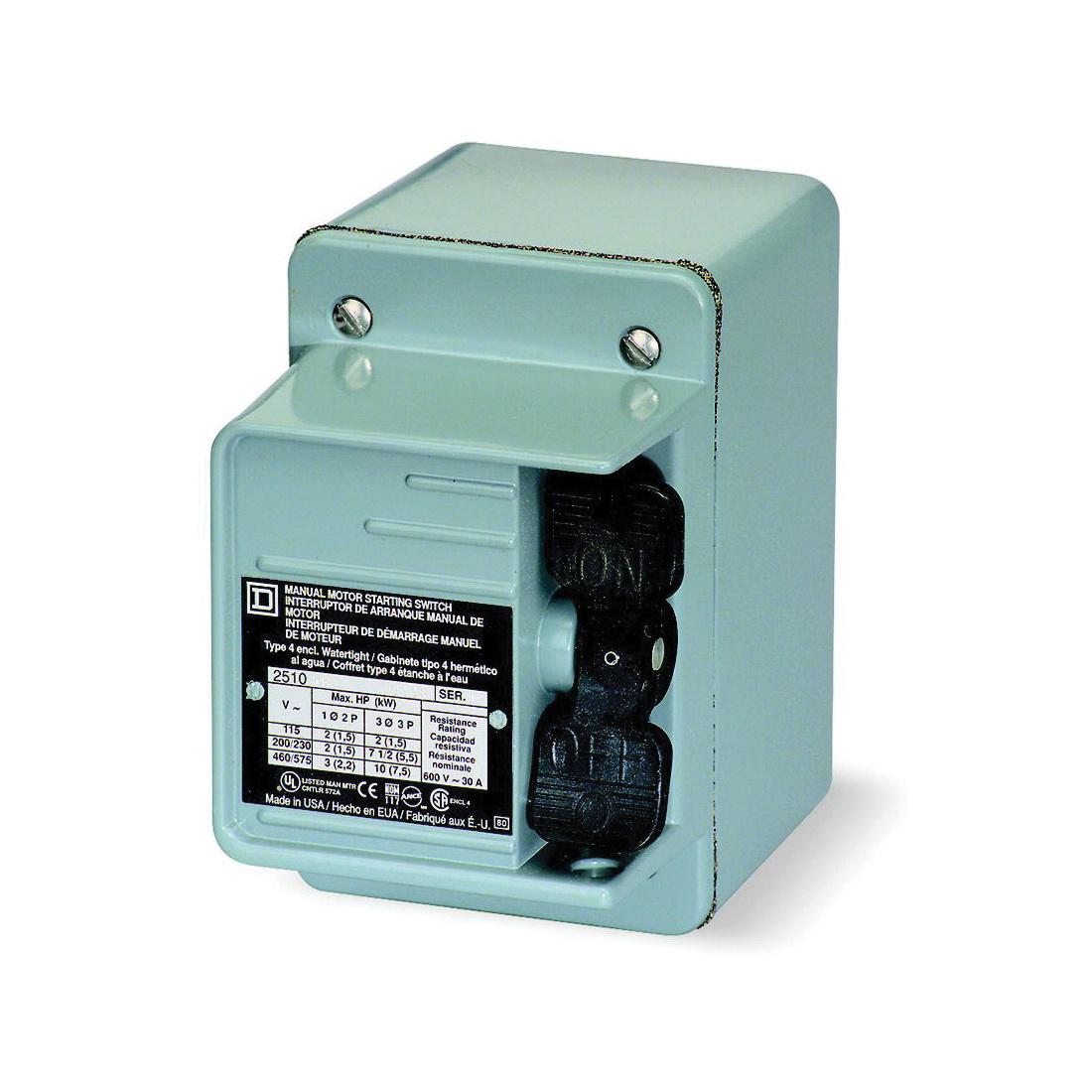

Square D™ 2510KW1 Type K Manual Switch, Non-Reversing Action, 2 Poles, NEMA 4 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 20A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This device is 4.38 inches tall, 3.00 inches wide and 4.25 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.
Square D™ Manual Switch, Type K, Series: 2510K, 600 V AC/230 V DC, 30 A, 3 hp, 1-1/2 hp Motor, 2 Pole, Manual Reset, 1 ph, Screw Clamp Connection, Non-Reversing Action, Toggle Control, NEMA 4 Enclosure, Die Cast Zinc Alloy, 3 in W x 4.25 in D x 4.38 in H Dimensions

Specifications

 Amperage Rating 30 A
 Application Oiltight and Dusttight Environments
 Brand Name Square D
 Connection Type Screw Clamp
 Control Type Toggle
 Dimensions 3 in W x 4.25 in D x 4.38 in H
 Enclosure NEMA 4
 Manufacturer Part Number 2510KW1
 Material Die Cast Zinc Alloy
 Motor Power 3 hp, 1-1/2 hp
 Number of Poles 2
 PART NUMBER KEYWORDS 2510KW1 ; 8089775 ; 785901554714 ; 78590155471 ; 00785901554714 ; 0785901554714
 Phase 1
 Reset Type Manual
 Series 2510K
 Standards/Approvals ECCN EAR99|UL File No. E42243 CCN NLRV Certified|CSA File No. LR25490 Class 3211 05|CE Certified|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type Type K
 Voltage Rating 600 V AC/230 V DC

Features

▪ This two pole, 30 Aswitch is without a pilot light indicator
▪ This Type K Manual Switch is an economical on/off solution
▪ Simple design, small size and easy to install
