Schneider Electric
  • 2510KG6 SQD MANUAL SWITCH 600VAC
  • 2510KG6 SQD MANUAL SWITCH 600VAC

Description: Square D™ Switch, Type K Non-Reversing, 600 V AC/230 V DC, 30 A, 20 hp at 575 VAC Motor, 3 Pole, Manual Reset, 3 ph, Screw Clamp, Toggle Control, NEMA 1, 2.44 in W x 2.75 in D x 4.25 in H

Manufacturer PN: 2510KG6

UPC:  78590119271

Kendall Electric Inc PN: 3959886

Invoice Description:

2510KG6 SQD MANUAL SWITCH 600VAC


SPEC SHEET

How Can We Make This Page Better?

Square D™ 2510KG6 Type K Non-Reversing Switch, 3 Poles, NEMA 1 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 15 HP at 460VAC, 20 HP at 600VAC three phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This NEMA 1 general purpose enclosure is a surface mounting enclosure. The enclosure has has a 0.5 and 0.75 knockout on the top and bottom. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. This device is UL Listed and CSA certified.
Square D™ Switch, Type K Non-Reversing, 600 V AC/230 V DC, 30 A, 20 hp at 575 VAC Motor, 3 Pole, Manual Reset, 3 ph, Screw Clamp, Toggle Control, NEMA 1, 2.44 in W x 2.75 in D x 4.25 in H

Specifications

 Amperage Rating 30 A
 Application Provides manual on/off control of 1 or 3-phase ac motors where overload protection is not required or provided separately
 Brand Name Square D
 Connection Type Screw Clamp
 Control Type Toggle

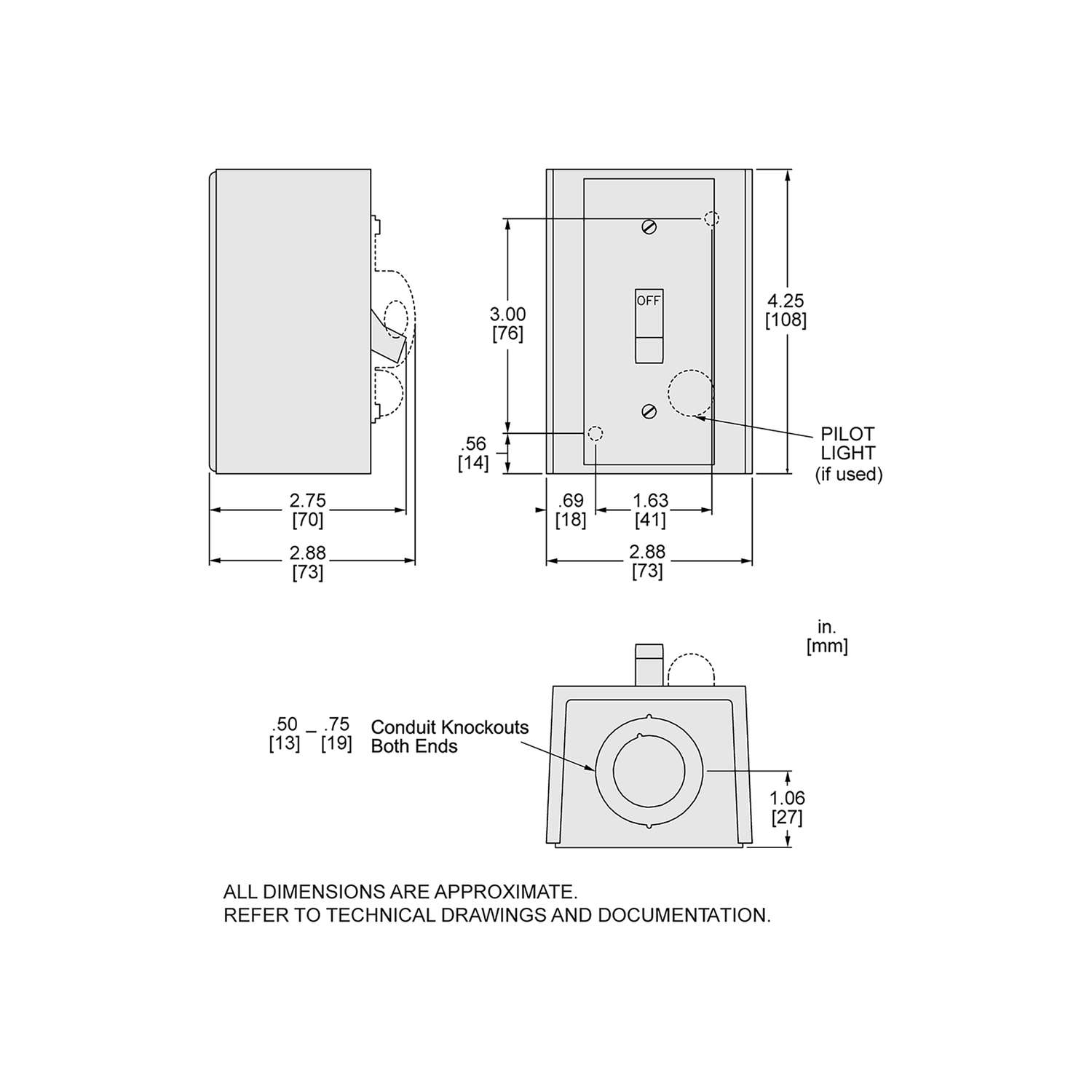

 Dimensions 2.44 in W x 2.75 in D x 4.25 in H
 Enclosure NEMA 1
 Manufacturer Part Number 2510KG6
 Motor Power 20 hp at 575 VAC
 Number of Poles 3
 PART NUMBER KEYWORDS 2510KG6 ; 8074341 ; 785901192718 ; 78590119271 ; 00785901192718 ; 0785901192718
 Phase 3
 Reset Type Manual
 Standards/Approvals BAA Compliant|CE Certified|CSA File #LR25490 Class 3211-05|UL File E42243 CCN NLRV|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
 Type Type K Non-Reversing
 Voltage Rating 600 V AC/230 V DC

Features

▪ This three pole, 30 Aswitch is without a pilot light indicator
▪ This NEMA 1 general purpose enclosure is a surface mounting enclosure
▪ This Type K Manual Switch is an economical on/off solution
▪ Simple design, small size and easy to install
