Hubbell
243 RAC CLBOX 4SQ X BOX-LOC BRKT

Mouse over image to zoom, click to enlarge

  • 243 RAC CLBOX 4SQ X BOX-LOC BRKT
  • 243 RAC CLBOX 4SQ X BOX-LOC BRKT
  • 243 RAC CLBOX 4SQ X BOX-LOC BRKT

Description: RACO®, 243, Square Box, 8 Knockouts, 1/2 in Knockout, Squared Shape, Flush Mounting, 30.3 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D Dimensions

Manufacturer PN: 243

UPC:  05016900243

Kendall Electric Inc PN: 2056157

Invoice Description:

243 RAC CLBOX 4SQ X BOX-LOC BRKT


SPEC SHEET

▸ See All in Square Boxes


How Can We Make This Page Better?

RACO® 243 Square Box, Steel, 30.3 cu-in Capacity, (8) Knockouts, 4 in H x 4 in W x 2-1/8 in D

Log In for Pricing and Availability




Description

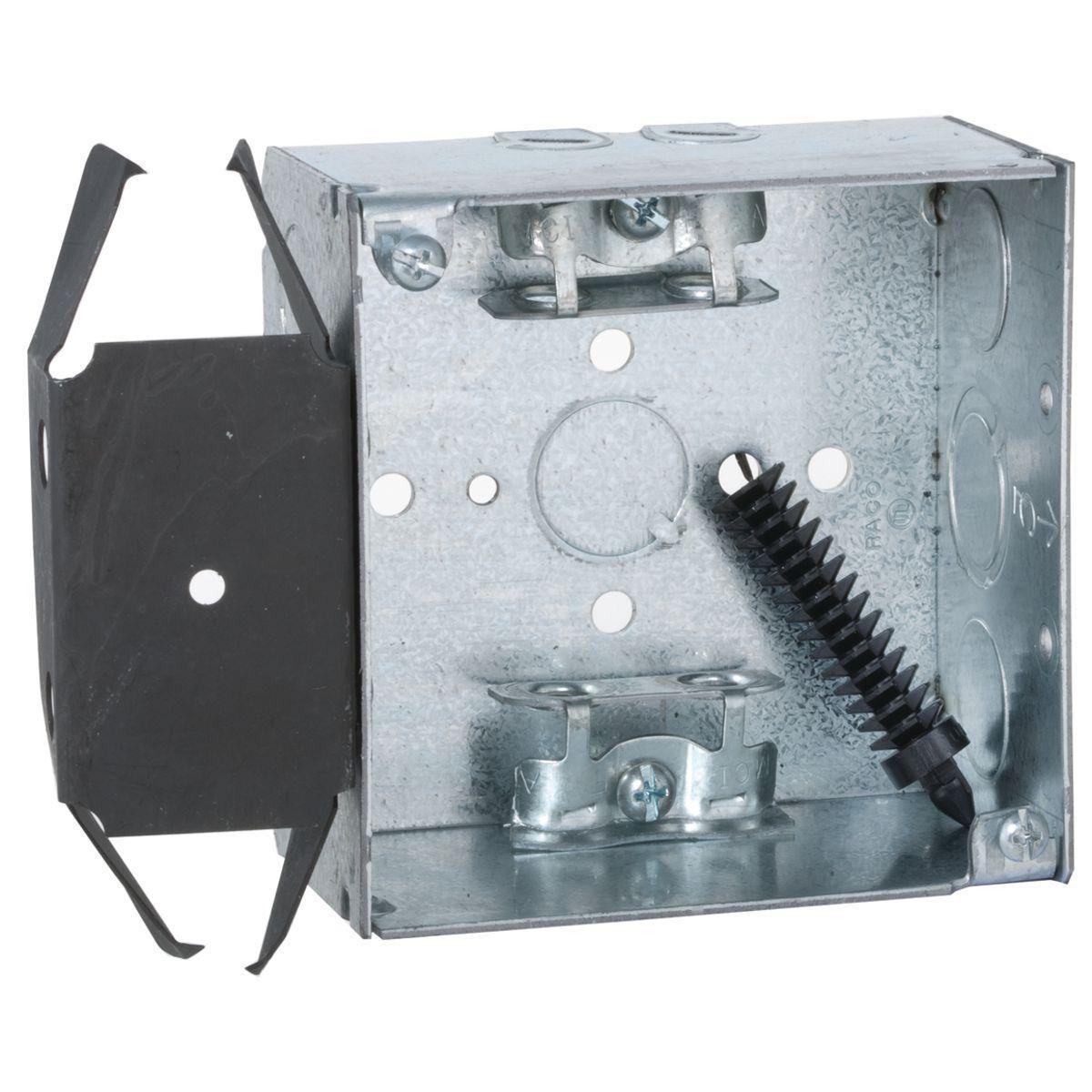

4 in. Square Box, Welded, 2-1/8 in. Deep with AC/MC/Flex Clamps, Three 1/2 in. KO's and One TKO, BOX-LOC®, MS Bracket, Flush
RACO®, 243, Square Box, 8 Knockouts, 1/2 in Knockout, Squared Shape, Flush Mounting, 30.3 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D Dimensions

Specifications

 Application Electrical, Lighting Fixtures, Switches or Receptacles Applications
 Brand Name RACO®
 Color Silver
 Dimensions 4 in H x 4 in W x 2-1/8 in D
 Finish Pre-Galvanized
 Includes BOX-LOC Bracket, Armored Cable/Metal Clad/Flex Clamp and FarSide Support
 Knockout Size 1/2 in
 Manufacturer Part Number 243
 Material Steel
 Mounting Type Flush
 Number of Knockouts 8
 PART NUMBER KEYWORDS 243 ; 8688551 ; 050169002438 ; 50169002438 ; 05016900243 ; 00050169002438
 Shape Squared
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|UL File No. E195978

Features

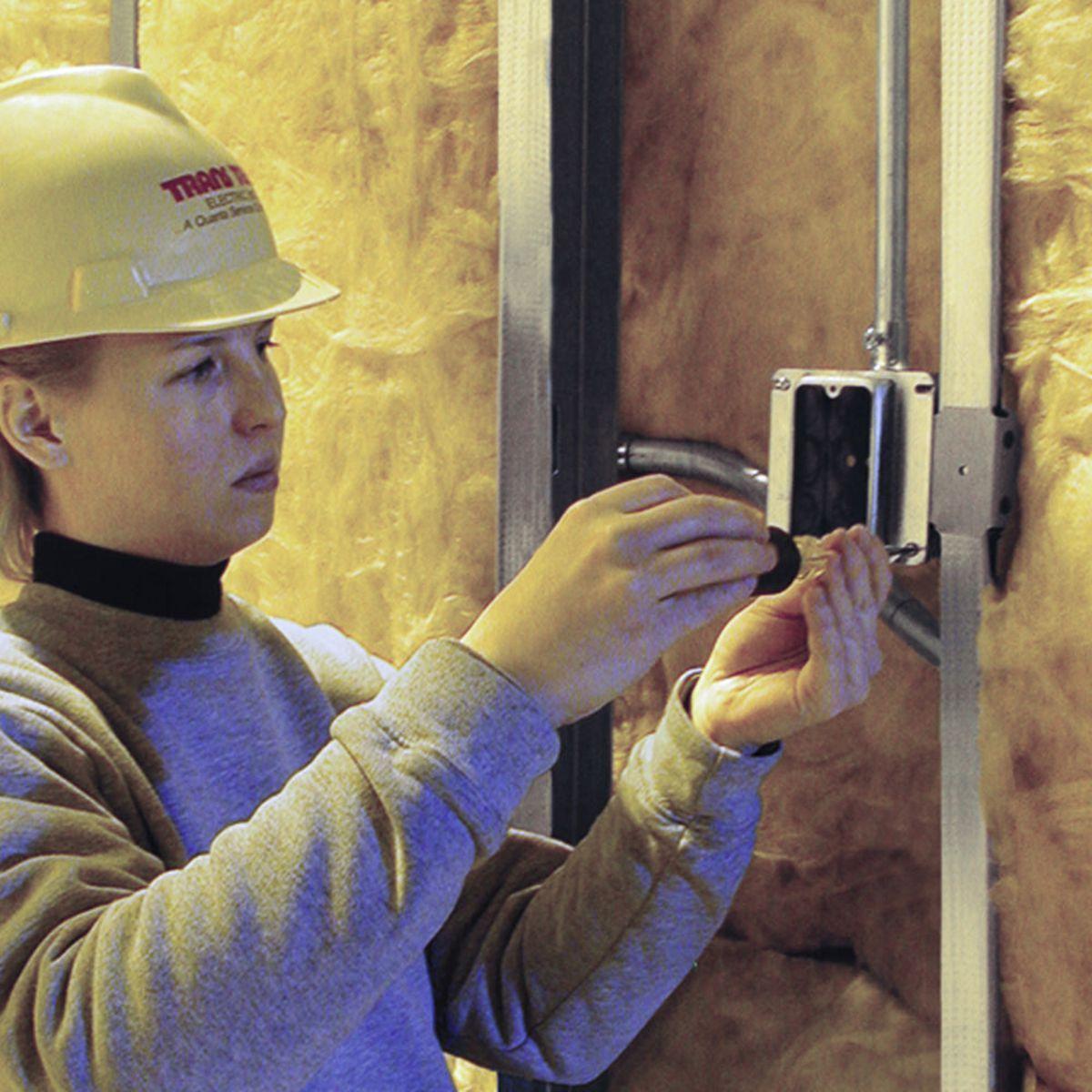

▪ Welded steel construction with MS BOX-LOC bracket which allows for positioning on either side of stud
▪ BOX-LOC Bracket is a snap to install
▪ Slots in the bracket engage the lip of the stud
▪ BX clamps provided for steel and alum armored cable, MCI cable, MCI-A cable, and flexible conduit
▪ TKO Knockouts allow for design and installation flexibility
▪ Supplied with three 1/2 in and one 1/2-3/4 in TKO knockouts
▪ Combination Phillips/slotted screw heads
▪ Acceptable for use in 2 hr fire rated walls
