Leviton

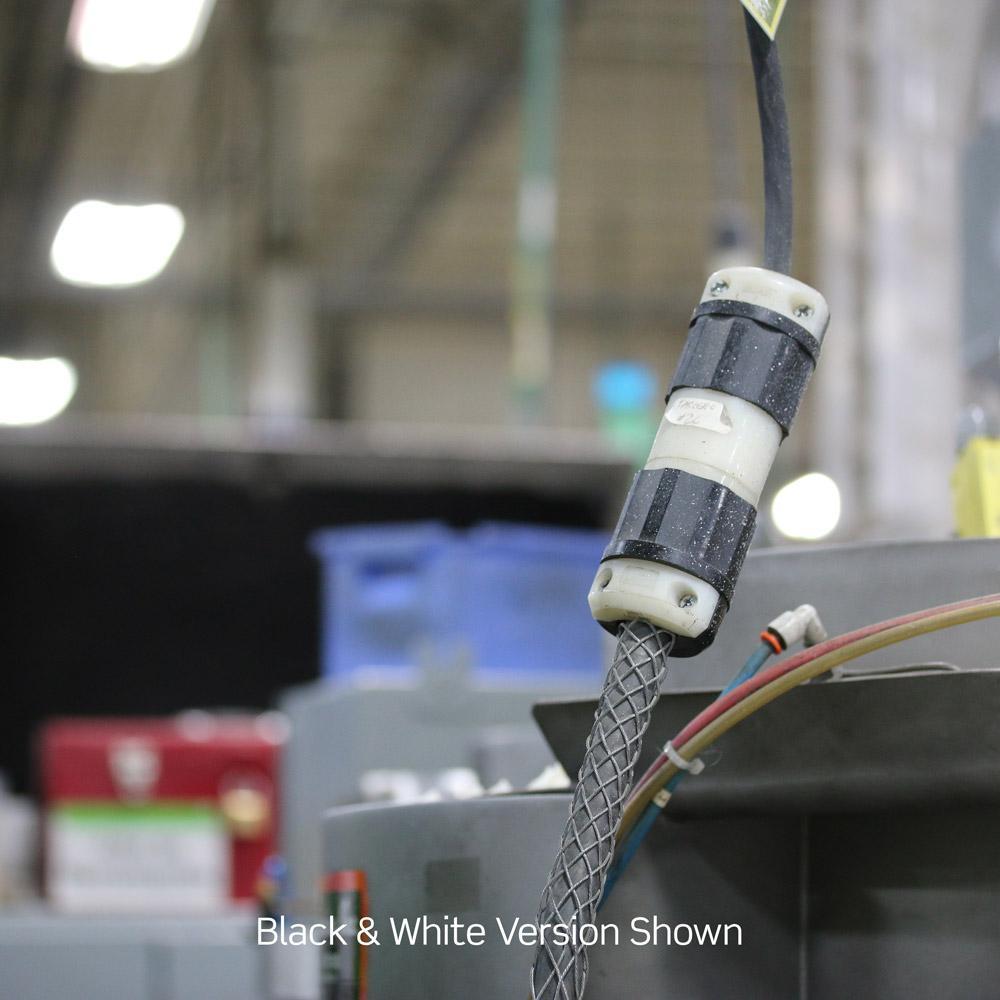

2413 LEV 20A/125-250V 3P4W LOCKING CONN L14-20R

Mouse over image to zoom, click to enlarge

  • 2413 LEV 20A/125-250V 3P4W LOCKING CONN L14-20R
  • 2413 LEV 20A/125-250V 3P4W LOCKING CONN L14-20R
  • 2413 LEV 20A/125-250V 3P4W LOCKING CONN L14-20R

Description: Leviton®, 2413, Locking Connector, 3-Phase Grounding Cable Mount, 125/250 V AC, 20 A, 2 hp, 3 Pole, 4 Wires, NEMA L14-20R NEMA Rating, Industrial Grade, 0.595 to 0.895 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 28 in Dia x 3.53 in H Dimensions

Manufacturer PN: 2413

UPC:  07847780829

Kendall Electric Inc PN: 2178948

Invoice Description:

2413 LEV 20A/125-250V 3P4W LOCKING CONN L14-20R


SPEC SHEET

▸ See All in Locking Connectors


How Can We Make This Page Better?

Leviton® 2413 3-Phase Grounding Cable Mount Locking Connector, 125/250 V AC, 20 A, 3 Poles, 4 Wires, Black/White

Log In for Pricing and Availability




Description

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton®, 2413, Locking Connector, 3-Phase Grounding Cable Mount, 125/250 V AC, 20 A, 2 hp, 3 Pole, 4 Wires, NEMA L14-20R NEMA Rating, Industrial Grade, 0.595 to 0.895 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 28 in Dia x 3.53 in H Dimensions

Specifications

 Amperage Rating 20 A
 Application Industrial Applications
 Brand Name Leviton®
 Color Black/White
 Cord Diameter 0.595 to 0.895 in
 Dimensions 28 in Dia x 3.53 in H
 Grade Industrial
 Horsepower 2 hp
 Manufacturer Part Number 2413
 Material Nylon
 NEMA Rating NEMA L14-20R
 Number of Poles 3
 Number of Wires 4
 PART NUMBER KEYWORDS 2413
 Standards/Approvals ANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
 Temperature Rating -40 to 60 deg C
 Terminal Type Screw
 Type 3-Phase Grounding Cable Mount
 Video Links
 Voltage Rating 125/250 V AC

Features

▪ 2 hp (L-N), 2 hp (L-L) AC power rating
