Hubbell
232H RACO 4SQBXW/BKT SPT PT 2-1/8DP 1/2-3/4TKO

Mouse over image to zoom, click to enlarge

  • 232H RACO 4SQBXW/BKT SPT PT 2-1/8DP 1/2-3/4TKO
  • 232H RACO 4SQBXW/BKT SPT PT 2-1/8DP 1/2-3/4TKO
  • 232H RACO 4SQBXW/BKT SPT PT 2-1/8DP 1/2-3/4TKO

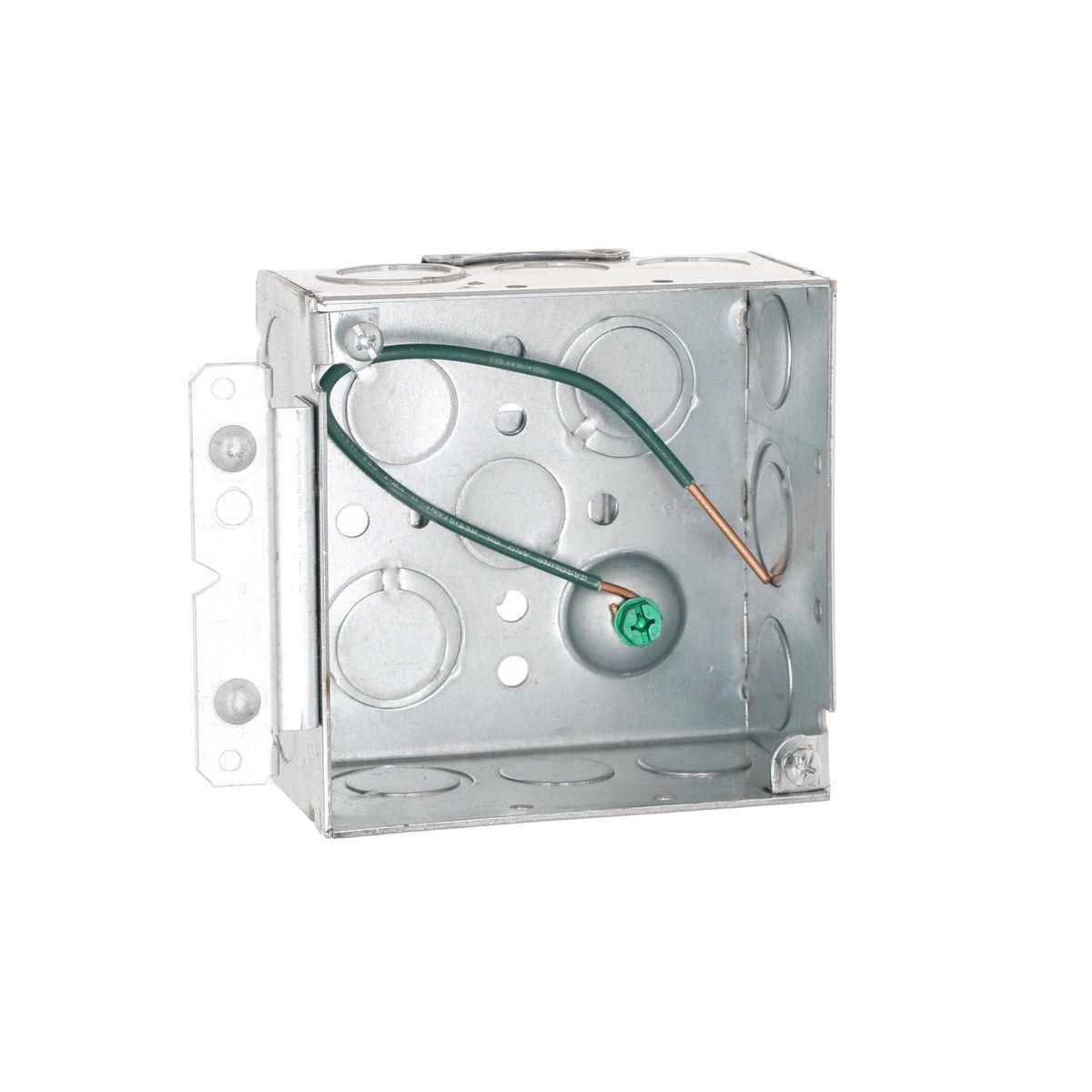

Description: RACO®, 232H, Square Box, 16 Knockouts, 1/2 in Knockout, Squared Shape, Flush Mounting, 30.3 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D Dimensions

Manufacturer PN: 232H

UPC:  05016950003

Kendall Electric Inc PN: 3449396

Invoice Description:

232H RACO 4SQBXW/BKT SPT PT 2-1/8DP 1/2-3/4TKO


SPEC SHEET

▸ See All in Square Boxes


How Can We Make This Page Better?

RACO® 232H Square Box, Steel, 30.3 cu-in Capacity, (16) Knockouts, 4 in H x 4 in W x 2-1/8 in D

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

4 in. Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in. KO's and Six TKO's, Raised Ground, 8 in. #12 Solid Copper Pigtail, UBS, HM Bracket
RACO®, 232H, Square Box, 16 Knockouts, 1/2 in Knockout, Squared Shape, Flush Mounting, 30.3 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D Dimensions

Specifications

 Application Electrical, Lighting Fixtures, Switches or Receptacles Applications
 Brand Name RACO®
 Color Silver
 Dimensions 4 in H x 4 in W x 2-1/8 in D
 Finish Pre-Galvanized
 Includes HM Bracket and 12 AWG 8 in Solid Copper Pigtail
 Knockout Size 1/2 in
 Manufacturer Part Number 232H
 Material Steel
 Mounting Type Flush
 Number of Knockouts 16
 Shape Squared
 Standards/Approvals UL File No. E195978
 Video Links

Features

▪ UBS integrated support provides bracing on back of box for wall cavities between 2-1/2 in - 6 in thickness, H/M
▪ Combination screw heads allow quick installation
▪ Welded construction
▪ Acceptable in 2 hr fire rated walls
