ABB

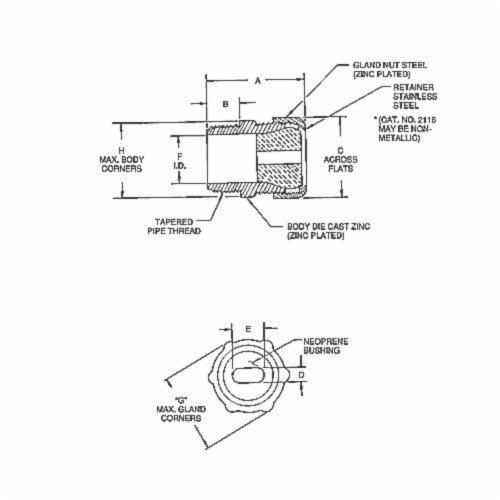

2239 T&B 3/4IN SERV ENTR CONN .2405X.685 ZNC

Mouse over image to zoom, click to enlarge

  • 2239 T&B 3/4IN SERV ENTR CONN .2405X.685 ZNC
  • 2239 T&B 3/4IN SERV ENTR CONN .2405X.685 ZNC
  • 2239 T&B 3/4IN SERV ENTR CONN .2405X.685 ZNC

Description: T&B® Service Entrance Cable Connector, Underground Feeder, 3/4 in Knockout, 0.24 x 0.685 in Clamp Opening, For Use With: Underground Liquidtight Feeder Cable Fitting, 3/4 in Hub, 9/16 in Thread, Die Cast Zinc, Metallic, 1-9/16 in L x 1-7/32 in W

Manufacturer PN: 2239

UPC:  78621002239

Kendall Electric Inc PN: 2527011

Invoice Description:

2239 T&B 3/4IN SERV ENTR CONN .2405X.685 ZNC


SPEC SHEET

▸ See All in Service Entrance Cable Connectors


How Can We Make This Page Better?

T&B® 2239 Underground Feeder Service Entrance Cable Connector, 3/4 in Knockout, 0.24 x 0.685 in Clamp Opening, Die Cast Zinc

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

T&B® Service Entrance Cable Connector, Underground Feeder, 3/4 in Knockout, 0.24 x 0.685 in Clamp Opening, For Use With: Underground Liquidtight Feeder Cable Fitting, 3/4 in Hub, 9/16 in Thread, Die Cast Zinc, Metallic, 1-9/16 in L x 1-7/32 in W

Specifications

 Application For connecting service entrance cables to a meter box or an enclosure
 Brand Name T&B®
 Clamp Opening 0.24 x 0.685 in
 Dimensions 1-9/16 in L x 1-7/32 in W
 Finish Metallic
 Knockout Size 3/4 in
 Manufacturer Part Number 2239
 Material Die Cast Zinc
 Specifications 3/4 in Hub, 9/16 in Thread
 Standards/Approvals CSA Certified|UL File No. E17583
 Suitable For Use With Underground Liquidtight Feeder Cable Fitting
 Type Underground Feeder

Features

▪ Grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
▪ Oil and water resistant neoprene bushing is especially designed for sealing around underground feeder cable
▪ Stainless steel retaining ring provides a bearing surface for the gland nut and eliminates cable twist
▪ Ribbed gland nut is strong and easily tightened with a wrench to make a connection of high strength
▪ 0.06 in min to 0.24 in max and 0.5 in min to 0.685 in max opening
▪ 1-3/8 in maximum gland corners
▪ 1-3/8 in maximum body corners

Resources

 Catalog
 Catalog Page
 Product Data Sheet
