Milwaukee Tool
2236-20 MILWAUKE HVAC/R CLAMP METER 04524217376

Mouse over image to zoom, click to enlarge

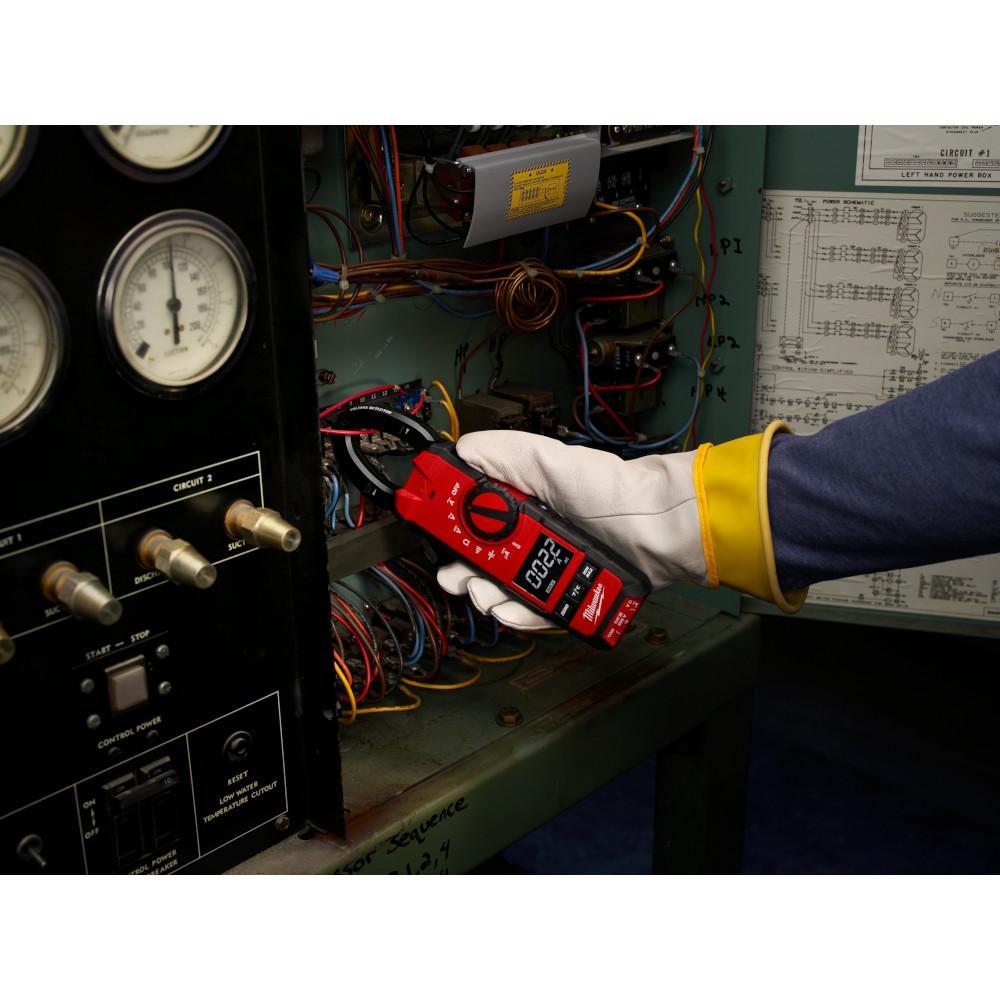

  • 2236-20 MILWAUKE HVAC/R CLAMP METER 04524217376

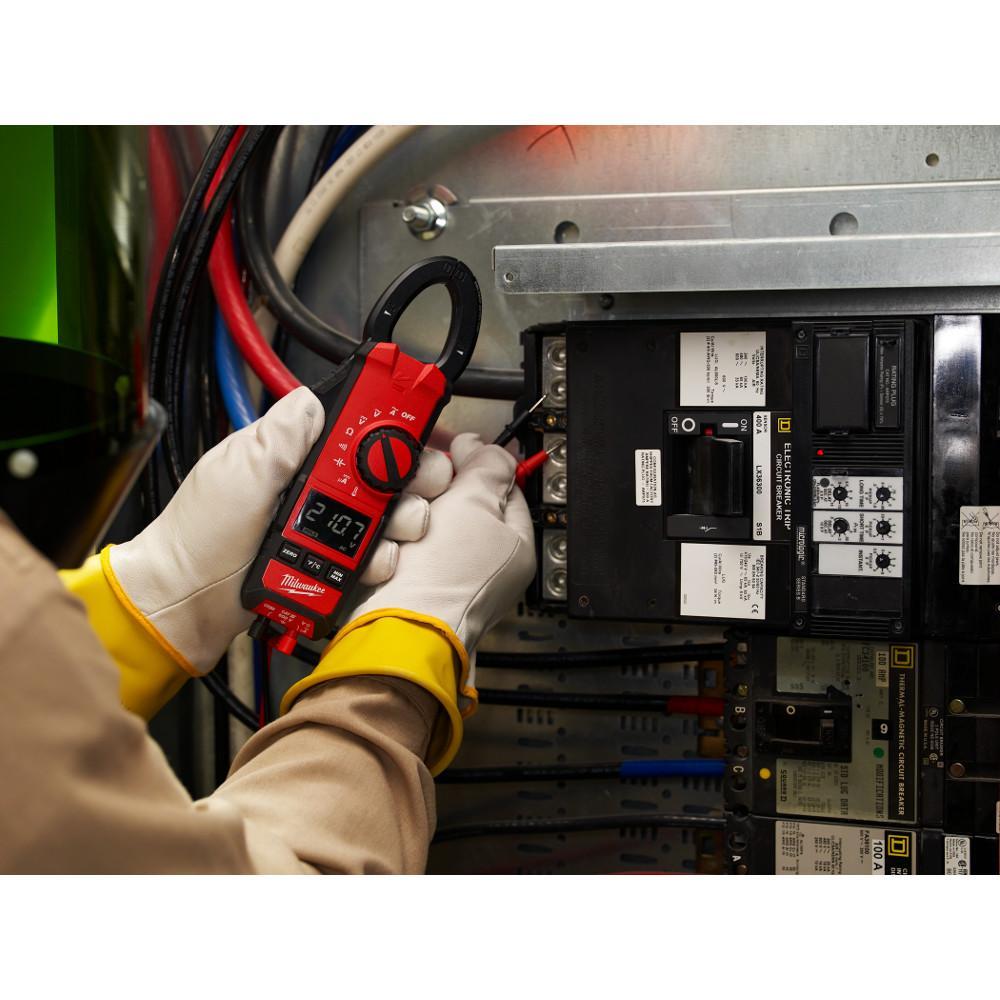

  • 2236-20 MILWAUKE HVAC/R CLAMP METER 04524217376
  • 2236-20 MILWAUKE HVAC/R CLAMP METER 04524217376

Description: Milwaukee® Clamp Meter, 600 A, 600 V AC/DC Electrical Rating, 6 kOhm Resistance, 1 Hz to 10 kHz Frequency, 1.3 in Jaw, High Contrast White on Black LCD Display, +/-2% +/-5 Digits AC Current Accuracy, +/-1.5% RDG +/-4 RDG AC, +/-1.0% RDG +/-3 RDG DC Voltage Accuracy, Safety Rating: CAT III 600 VAC, AA Alkaline Battery Power Source, -40 to 752 deg F Operating, 9-1/2 in L Dimensions

Manufacturer PN: 2236-20

UPC:  04524217376

Kendall Electric Inc PN: 2710220

Invoice Description:

2236-20 MILWAUKE HVAC/R CLAMP METER 04524217376


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

Milwaukee® 2236-20 Clamp Meter, 600 A, 600 V AC/DC, 6 kOhm, 1 Hz to 10 kHz, 1.3 in Jaw, High Contrast White on Black LCD Display

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The MILWAUKEE® 600A Clamp Meter for HVAC/R is a TRMS clamp meter for professional residential, commercial, and industrial applications. Made with a high-contrast, white-on-black display, this meter provides the clearest readings. The clamp meter measures 600µa DC and offers contact temperature functionality with a range of -40F - 752F allowing for the most common HVAC/R applications. Additionally, the meter offers a wide voltage range of 600V AC/DC and current measurements up to 600A AC. The rugged over-molded grip allows for better grip and increased durability. The meter is rated to CATIII 600V and meets UL safety specifications required by electrical users. This meter is covered by Milwaukee's 5-Year Warranty.
Milwaukee® Clamp Meter, 600 A, 600 V AC/DC Electrical Rating, 6 kOhm Resistance, 1 Hz to 10 kHz Frequency, 1.3 in Jaw, High Contrast White on Black LCD Display, +/-2% +/-5 Digits AC Current Accuracy, +/-1.5% RDG +/-4 RDG AC, +/-1.0% RDG +/-3 RDG DC Voltage Accuracy, Safety Rating: CAT III 600 VAC, AA Alkaline Battery Power Source, -40 to 752 deg F Operating, 9-1/2 in L Dimensions

Specifications

 AC Current Accuracy +/-2% +/-5 Digits
 Application For HVAC/R applications
 Brand Name Milwaukee®
 Dimensions 9-1/2 in L
 Electrical Ratings 600 A, 600 V AC/DC
 Frequency Rating 1 Hz to 10 kHz
 Includes Dual Banana Thermocouple, Electrical Test Lead Set, (2) AA Batteries and Manual
 Jaw Capacity 1.3 in
 Manufacturer Part Number 2236-20
 Operating Temperature -40 to 752 deg F
 PART NUMBER KEYWORDS 2236-20 ; 223620 ; 10810995 ; 045242173761 ; 04524217376124
 Power Source AA Alkaline Battery
 Resistance 6 kOhm
 Voltage Accuracy +/-1.5% RDG +/-4 RDG AC, +/-1.0% RDG +/-3 RDG DC

Features

▪ 600 uA DC for Flame Rectification
▪ Built-In Voltage Detector and LED Work Light
▪ Measures up to 600 AAC, Large 1.30 jaw opening
▪ Rugged over-molding increases durability and user grip
▪ Thermocouple (dual banana) input for contact temperature measurement
▪ Thin Jaw Profile for easier wire measurement in panels or in bundles
