Hubbell

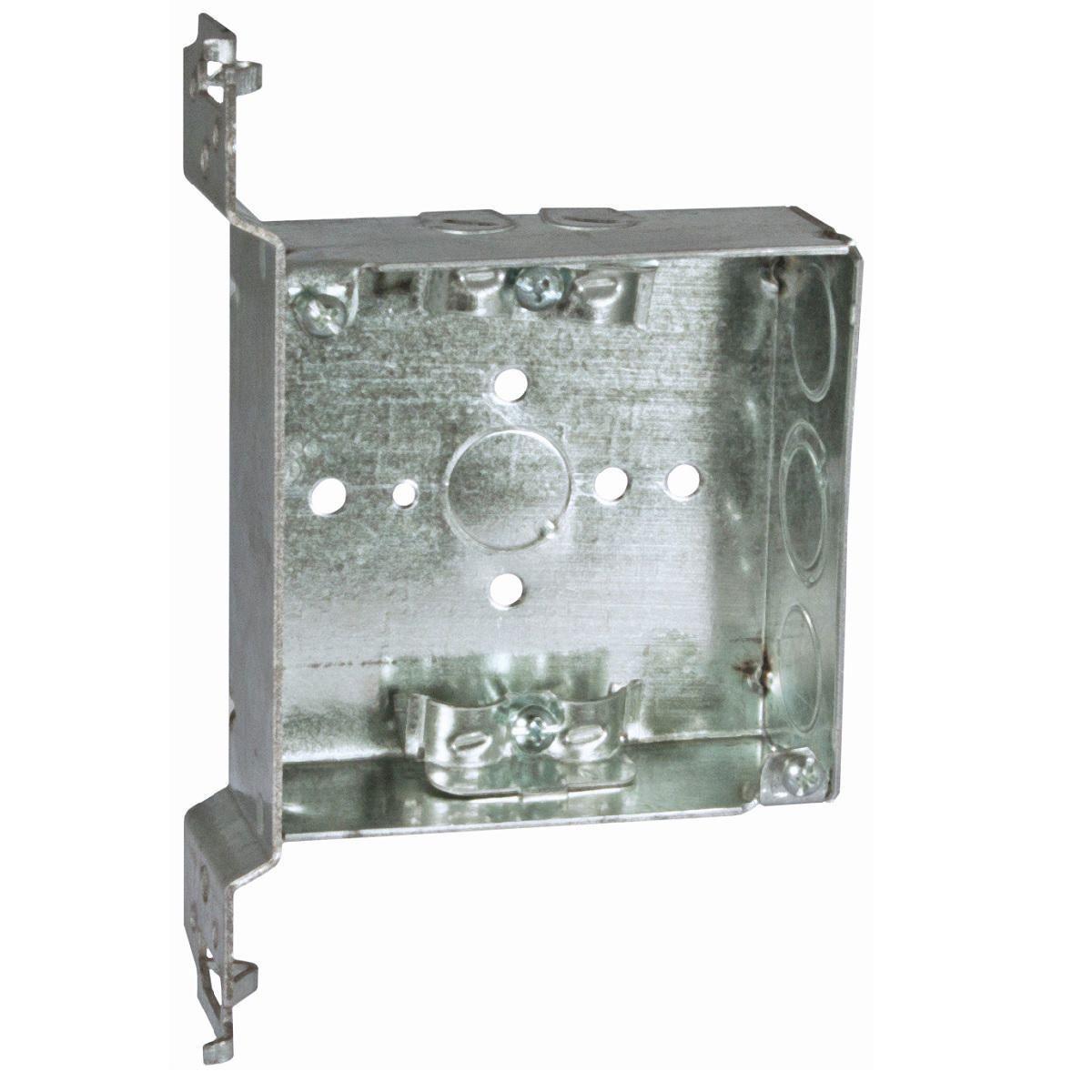

223 RACO 4SQ BOX 1-1/2 DEEP FS-BRKT NM-CLAMP

Mouse over image to zoom, click to enlarge

  • 223 RACO 4SQ BOX 1-1/2 DEEP FS-BRKT NM-CLAMP
  • 223 RACO 4SQ BOX 1-1/2 DEEP FS-BRKT NM-CLAMP
  • 223 RACO 4SQ BOX 1-1/2 DEEP FS-BRKT NM-CLAMP

Description: RACO®, 223, Square Box, 8 Knockouts, 1/2 in Knockout, Squared Shape, Flush Mounting, 21 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 1-1/2 in D Dimensions

Manufacturer PN: 223

UPC:  05016900223

Kendall Electric Inc PN: 3893308

Invoice Description:

223 RACO 4SQ BOX 1-1/2 DEEP FS-BRKT NM-CLAMP


SPEC SHEET

▸ See All in Square Boxes


How Can We Make This Page Better?

RACO® 223 Square Box, Steel, 21 cu-in Capacity, (8) Knockouts, 4 in H x 4 in W x 1-1/2 in D

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

RACO® is the United States' leading manufacturer of steel electrical boxes and covers. RACO® manufactures and/or sells steel and plastic boxes used at outlets, switch locations and junction points. RACO® also offers a broad line of metallic fittings, including rigid plastic conduit fittings, EMT (thin wall) fittings and liquid tight conduit fittings.
RACO®, 223, Square Box, 8 Knockouts, 1/2 in Knockout, Squared Shape, Flush Mounting, 21 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 1-1/2 in D Dimensions

Specifications

 Application Electrical, Lighting Fixtures, Switches or Receptacles Applications
 Brand Name RACO®
 Color Silver
 Dimensions 4 in H x 4 in W x 1-1/2 in D
 Finish Pre-Galvanized

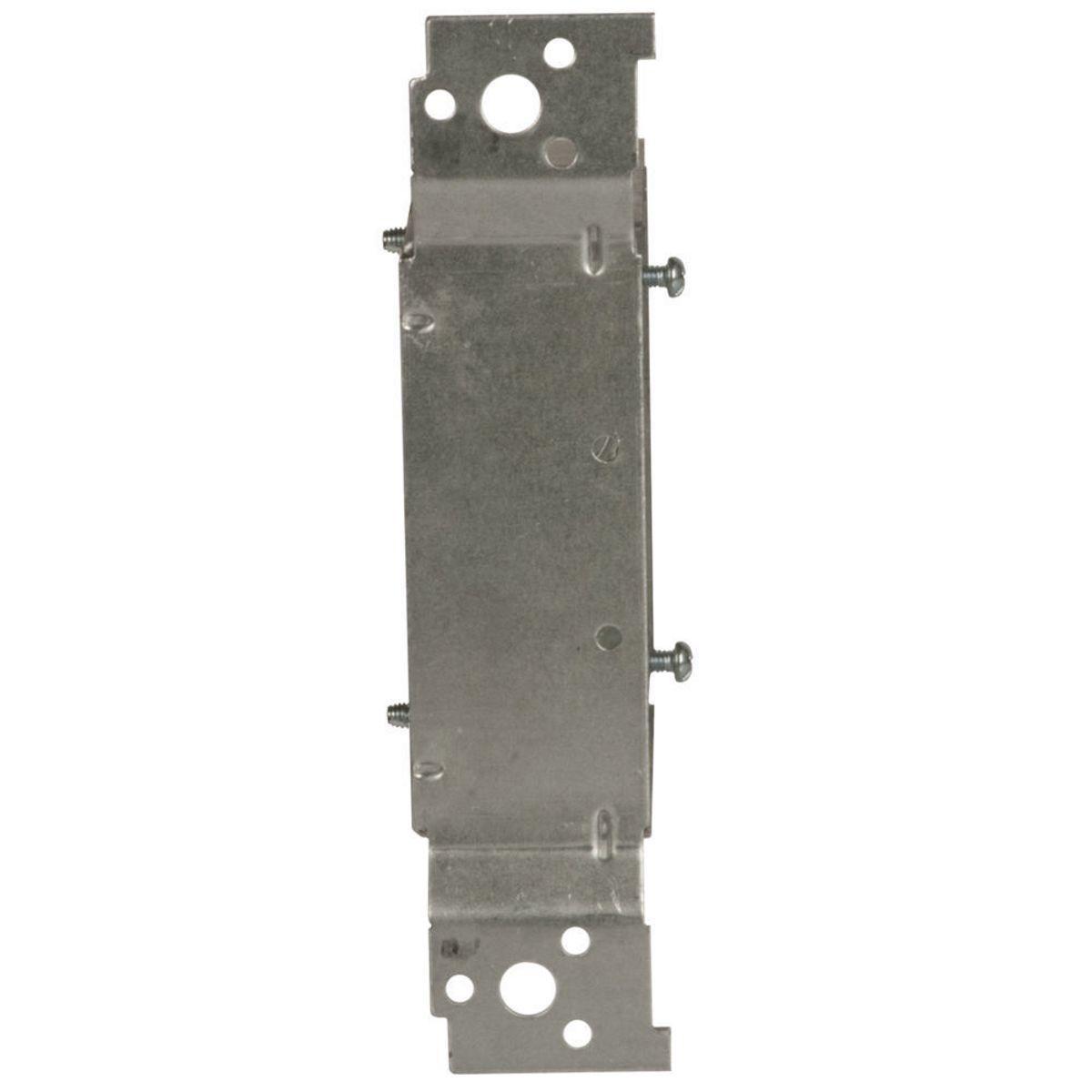

 Includes FM Bracket and Non-Metallic Sheathed Cable Clamp
 Knockout Size 1/2 in
 Manufacturer Part Number 223
 Material Steel
 Mounting Type Flush
 Number of Knockouts 8
 PART NUMBER KEYWORDS 223 ; 8688492 ; 050169002230 ; 50169002230 ; 05016900223 ; 00050169002230
 Shape Squared
 Standards/Approvals UL File No. E195978

Features

▪ TKO Knockouts allow for design and installation flexibility
▪ Supplied with three 1/2 in and one 1/2-3/4 in TKO knockouts
▪ Combination Phillips/slotted screw heads
▪ Acceptable for use in 2 hr fire rated walls
