3M

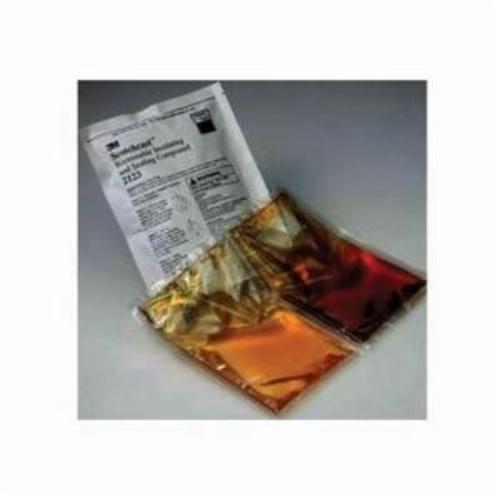

2123C 3M 7000031696 REENTERABLE ELECTRICAL INSULATING RESIN SIZE-C (12.3 OZ) 05112855120 min qty 10

Mouse over image to zoom, click to enlarge

  • 2123C 3M 7000031696 REENTERABLE ELECTRICAL INSULATING RESIN SIZE-C (12.3 OZ) 05112855120 min qty 10
  • 2123C 3M 7000031696 REENTERABLE ELECTRICAL INSULATING RESIN SIZE-C (12.3 OZ) 05112855120 min qty 10

Description: 3M™, 7000031696, Electrical Resin, Re-Enterable, Series: 2123, Size C/2-Part Pouch Container, 12.3 oz Container, Liquid Form, Composition: Part A: 60 to 75% Soybean Oil, 15 to 30% Butadiene-Maleic Anhydride Copolymer, Part B: 65 to 80% Hydrotreated Heavy Naphthenic Petroleum Distillate, 15 to 30% 1, 3-Butadiene, Homopolymer, Hydroxyterminated, 0 to 10% Methyldidecylamine, 24 hr at 70 deg F Curing, Amber/Clear/Transparent, Mild Hydrocarbon/Mild Aroma Odor/Scent, -20 to 90 deg C, Part A: 0.89/Part B: 0.94 Specific Gravity, >=300 deg F Part A, >=450 deg F Part B Flash Point

Manufacturer PN: 2123C

UPC:  05112855120

Kendall Electric Inc PN: 2301714

Invoice Description:

2123C 3M 7000031696 REENTERABLE ELECTRICAL INSULATING RESIN SIZE-C (12.3 OZ) 05112855120 min qty 10


SPEC SHEET

▸ See All in Resins & Compounds


How Can We Make This Page Better?

3M™ 7000031696 2123 Re-Enterable Electrical Resin, 12.3 oz Container Size C/2-Part Pouch Container, Amber/Clear/Transparent, Liquid Form, Specific Gravity: Part A: 0.89/Part B: 0.94

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

3M™ Scotchcast™ electrical insulating resin 2123 has good wetting and low viscosity properties. This flexible resin ensures curing at room temperature and acts as an insulating material for cable splices operating up to 1 kV. It flows easily, even at low temperatures, while filling the enclosure and minimizing voids. ASTM approved and rohs 2011/65/EU Compliant.
3M™, 7000031696, Electrical Resin, Re-Enterable, Series: 2123, Size C/2-Part Pouch Container, 12.3 oz Container, Liquid Form, Composition: Part A: 60 to 75% Soybean Oil, 15 to 30% Butadiene-Maleic Anhydride Copolymer, Part B: 65 to 80% Hydrotreated Heavy Naphthenic Petroleum Distillate, 15 to 30% 1, 3-Butadiene, Homopolymer, Hydroxyterminated, 0 to 10% Methyldidecylamine, 24 hr at 70 deg F Curing, Amber/Clear/Transparent, Mild Hydrocarbon/Mild Aroma Odor/Scent, -20 to 90 deg C, Part A: 0.89/Part B: 0.94 Specific Gravity, >=300 deg F Part A, >=450 deg F Part B Flash Point

Specifications

 Application For sealing, electrical insulation and mechanical protection applications
 Brand Name 3M™
 Color Amber/Clear/Transparent
 Curing Time 24 hr at 70 deg F
 Flash Point >=300 deg F Part A, >=450 deg F Part B
 Manufacturer Part Number 7000031696
 Odor Scent Mild Hydrocarbon/Mild Aroma
 Series 2123
 Specific Gravity Part A: 0.89/Part B: 0.94
 Standards/Approvals RoHS Compliant|ASTM Approved
 Temperature Rating -20 to 90 deg C
 Type Re-Enterable

Features

▪ Room temperature cure, low viscosity
▪ 2 years shelf life
▪ Has 62 min gel time at 73 deg f (23 deg c)
▪ Rated up to 1 kV
▪ Withstands a temperature range of 32 to 194 deg f (0 to 90 deg c)
▪ Elongates 300 percent longer than its original size for easy insulation or wrapping
▪ 0 shore a hardness
▪ 0.6/1 kV voltage rating
▪ A soft, two part polybutadiene resin encapsulant designed especially for reenterable splice protection
▪ 300% elongation
▪ 10.7 psi tensile strength
▪ 0.2% moisture absorption, 1:1 mixing ratio, pale yellow part a, amber part b
▪ 240 v/mil dielectric strength
▪ Available in two part closed mixing pouch for easy mixing and pouring
▪ Flexible, excellent multi-purpose moisture sealing resin
