3M

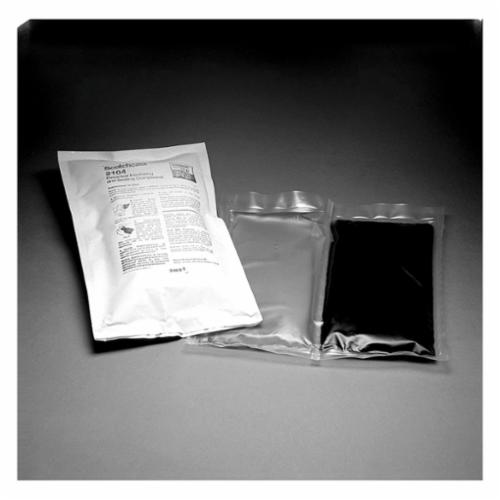

2104A* 3M INSULATING AND SEALING COMPOUND SIZE A (3.46 OZ) 05400731189

Mouse over image to zoom, click to enlarge

  • 2104A* 3M INSULATING AND SEALING COMPOUND SIZE A (3.46 OZ) 05400731189
  • 2104A* 3M INSULATING AND SEALING COMPOUND SIZE A (3.46 OZ) 05400731189

Description: 3M™, 7100003209, Compound, Series: 2104, Size A/2-Part Pouch Container, 3.46 oz Container, Liquid Form, Composition: Part A: 35 to 50% Phthalic Acid, Di-C11-14-Branched Alkyl, Esters, C13-Rich, 15 to 35% Polymethylene Polyphenylene Isocyanate, Part B: 55 to 75% Polypropylene Glycol Glycerol Triether, 5 to 20% n, n-Di 2-HydroxypropylAniLine, 1 hr at 70 deg F, 20 hr at 20 deg F Curing, Green, Isocyanate Odor/Scent, 0 to 130 deg C, Part A: 1.04/Part B: 1 Specific Gravity, 230 deg F Part A, >=230 deg F Part B Flash Point

Manufacturer PN: 2104A

UPC:  05400731189

Kendall Electric Inc PN: 2098248

Invoice Description:

2104A* 3M INSULATING AND SEALING COMPOUND SIZE A (3.46 OZ) 05400731189


SPEC SHEET

▸ See All in Resins & Compounds


How Can We Make This Page Better?

3M™ 7100003209 2104 Compound, 3.46 oz Container Size A/2-Part Pouch Container, Green, Liquid Form, Specific Gravity: Part A: 1.04/Part B: 1

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

3M™ Scotchcast™ Electrical Insulating Resin 2104 is a 2 part, liquid type, semi-flexible resin useful for providing permanent splice repair and protection. This polyurethane resin has a good wetting and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, potting, sealing, insulating, repairing and more.
3M™, 7100003209, Compound, Series: 2104, Size A/2-Part Pouch Container, 3.46 oz Container, Liquid Form, Composition: Part A: 35 to 50% Phthalic Acid, Di-C11-14-Branched Alkyl, Esters, C13-Rich, 15 to 35% Polymethylene Polyphenylene Isocyanate, Part B: 55 to 75% Polypropylene Glycol Glycerol Triether, 5 to 20% n, n-Di 2-HydroxypropylAniLine, 1 hr at 70 deg F, 20 hr at 20 deg F Curing, Green, Isocyanate Odor/Scent, 0 to 130 deg C, Part A: 1.04/Part B: 1 Specific Gravity, 230 deg F Part A, >=230 deg F Part B Flash Point

Specifications

 Application For permanent splice protection applications
 Brand Name 3M
 Color Green
 Curing Time 1 hr at 70 deg F, 20 hr at 20 deg F
 Flash Point 230 deg F Part A, >=230 deg F Part B
 Manufacturer Part Number 7100003209
 Odor Scent Isocyanate
 Series 2104
 Specific Gravity Part A: 1.04/Part B: 1
 Standards/Approvals RoHS Compliant|ASTM Approved
 Temperature Rating 0 to 130 deg C

Features

▪ 70 Shore A hardness
▪ Has 18 min gel time at 23 deg C (73 deg F)
▪ Useful for replacing or repairing the jacket on both single and multi-core power cables
▪ Rated for continuous use at 90deg C (194deg F) with an overload rating of 130deg C (266deg F)
▪ Elongates 98 Percent longer than its original size for easy insulation or wrapping
▪ Withstands a voltage rating of 1 kV or less
